Advent Commercial Fire System

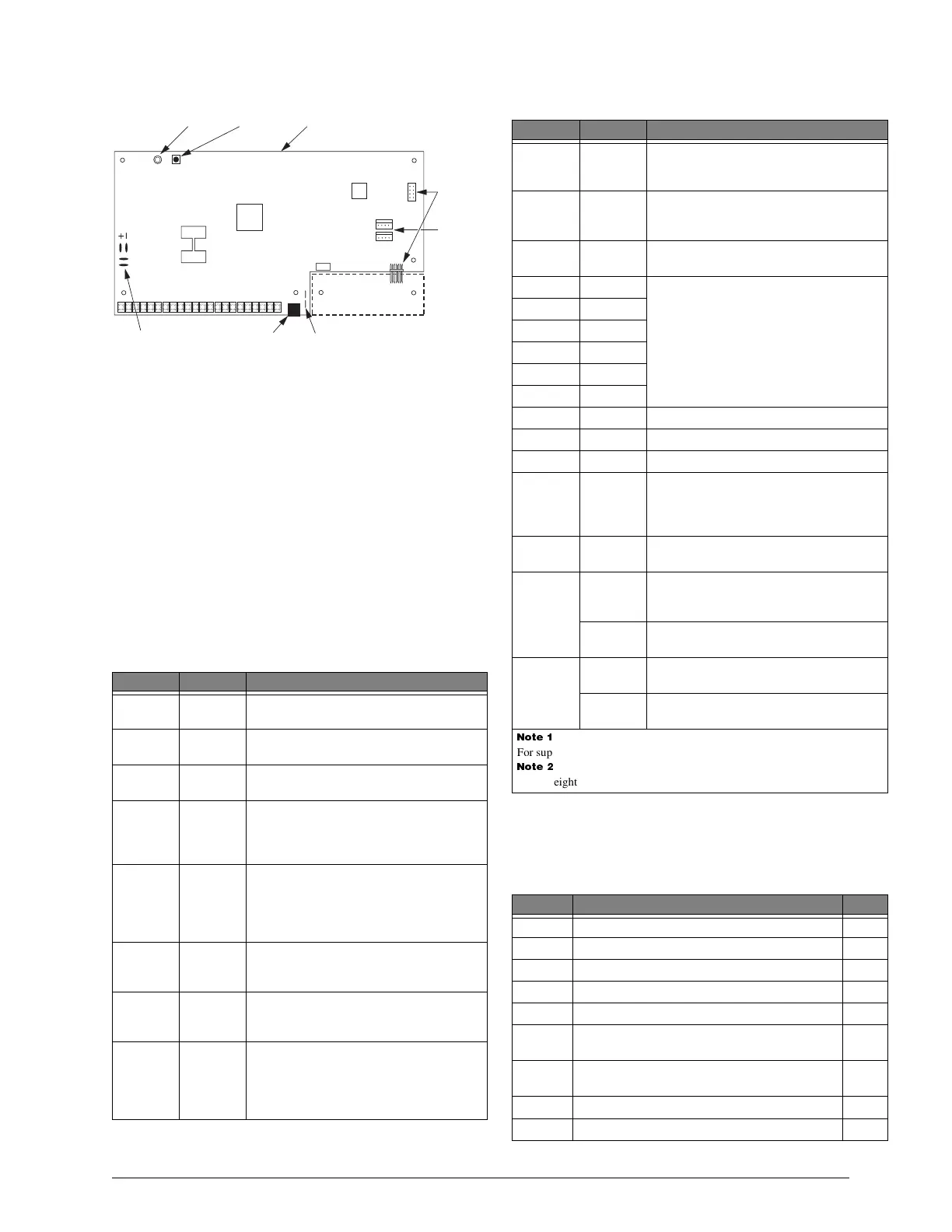

Figure 1. Circuit Board Main Components
Panel Terminals
Table 8 describes each of the control panel terminals. Typi-
cal system wiring diagrams are provided on the last page of
this manual.
Note
A) Class 2, Class 3, and power-limited fire alarm circuits
must be installed using FPL, FPLR, FPLP, or substitute
cable permitted by the National Electrical Code ANSI/
NFPA 70. Wire that extends beyond the cable jacket must
be separated from all other conductors by a minimum of
¼-inch or by a nonconductive barrier.
OR
(B) Class 2, Class 3, and power-limited fire alarm circuit
conductors must be installed as Class 1 or higher circuits.
Panel Accessory Kit
The components listed in Table 9 are included in the panel
accessory kit.
Table 8. Panel Terminal Strip Connections
Terminal Name Used for
1 24 VAC 24 VAC, 100 VA power transformer
connection.
2 24 VAC 24 VAC, 100 VA power transformer
connection.
3 GND Common ground connection for sirens,
general purpose outputs 1-6, etc.
4 +12 VDC Interior bell (+), and misc. DC power
supply, 12 VDC @ 5.0A maximum load
(includes Bus 1, Bus 2 headers, and
SnapCards) Current limited.
5INT
BELL
Negative (-) side of bell connection. 12
VDC @ 150mA (sink) maximum.
Positive (+) side to +12 VDC terminal 4.
Connect multiple interior bells in parallel.
See Note 1
6EXT
SIREN
RTN
Negative (-) external siren drive return
connection.
See Note 1
7EXT
SIREN
OUT
Positive (+) external siren drive output
connection. 30 VDC @ 2.5A maximum
load.
See Note 1
8EXT
SIREN IN
Positive (+) external siren drive input
connection. 30 VDC @ 2.5A or 70 VAC
@ 500 mA maximum. Normally
connected to +12 VDC terminal 4 or
other siren voltage source.
See Note 1
CONTROL PANEL
CIRCUIT BOARD
TERMINAL STRIP
8543G05B.DSF
OPTIONAL
EXPANSION
SNAPCARD
CONNECT-
ORS
OPTIONAL
EXPANSION SNAPCARD
SUPERBUS
CONNECT-
ORS (2)
INCOMING PHONE LINE TEST
LUGS (TIP/RING)
PHONE JACK
(DB-8 CORD)
POWER
LED
+
–
BACKUP
BATTERY
LUGS
MEMORY
CLEAR
BUTTON
9 VOICE
SIREN
One side of voice siren (speaker)
connection. Other side to VOICE SIREN
terminal 10.
See Note 2
10 VOICE
SIREN
One side of voice siren (speaker)
connection. Other side to VOICE SIREN
terminal 9.
See Note 2
11 ZONE
COM
Common return connection for general
purpose inputs 1–7, sensors, etc.
12 GPI/O 1 General purpose hardwire input. GPI/Os
1–6 can be programmed for use as a
hardwire contact input (2.0K ohm EOL
resistor) or a control relay driver output
(200 mA sink at 12 VDC maximum).
13 GPI/O 2
14 GPI/O 3
15 GPI/O 4
16 GPI/O 5
17 GPI/O 6
18 INPUT 7 Hardwire input 7.
19 Unused
20 GND Common ground
21 +SMOKE
(+12V DC
SW)
Positive (+) side of 2-wire, 12 VDC
smoke loop. (Smoke and heat sensor DC
power supply.) Switched 12 VDC @ 100
mA maximum (in alarm).
22 -SMOKE Negative (-) side of 2-wire, 12 VDC
smoke loop.
Backup
Battery 1
+RED Positive (+) side of panel backup battery
one. 12V @ 1.6A source maximum.
Source current limited.
-BLACK Negative (-) side of panel backup battery
one.
Backup
Battery 2
+RED Positive (+) side of panel backup battery
two. Source current limited.
-BLACK Negative (-) side of panel backup battery
two.
ÌiÊ£Ê
For supplementary use only.
ÌiÊÓ
Four to eight ohm maximum load between terminals 9 and 10.
Table 9. Panel Accessory Kit
Part No. Description Qty.
01-022 2K-ohm, ¼-watt EOL Resistor 9
17-101 220 MF, 35 V Non-polarized Capacitor 5
31-347 Fast-On Connector for battery cables 4
40-415 Self-tapping screws for mounting modules 18
40-577 Lock and keys for panel cabinet 1
40-582 6-32 x ¼ green self-tapping screw for ground
connection on lower-left board
1
40-588 Protective adhesive pads for side-mounted
SnapCards
2
49-442 DB-8 phone cord
1
49-462 SuperBus header cable 2
Table 8. Panel Terminal Strip Connections
Terminal Name Used for
