GE Alpha RT 32551 - Installation of the Column to the Wall; Attachment Holes

3 Installation
32551-IMG rev 6 GE Healthcare 19
3.2 INSTALLATION OF THE COLUMN TO THE WALL
3.2.1 Attachment holes
Two 10mm (3/8”) attachment bolts and wall plugs are used. Each bolt
should be able to take a load of 600 N (135 lbs). Lift up the column against
the wall and drill the holes like in figure 3.2, Wall attachment holes (Long /
short column version). Fix the enclosed plugs in the holes.

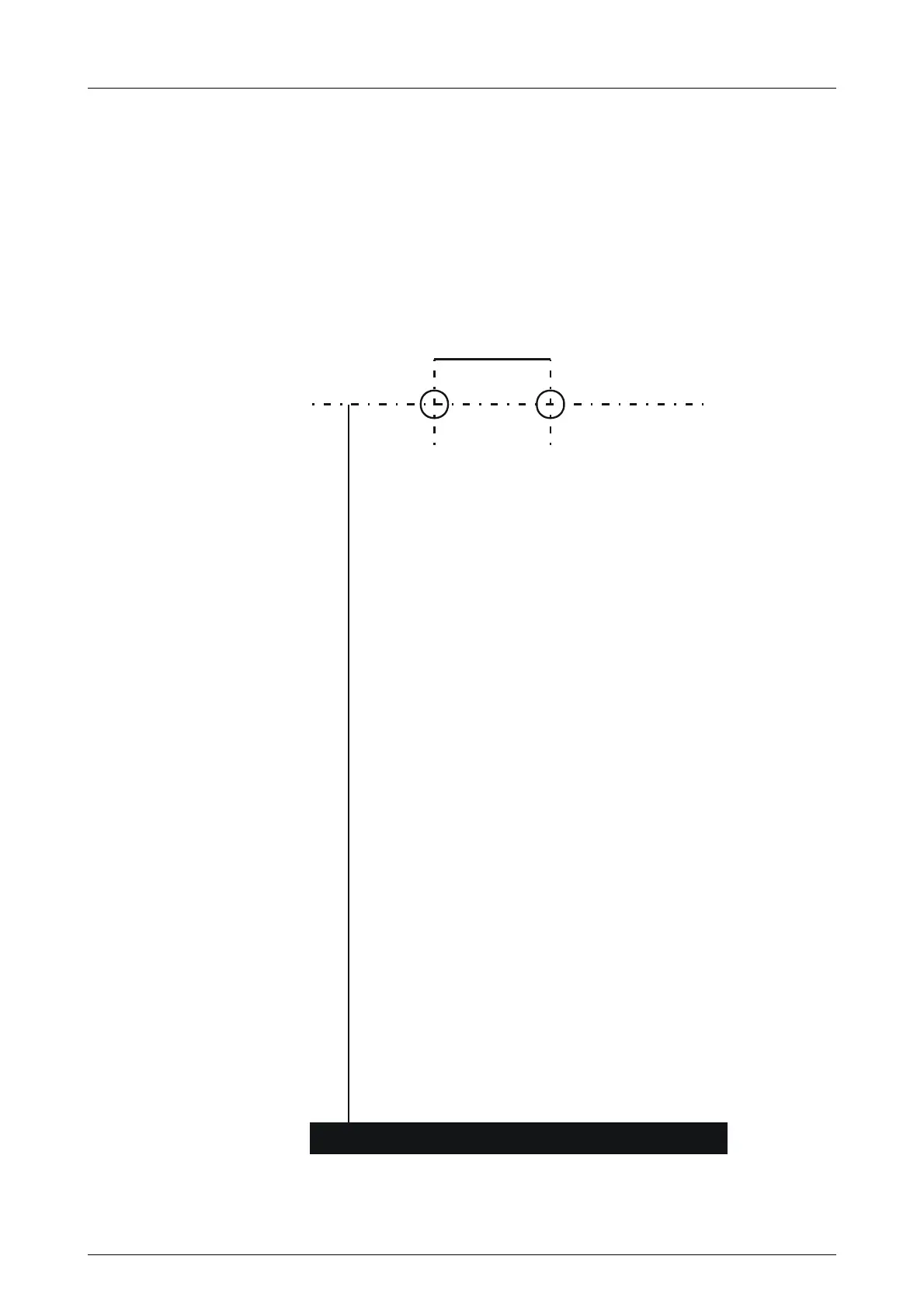

Fig 3.2. Wall attachment holes (Long / short column version)
16 5
/
32”
410 mm
2184 / 1969 mm 86 3/64” / 77 9/16” If no base plate, then subtract 14 mm (9/16 ”)
