GE Alpha RT 32551 - Removal of the Top Cover; Removal of the Bottom Cover

To Next Page

To Previous Page

4 Alpha RT softstart procedure

38 GE Healthcare 32551-IMG rev 6

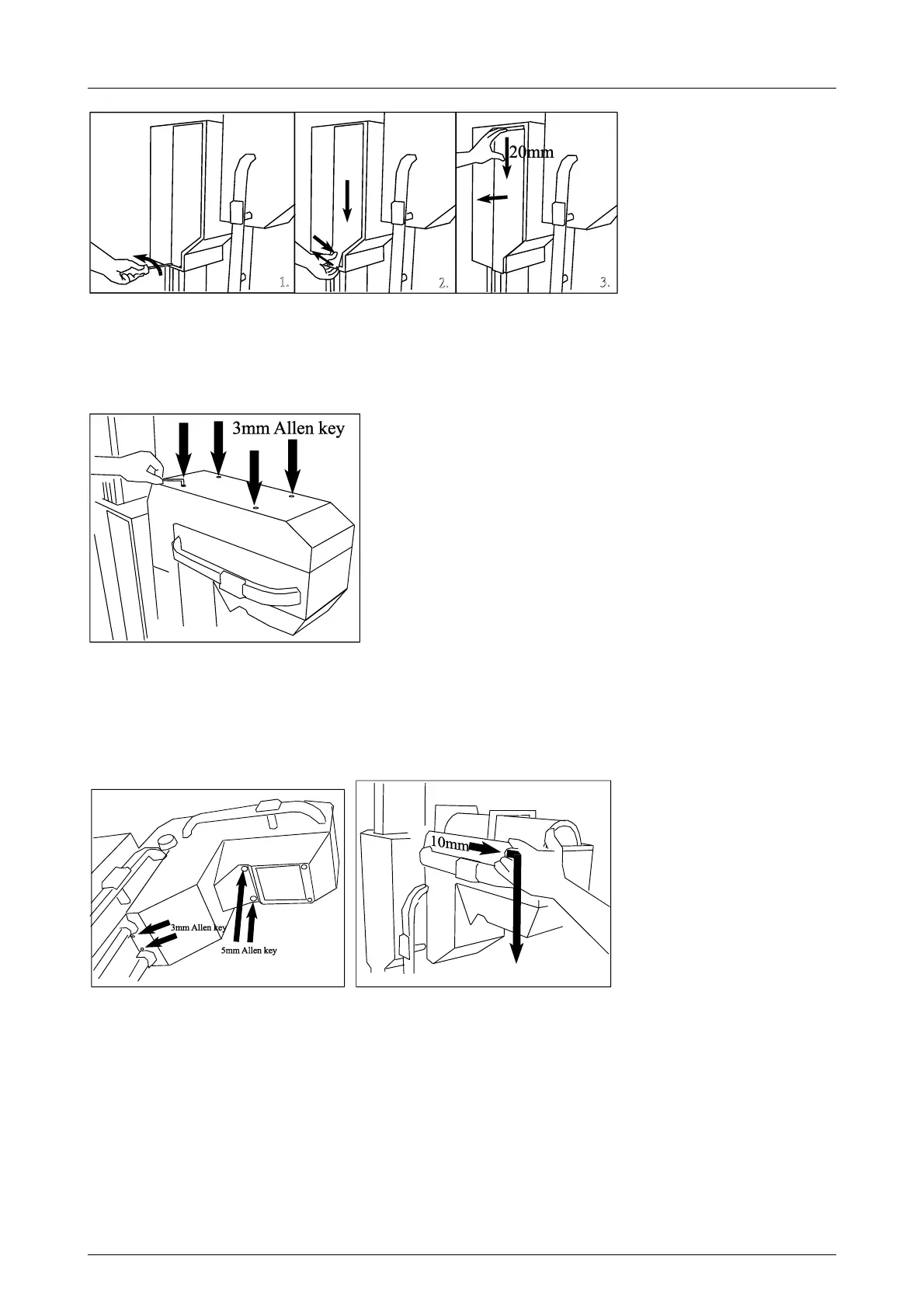

Fig 4.1. Removing the side covers

4.3 REMOVAL OF THE TOP COVER

1 Remove the top cover of the C-arm to expose the high voltage unit.

Fig 4.2. Removing the top cover by opening the four screws

4.4 REMOVAL OF THE BOTTOM COVER

1 Remove the bottom cover of the C-arm to expose the high voltage

unit.

Fig 4.3. Removing the bottom cover by opening the four screws
