GE HEALTHCARE 
D
IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Page 72 Section 6.0 - Component Dimensions

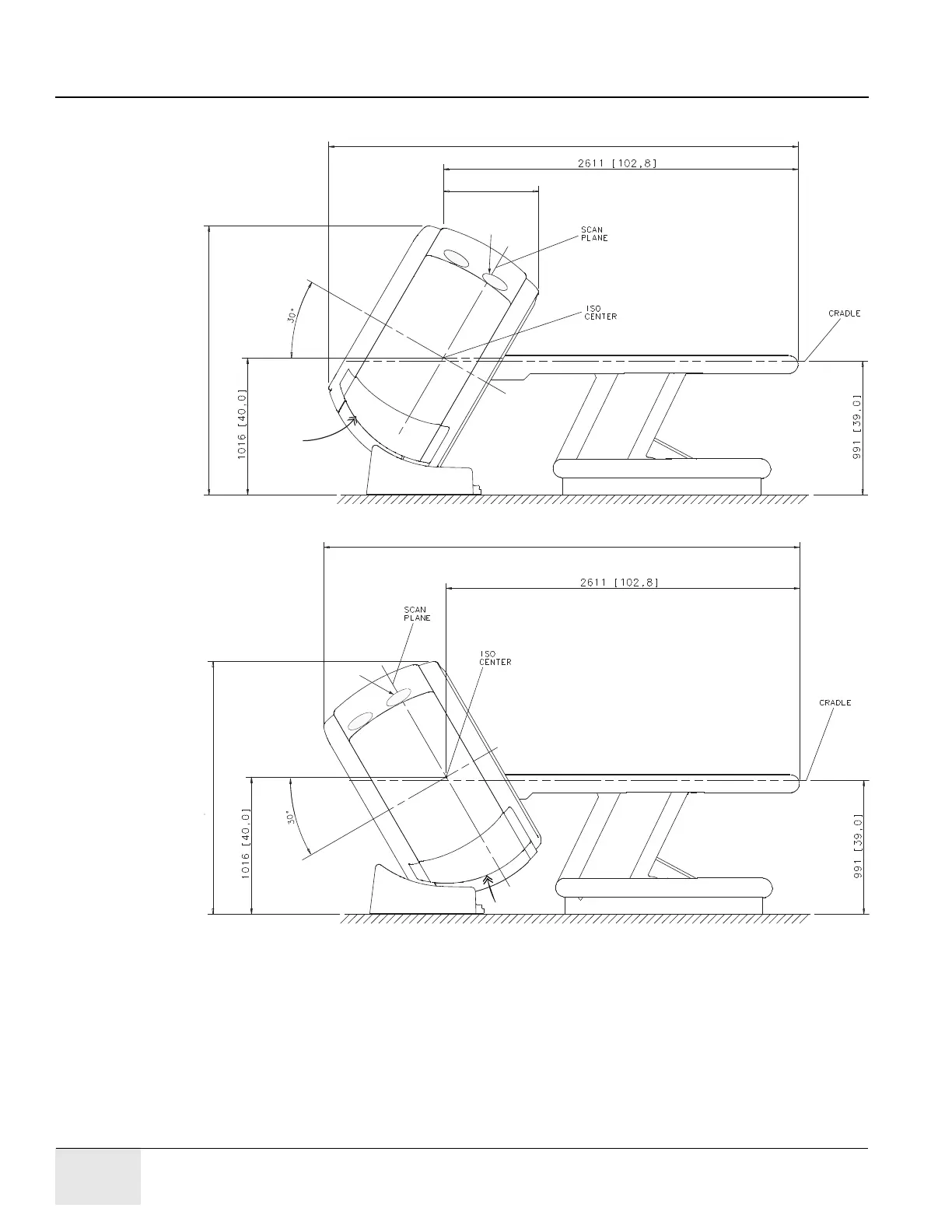

Figure 4-8 Gantry shown tilted +30º (top) and -30º (bottom) for BSD Elite/Edge/Excel with
HPower Table
AIR OUT
AIR IN
2074 [81,7]
3458 [136,1]
803 [31,6]
AIR OUT
AIR IN
1938 [76,3]
3582 [141]
