GE HEALTHCARE 
D
IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Chapter 4 - Room Planning Page 73
4 – Room Planning

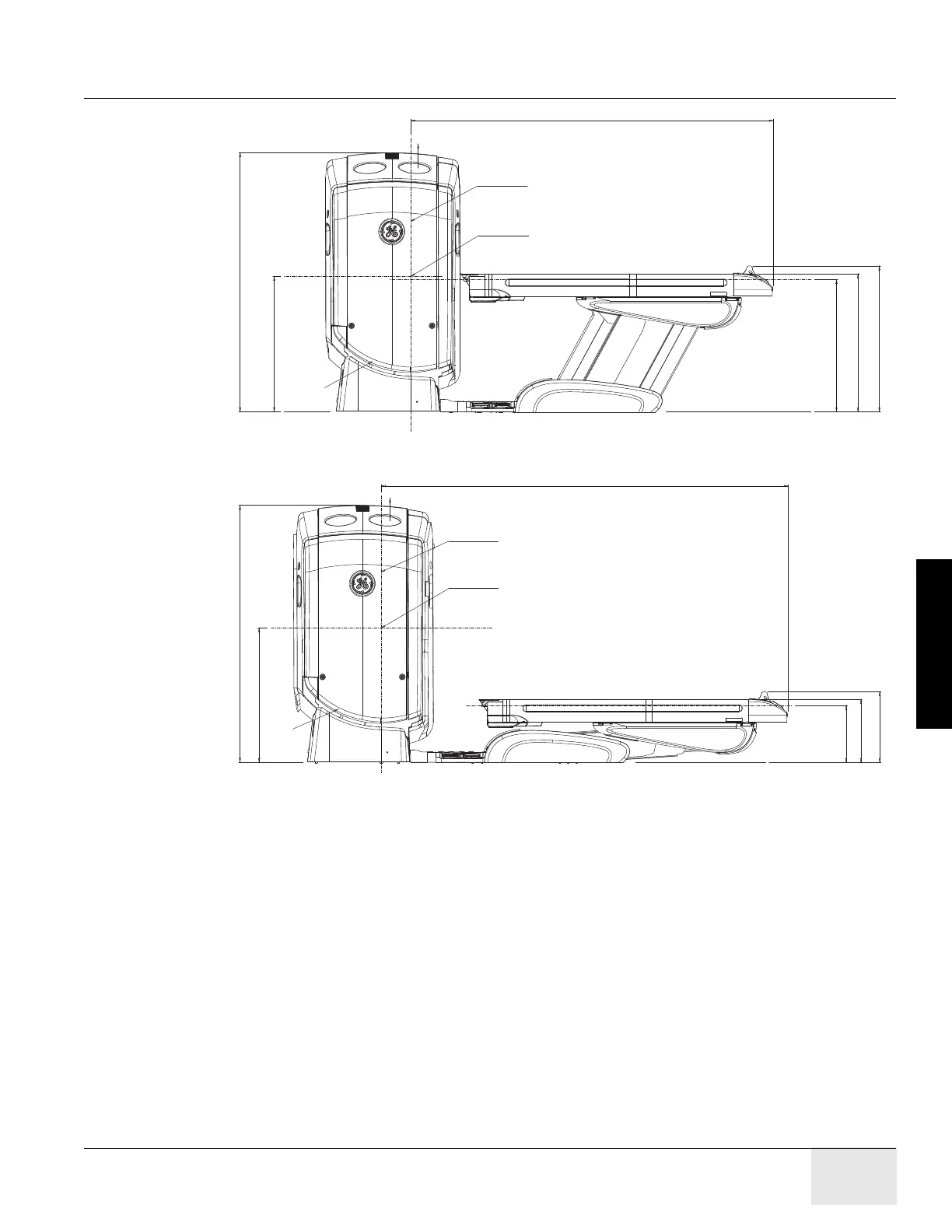

Figure 4-9 Table and Gantry (Side View) for BSD Elite (with GT1700 Table)
991 (3ft. 3in.)
CRADLE CENTER
ISO CENTER
SCAN PLANE
1016 (3ft. 4in.)
1036 (3ft. 4 3/4in)
2749
(9ft. 1/4in.)
1944 (6ft. 4 1/2in.)
1094 (3ft. 7 1/8in.)
AIR OUT
AIR IN
ISO CENTER
SCAN PLANE
430 (1ft. 4 7/8in.)
CRADLE CENTER
1016 (3ft. 4in.)
1944 (6ft. 4 1/2in.)
3120
(10ft. 2 7/8in.)
533 (1ft. 9in.)
475 (1ft. 6 3/4in.)
AIR OUT
AIR IN
