GE HEALTHCARE 
D
IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION
Page 74 Section 6.0 - Component Dimensions

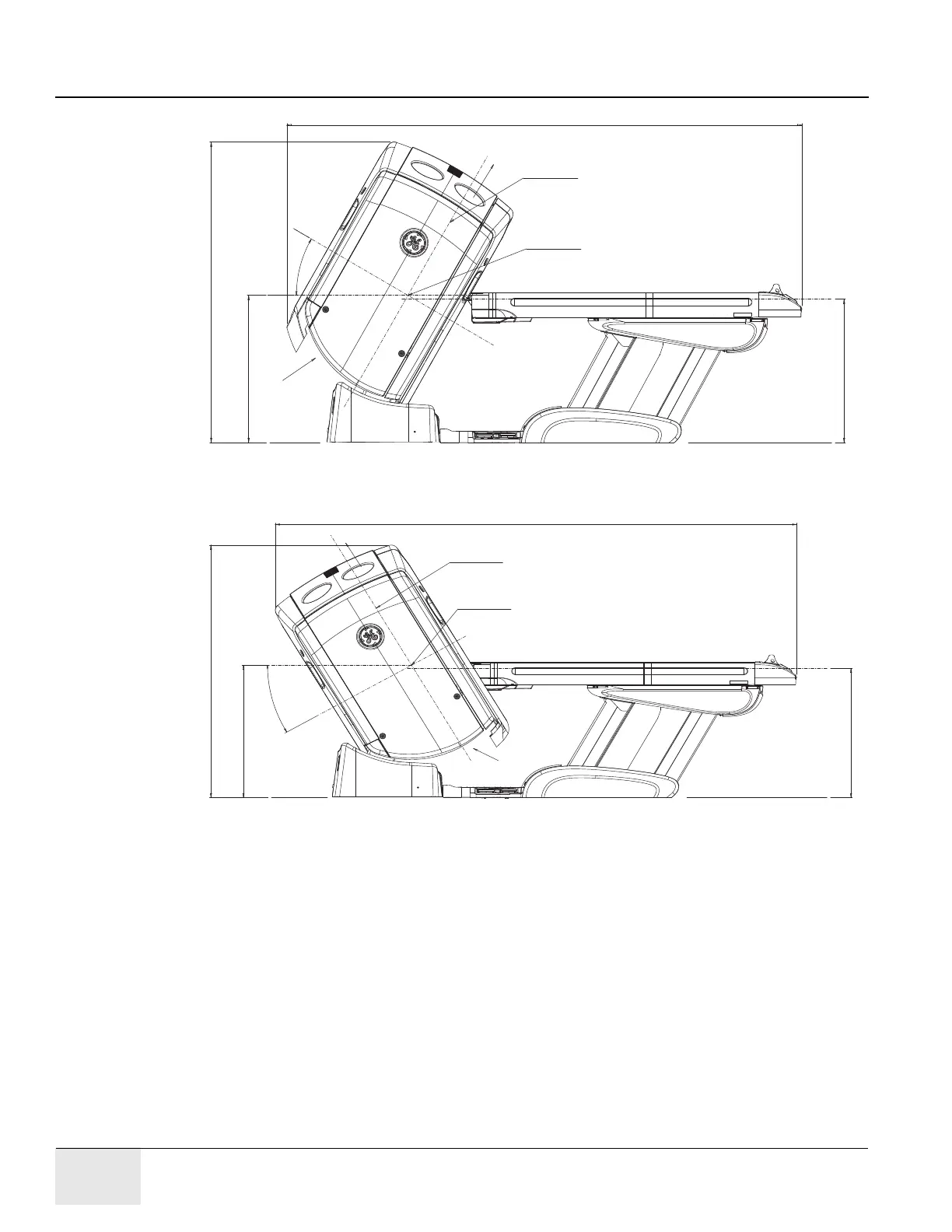

Figure 4-10 Gantry shown tilted +30º (top) and -30º (bottom) for BSD Elite (with GT1700 Table)
1016 (3ft. 4in.)
991 (3ft. 3in.)
CRADLE CENTE
R
30°
ISO CENTER
SCAN PLANE
2075 (6ft. 9 3/4in.)
3595
(11ft. 9 1/2in.)
AIR IN
AIR OUT
1016 (3ft. 4in.)
991 (3ft. 3in.)
30°
ISO CENTER
SCAN PLANE
CRADLE CENTER
3721
(12ft. 2 1/2in.)
1940 (6ft.4 3/8in.)
AIR IN
AIR OUT
