GE HEALTHCARE 

IRECTION 5141177-100, REVISION 14 BRIGHTSPEED ELITE, EDGE, EXCEL: PRE-INSTALLATION

Chapter 4 - Room Planning Page 93

4 – Room Planning

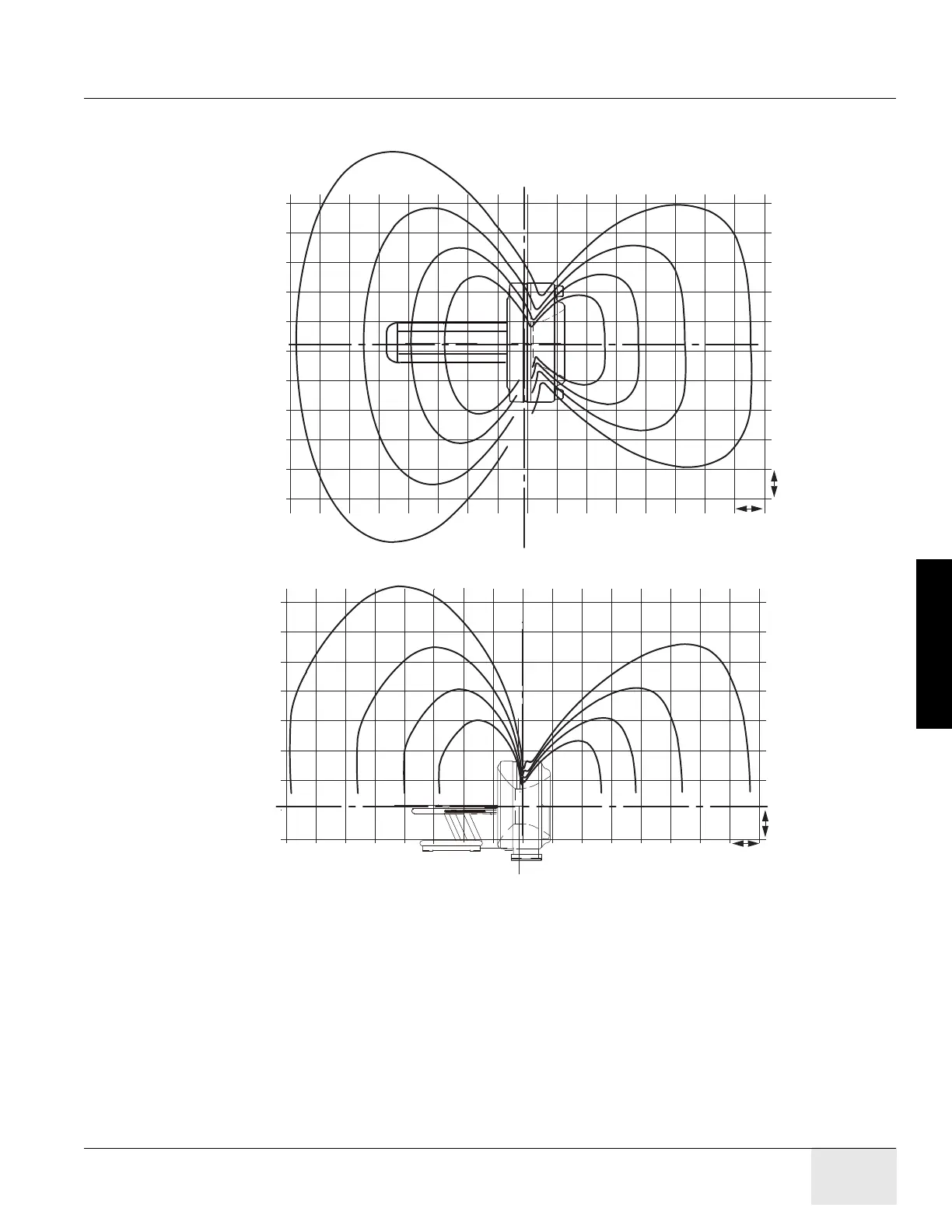

Figure 4-23 Typical Scatter Survey (Body Filter)

0.65 0.651.3 1.32.6 2.65.2 5.2

Technique:

140 kV

100mA

1 Sec

4 x 5.00mm

50cm

BODY SCATTER PHANTOM

0.65 0.651.3 1.32.6 2.65.2 5.2

Technique:

140 kV

100mA

1 Sec

4 x 5.00mm

50cm

BODY SCATTER PHANTOM

ISO–Contour Levels: 0.65, 1.3, 2.6 and 5.2 µGy/Scan
