4-4 170 Series Monitor Revision D
2003023-001
Setup Procedures: Loading Strip Chart Paper
4. Fan the pack of Z-fold paper on all sides to loosen any folds and to ensure
proper feed of the paper throughout the recorder.

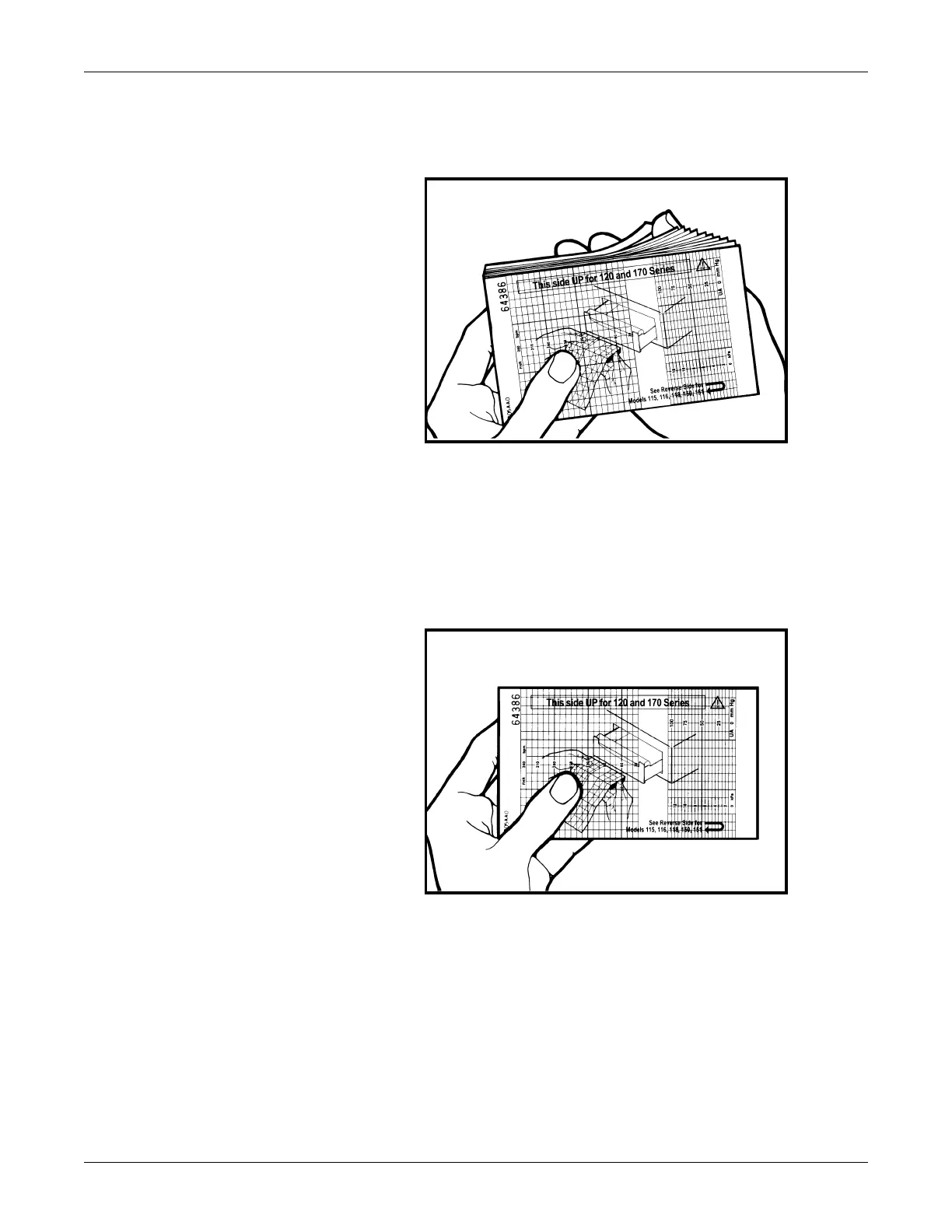

Figure 4-3. Fanning the Paper
NOTE: The black squares indicate the
end of the recorder paper. When the
black squares appear, the strip chart
recorder has approximately 20 minutes
of paper remaining, when running at a
speed of 3 cm/min.
5. Hold the package of paper so that:
the black squares are on the bottom of the pack; and
the GE Medical Systems Information Technologies name and page
numbers are on the left side of the pack.
Figure 4-4. Orienting the Paper
