4-6 170 Series Monitor Revision D
2003023-001
Setup Procedures: Loading Strip Chart Paper
8. Pull the paper leader taut at an angle between remaining pack and the paper
guides. The balance of the paper pack should stay flat in the drawer as shown in
Figure 4-7. (The paper guides are shown in Figure 4-8.)

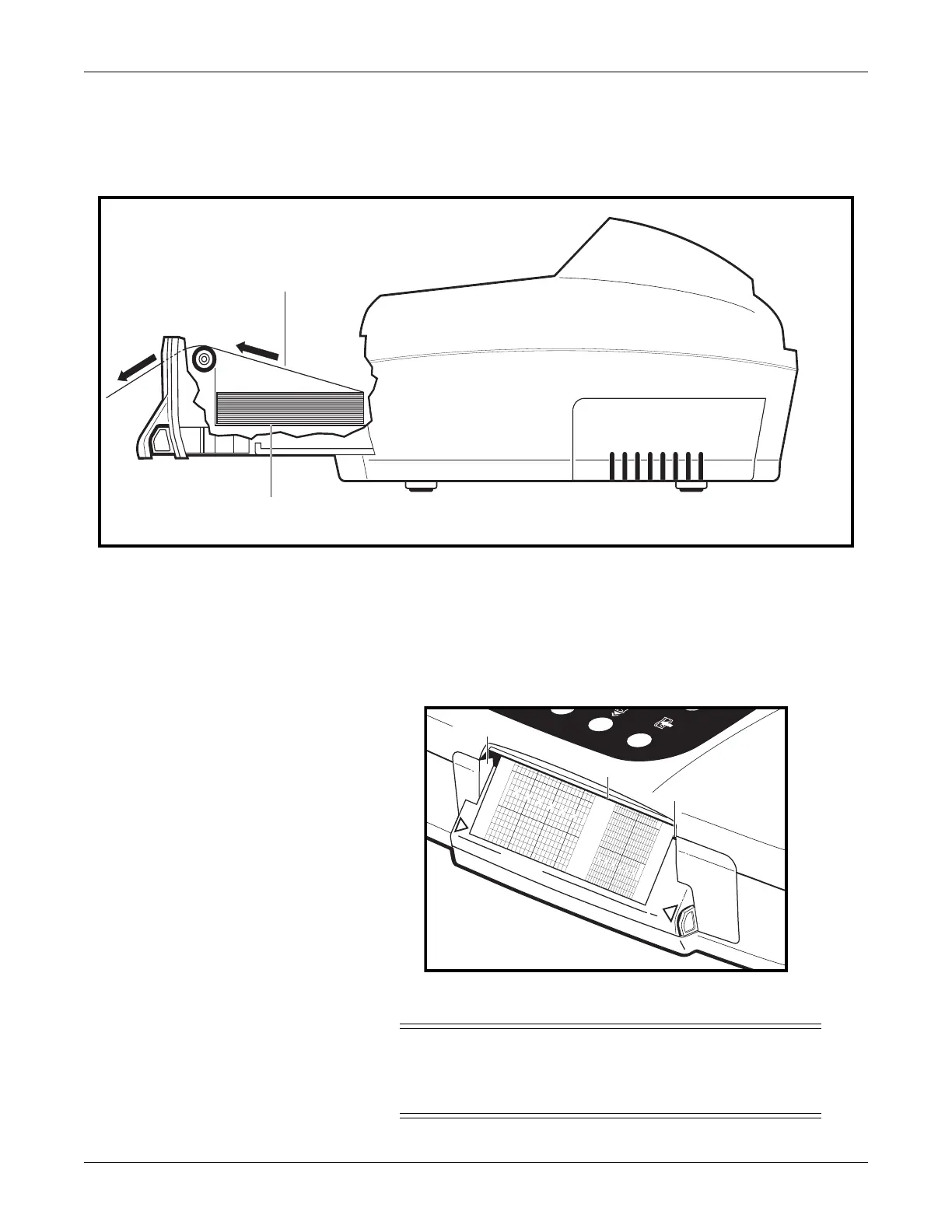

Figure 4-7. Paper Drawer Side Cutaway View
9. Slide the drawer closed by exerting even pressure on both sides of the drawer.
Avoid skewing the drawer in its tracks. (The pre-printed vertical lines on the
paper should be parallel to the printhead.) You will hear a click when the
drawer is locked in place.
Figure 4-8. Closing the Paper Drawer
IMPORTANT
PAPER—Paper should always be installed in the monitor. The
monitor runs a self-test routine each time it is powered on; part of
this routine includes a recorder test.
Pull paper
leader taut
Remaining paper
lays flat in drawer
430
5A
A
O
bpm
240
210
30
60
90
120
150
180
F
H
R
kP
a
0
U
A
12
10
8
4
2
6
Printhead
Paper Guide
Paper Guide
To Next Page
