D20 VME The D20 VME-compatible chassis (see Figure 3) can support one D20MX main board. When
using the D20MX in a VME chassis, the 0 V ground wire must be used.

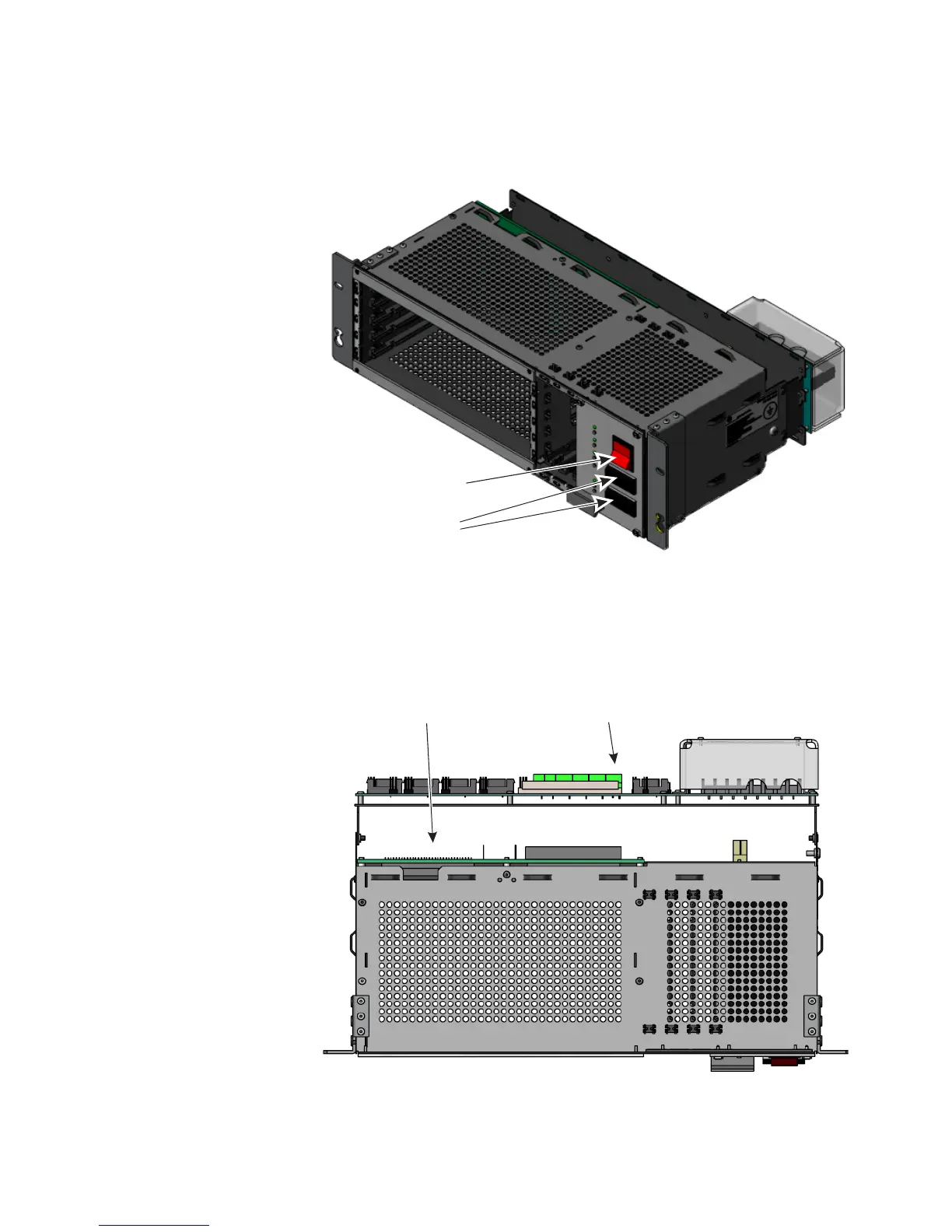

Figure 3: D20 VME chassis - power supply switch and fuses
This chassis (see Figure 4) contains the WESTERM D20M+ termination panel that is
mounted separately on the D20 chassis. The VME chassis kit includes a VME bus
backplane, called the WESTERM D20VME. The VME bus backplane connects to the
termination panel using a ribbon cable from Slot 1 on the bus backplane.
Figure 4: D20 VME chassis - VME bus backplane and D20M+ termination panel
D20 VME Chassis
Power Supply Switch
Power Supply Fuses
D20 VME Chassis
WESTERM D20VME -
VME Bus Backplane
WESTERM D20M+
Termination Panel
