D20MX INSTRUCTION MANUAL GE INFORMATION 91
D20MX Processor
Chapter 6: Using the D20MX
Using the D20MX
The D20MX operation can be monitored and accessed through:
• Operational status LEDs
• LAN port status LEDs
• Fiber optic status port LEDs
Front panel LEDs
Once the D20MX is powered up, the LED indicators on the front panel become active. The
indicators provide status information on the operation of the D20MX.

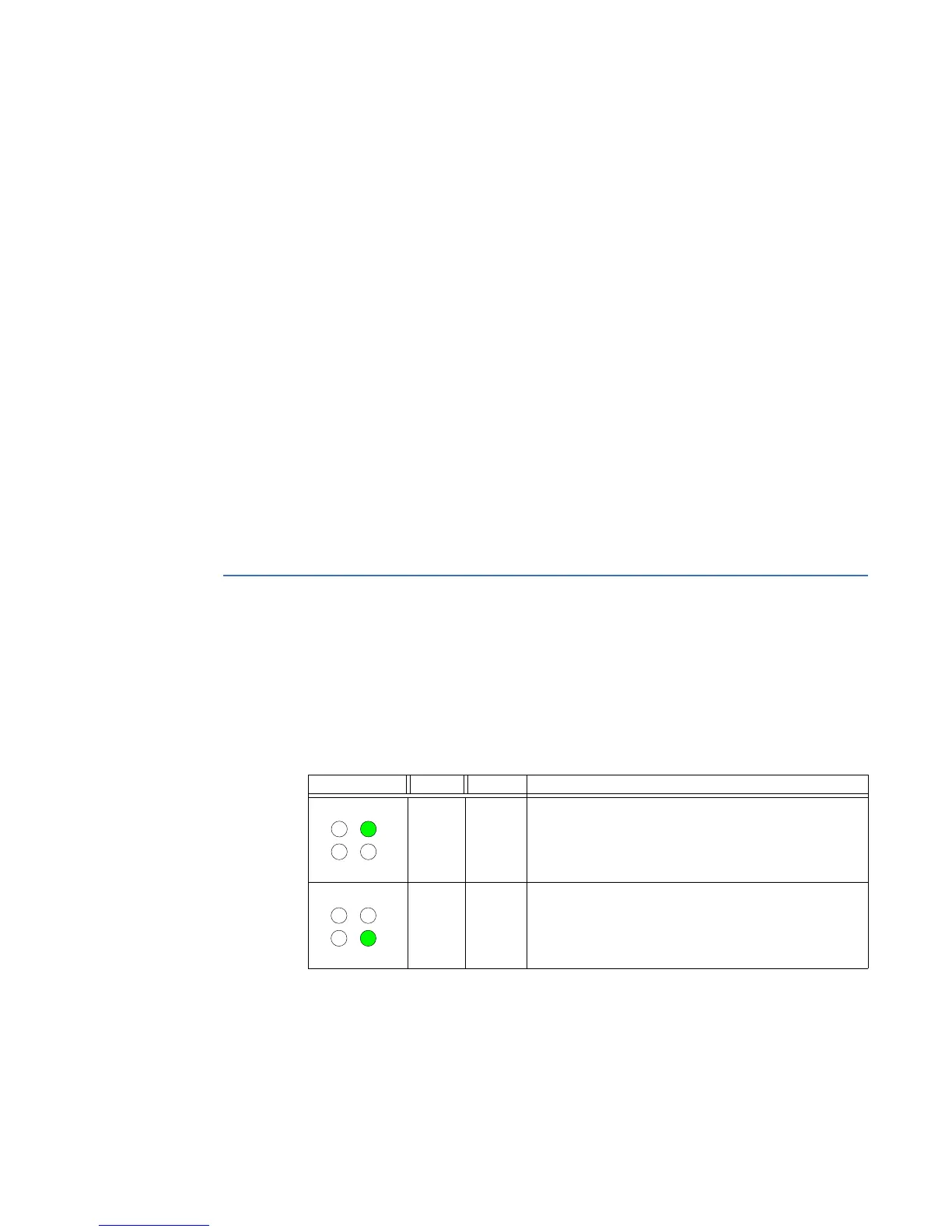

Operational status LEDs
The status LEDs indicate the unit’s operational status:
LED Display Label Color Status Description
PWR Green Power
Solid light when 5 V DC power is correctly supplied to the
processor board.
OFF when 5 V DC is not present.
RDY Green Ready
Flashes when Initialization (boot-up and self-diagnostics) of
the D20MX is complete and the unit is ready to process data.
