Switch position change

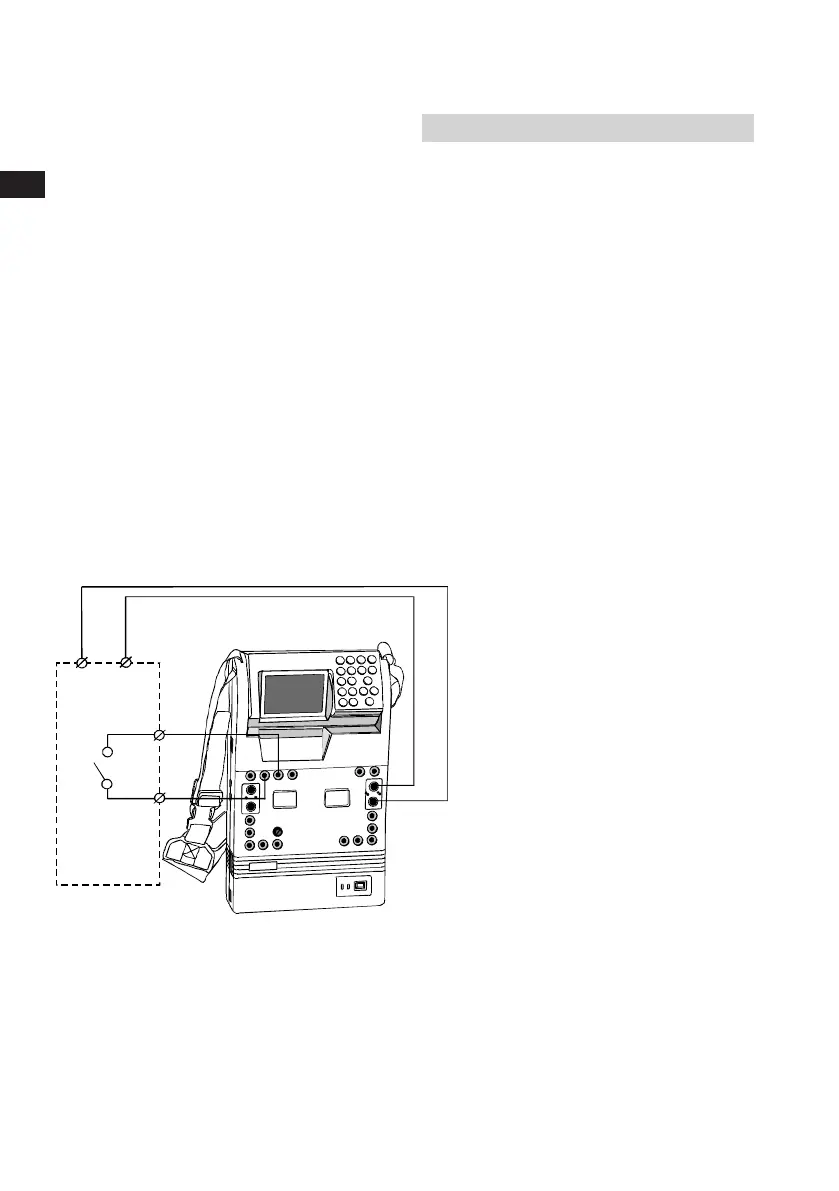

Connect the switch as indicated.
Select SWITCH in the measure menu.
Generate or simulate the appropriate
source signal from the MCX-II to
activate the switch. The measure
(upper) reading tracks the source
(lower) reading until the switch
position changes. This change will
immediately "freeze" the measure
reading indicating the actual switch
setting. Press the # button to reset.
The measure reading will track the
source reading again.
Make sure that NO or NC contacts are
potential free.
