GE Multilin F60 Feeder Protection System 4-19
4 HUMAN INTERFACES 4.2 FACEPLATE INTERFACE
4

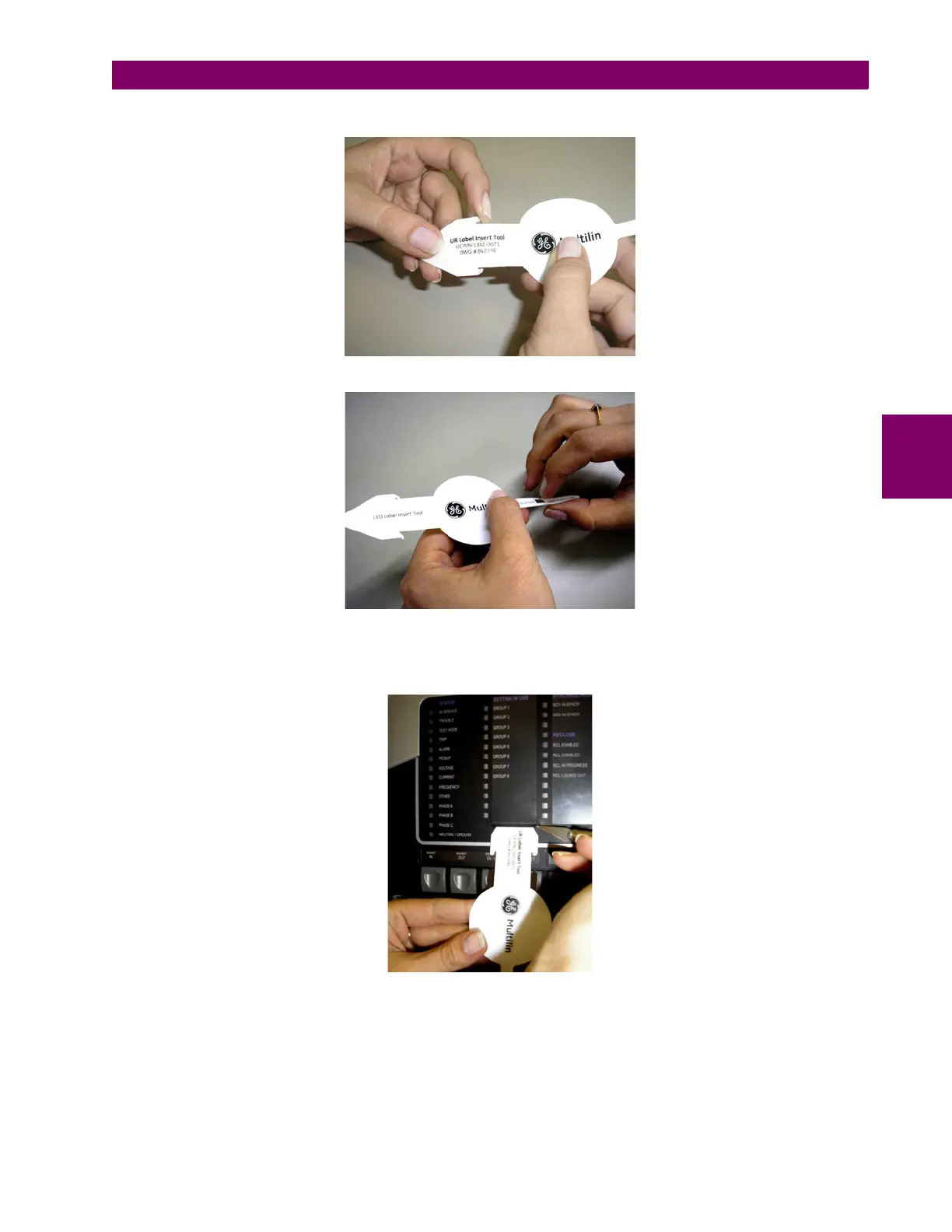

1. Bend the tabs at the left end of the tool upwards as shown below.
2. Bend the tab at the center of the tool tail as shown below.
The following procedure describes how to remove the LED labels from the F60 enhanced front panel and insert the custom
labels.
1. Use the knife to lift the LED label and slide the label tool underneath. Make sure the bent tabs are pointing away from
the relay.
