2-2 F60 Feeder Protection System GE Multilin
2.1 INTRODUCTION 2 PRODUCT DESCRIPTION
2

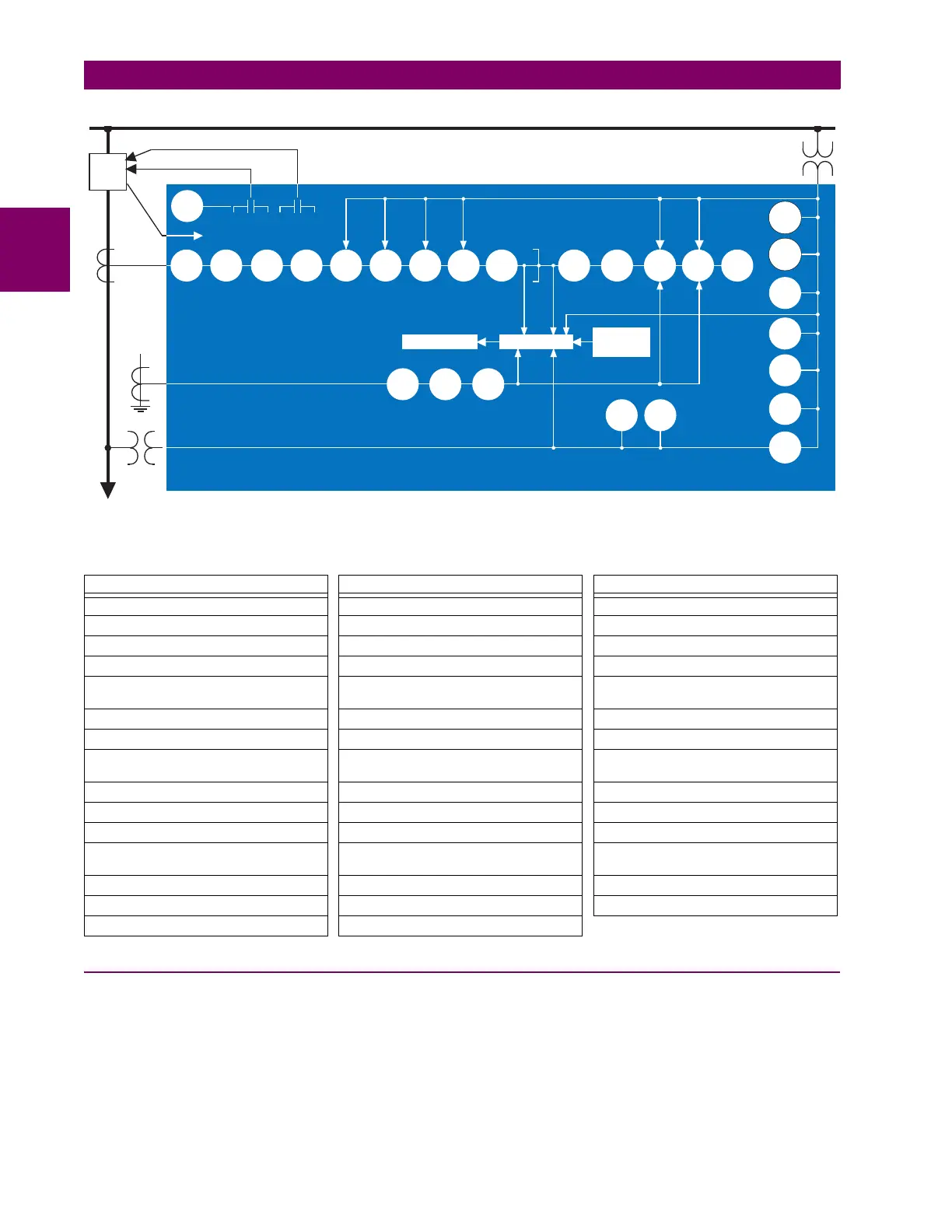

Figure 2–1: SINGLE LINE DIAGRAM
2.1.2 SECURITY
The following security features are available:
• Password security — Basic security present in the default offering of the product
• EnerVista security — Role-based access to various EnerVista software screens and configuration elements. The fea-
ture is available in the default offering of the product and only in the EnerVista software.
• CyberSentry security — Advanced security options available as a software option. When purchased, the options are
automatically enabled, and the default Password security and EnerVista security are disabled.
Table 2–2: OTHER DEVICE FUNCTIONS
FUNCTION FUNCTION FUNCTION
Breaker arcing current (I
2
t) Disconnect switches Oscillography
Breaker control Event recorder Phasor measurement unit
Breaker flashover Fault detector and fault report Setting groups (6)
Breaker restrike Fault locator Thermal overload protection
Broken conductor detection FlexElements™ (8) Time synchronization over IRIG-B or IEEE
1588
Cold load pickup FlexLogic equations Time synchronization over SNTP
Contact inputs (up to 96) High impedance fault detection (Hi-Z) Transducer inputs and outputs
Contact outputs (up to 64) IEC 60870-5-103 communications
(optional)
User-definable displays
Control pushbuttons IEC 61850 communications (optional) User-programmable LEDs
CyberSentry™ security Incipient cable fault detection User-programmable pushbuttons
Data logger Load encroachment User-programmable self-tests
Demand Metering: current, voltage, power, PF,
energy, frequency, harmonics, THD
Virtual inputs (64)
Digital counters (8) Modbus user map Virtual outputs (96)
Digital elements (48) Non-volatile latches VT fuse failure
Direct inputs and outputs (32) Non-volatile selector switch
832726A2.CDR
52
50P
50G
50_2
51G
51_2
79
CLOSE TRIP
50BF
51P/V
67P
67_2
32
50N
51N
67N/G
50NBF
81U
81O
27P
59P
59N
59X
59_2
27X
25
Monitoring
F60 Feeder Protection System
TM
FlexElement
Transducer
Inputs
Metering
32N
49
87RGF
To Next Page
