5.4 SYSTEM SETUP 5 SETTINGS
5

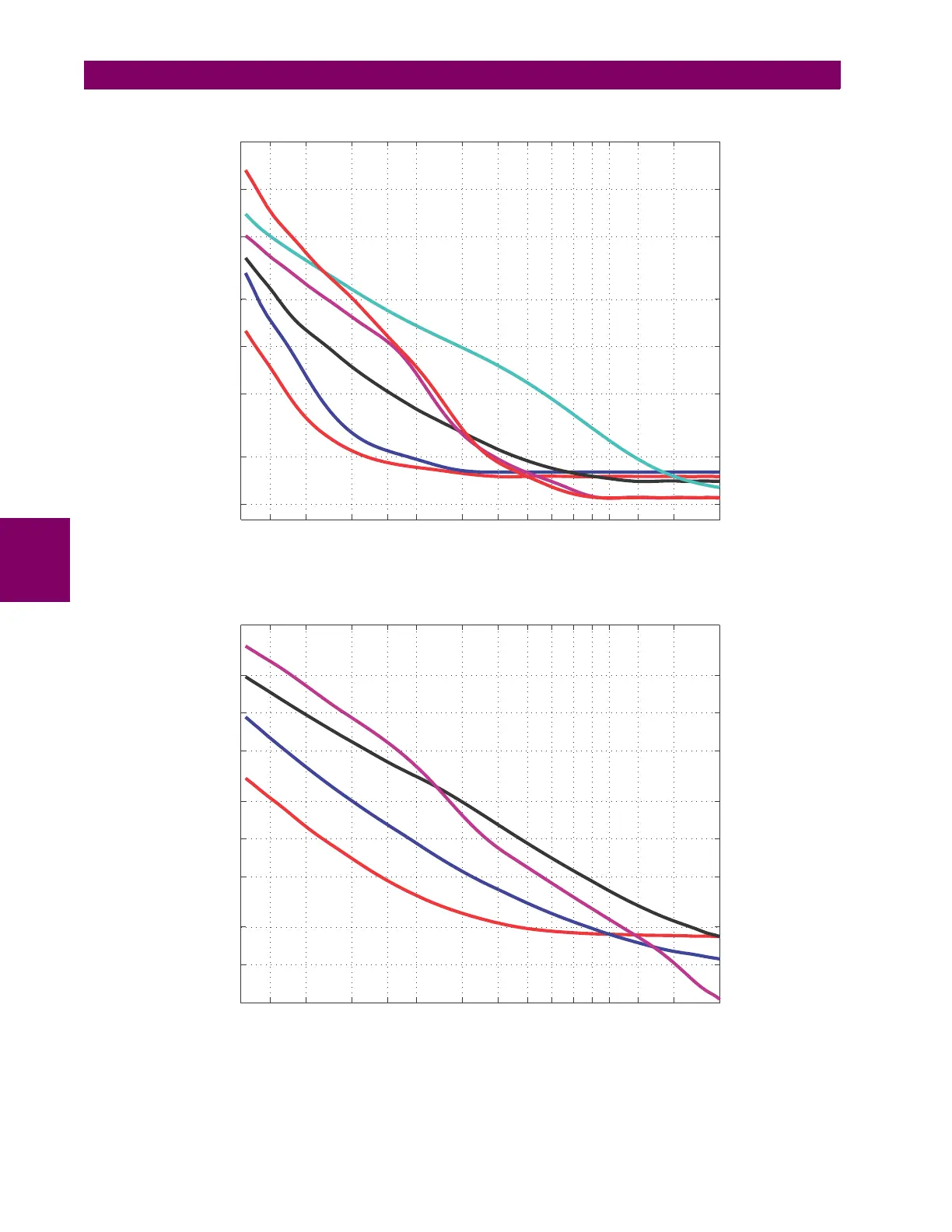

Figure 5–33: RECLOSER CURVES GE101 TO GE106
Figure 5–34: RECLOSER CURVES GE113, GE120, GE138 AND GE142
GE104
1 1.2 1.5 2 2.5 3 4 5 6 7 8 9 10 12 15 20
0.01
0.02
0.05
0.1
0.2
0.5
1
2
CURRENT (multiple of pickup)
TIME (sec)
GE101
GE102
GE103
GE106
GE105
842723A1.CDR
1 1.2 1.5 2 2.5 3 4 5 6 7 8 9 10 12 15 20
0.05
0.1
0.2
0.5
1
2
5
10
20
50
CURRENT (multiple of pickup)
TIME (sec)
GE113
GE142
GE138
GE120
842725A1.CDR
