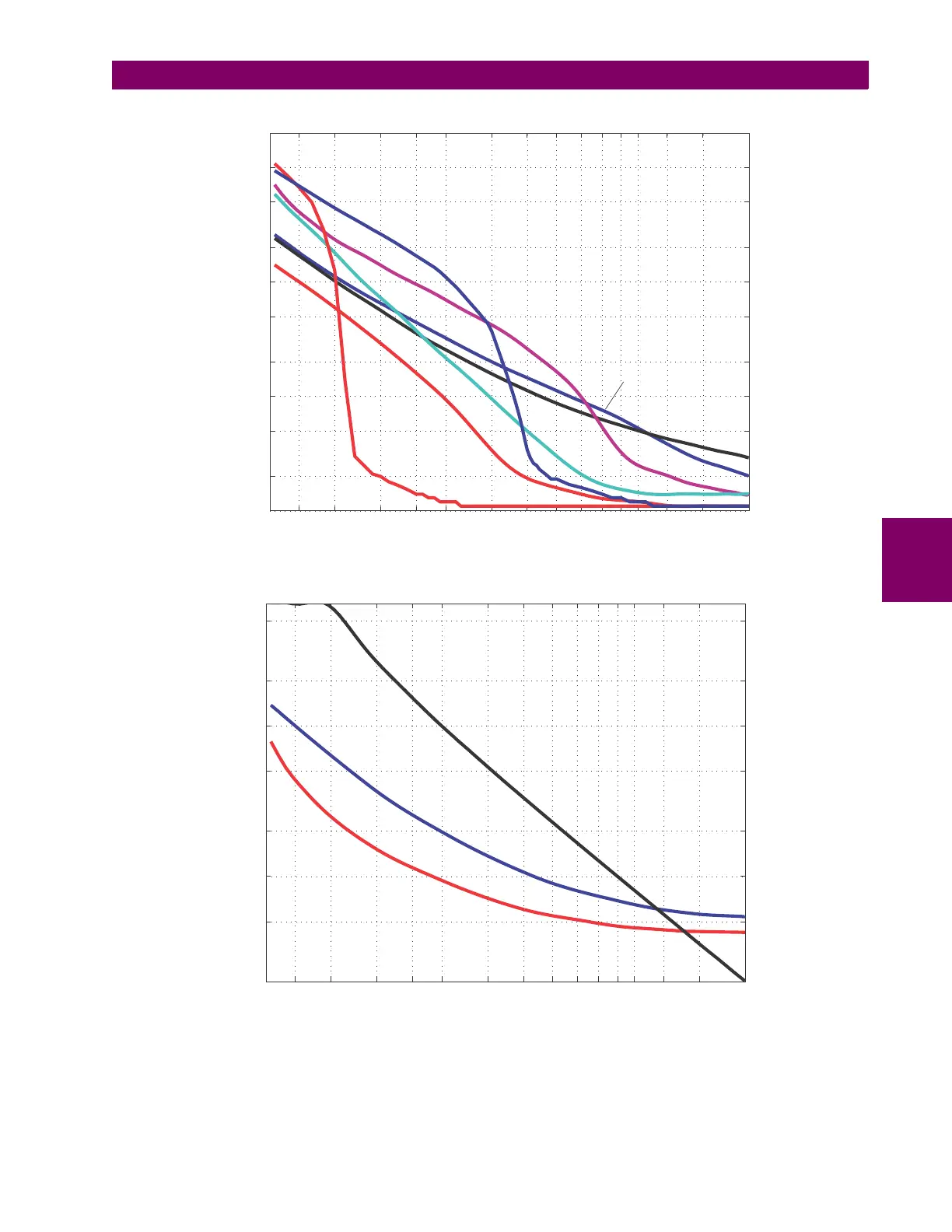

Figure 5–39: RECLOSER CURVES GE107, GE111, GE112, GE114, GE115, GE121, AND GE122
Figure 5–40: RECLOSER CURVES GE119, GE135, AND GE202
842724A1.CDR
1 1.2 1.5 2 2.5 3 4 5 6 7 8 9 10 12 15 20
0.01
0.02
0.05
0.1
0.2
0.5
1
2
5
10
20
CURRENT (multiple of pickup)
TIME (sec)
GE121
GE114
GE112
GE122
GE107
GE115
GE111
842727A1.CDR
1 1.2 1.5 2 2.5 3 4 5 6 7 8 9 10 12 15 20
0.2
0.5
1
2
5
10
20
50
CURRENT (multiple of pickup)
TIME (sec)
GE119
GE202
GE135
