5-30 Section 5-6 - ARP (Rear Panel)
Section 5-6
ARP (Rear Panel)
The LOGIQ™ P5 and LOGIQ™ A5 system has the I/O interfaces for peripherals in rear panel. ARP
(Arirang Rear Panel) assy has connectors for peripheral. Composite in/out and S-VHS in/out is for the
analog video interface for recording and playback of the VCR or DVD recorder. Audio in/out is for audio
interface for audio recording and audio playback of the VCR or DVD recorder. The ARP assy also has
a USB hub device for expending the USB ports which provide additional USB ports. The analog VGA
signal also provide display interface for external VGA monitor.

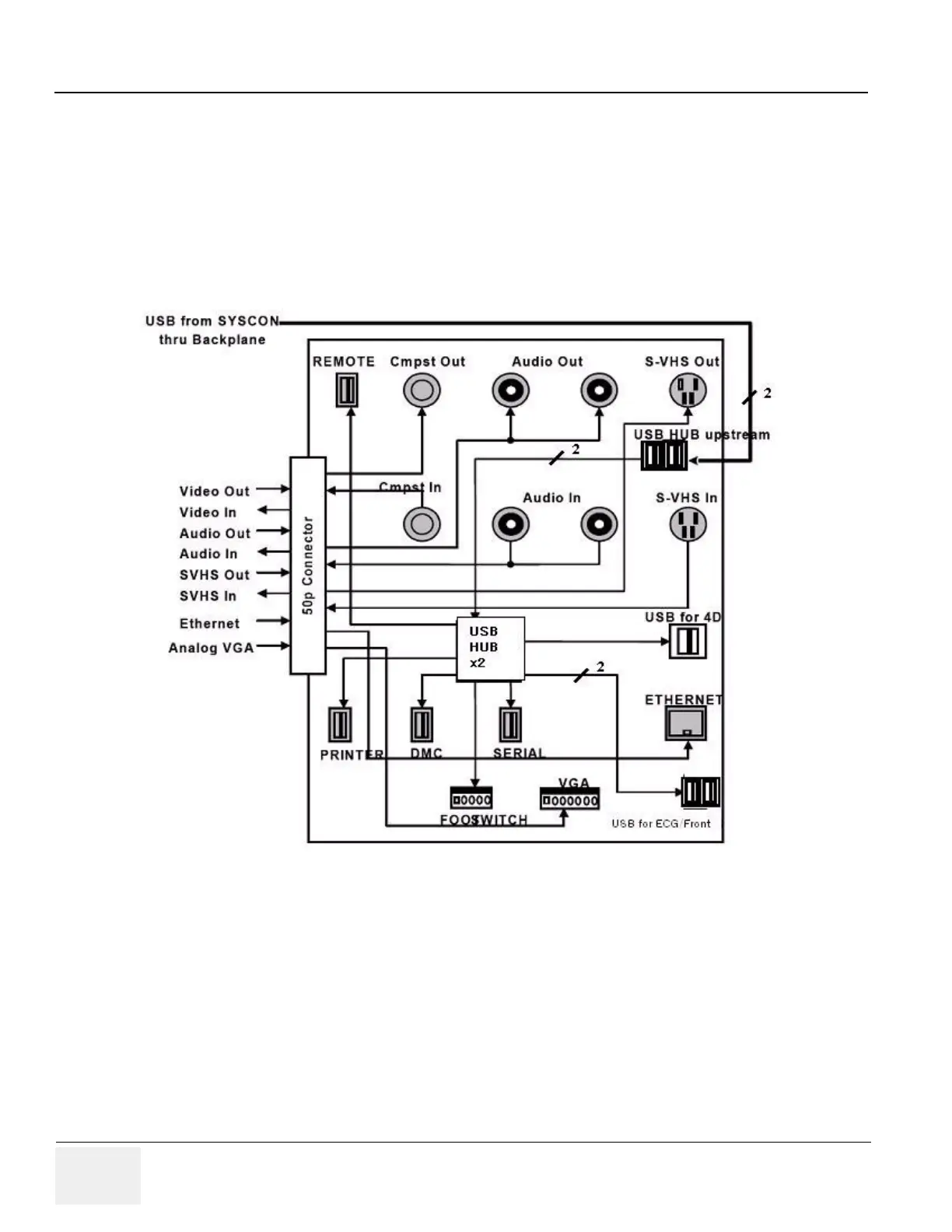

Figure 5-31 AEXP Block Diagram
