GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-208 Section 8-7 - Mechanical Option Installation instruction
8-7-14 Printer VCR DVD Fixture Top Installation (MD-800)
1.) Unscrew 2 existing screws from the top cover.
2.) Install Fixture DVD bot bracket on the top cover by screwing 2 screws(2327592, FH M4x14 YEL).
3.) Install Fixture Top bracket on the top cover by screwing 4 screws(2373565, FH M4x20).

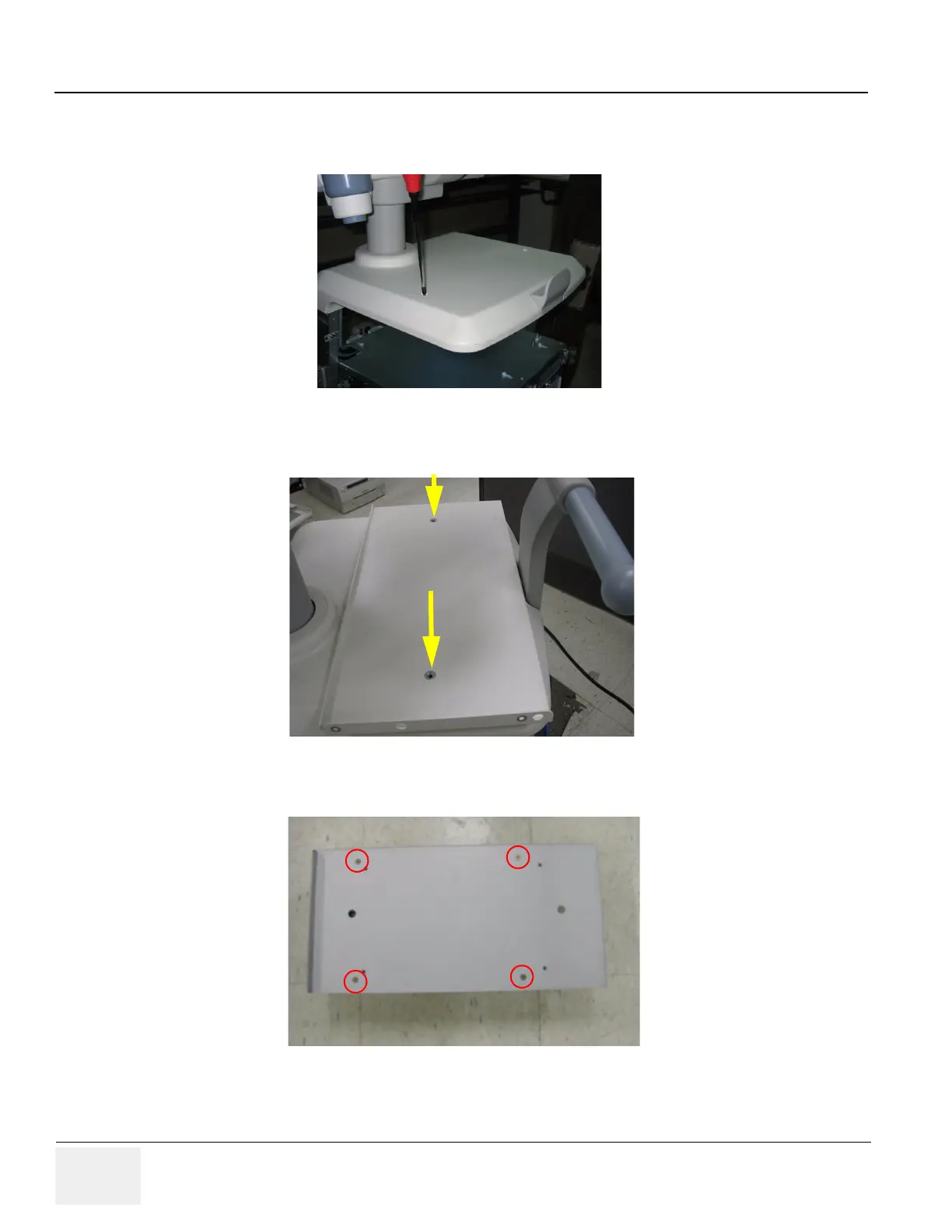

Figure 8-311 Printer VCR DVD Fixture Top installation (LQ MD800)
Figure 8-312 Printer VCR DVD Fixture installation top
Figure 8-313 Printer VCR DVD Fixture Top installation (LQ MD800)
To Next Page
