DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-186 Section 8-7 - Mechanical Option Installation instruction
8-7-6 BW Printer Fixture Keyboard installation (cont’d)
4.) Slide and place the BW printer with printer plate to the BW printer cover and screw 2 screws
(5178673, FH M4x6 WHT) (1-2) to fix it.
5.) Connect the Power Cable and USB Cable from the printer to the system and tie the cable properly.

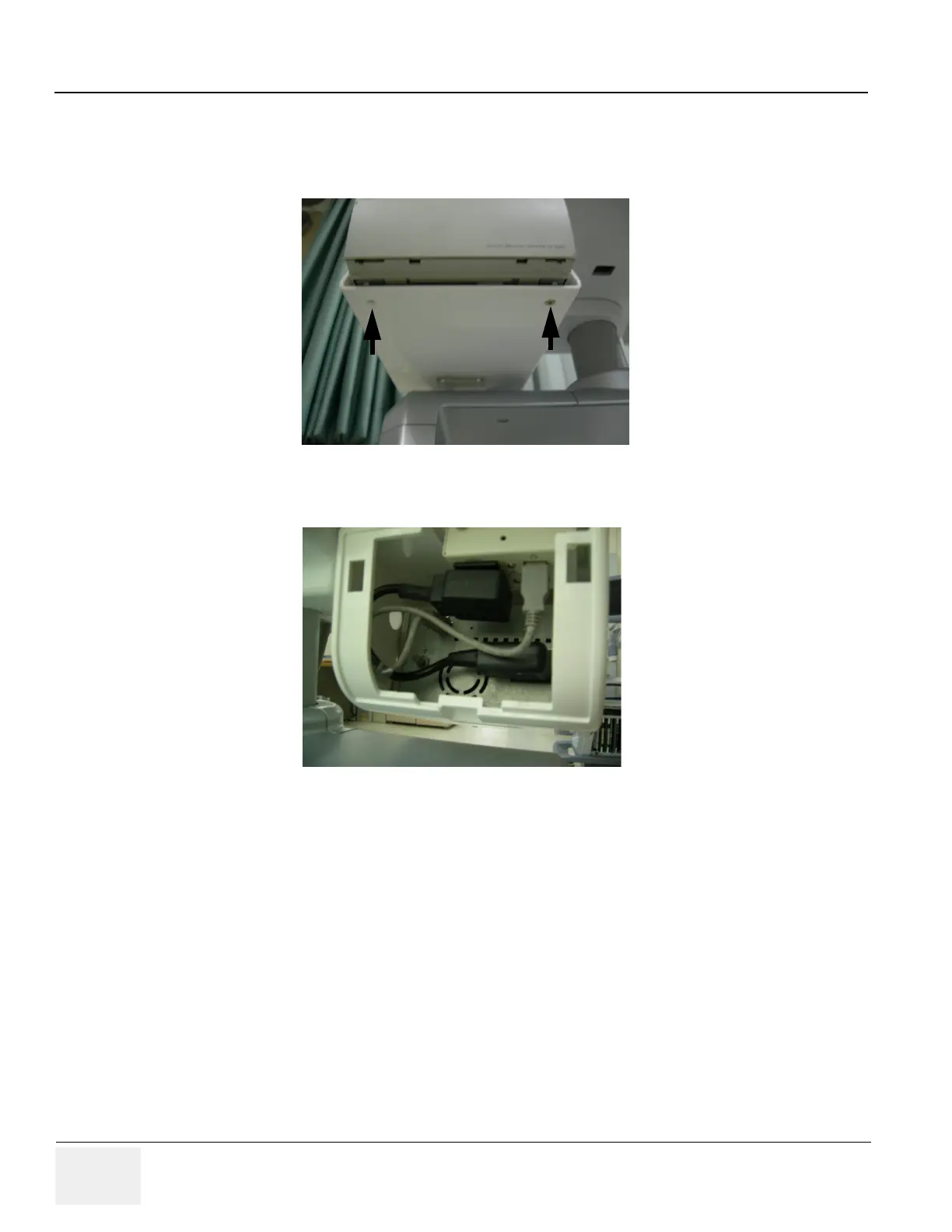

Figure 8-261 BW Printer Fixture Keyboard installation
Figure 8-262 BW Printer Fixture Keyboard installation
