8-2-11 Freeze key assy
8-2-11-1 Tools
• Common pilIips screwdrivers
8-2-11-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-11-3 Removal procedure
1.) Remove the Main Keyboard Assy. Refer to the 8-2-7 "Main Keyboard Assy" on page 8-37.
2.) Remove the 3 screws (1-3) and disconnect 1 cable.

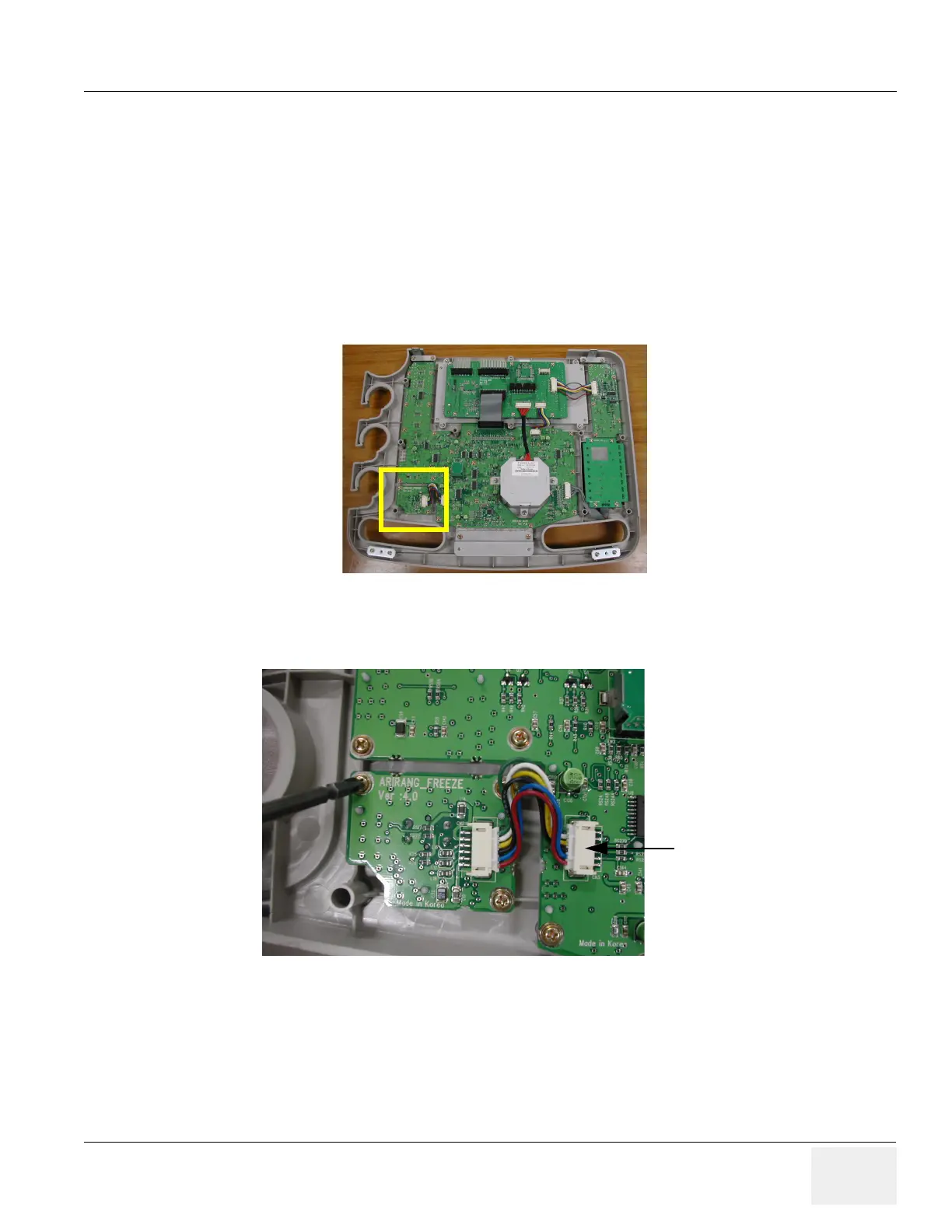

Figure 8-77 Freeze Key in the main keyboard
Figure 8-78 Freeze Key connector
