GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-179
8-7-1 Endo Probe Holder Installation
1.) Check out the 2 screw holes to be used to install Endo Probe Holder.
2.) Install Endo Probe holder on the bottom side of the Cable Arm Hook by screwing 2
screws(2159634, BH M4x10 WHT).

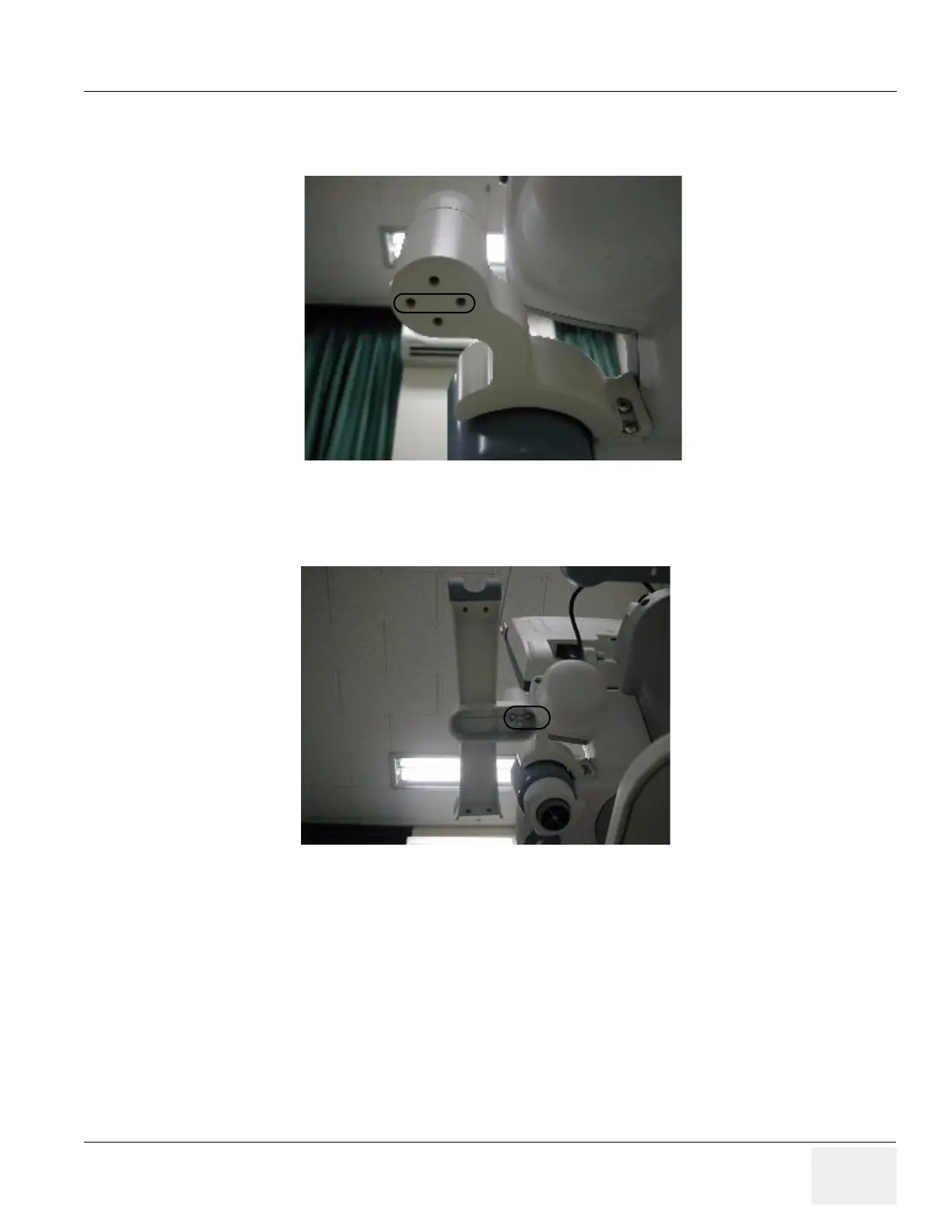

Figure 8-246 Endo Probe Holder Installation
Figure 8-247 Endo Probe Holder
