8-12 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-5 Monitor Assy
8-2-5-1 Tools
• Common pilIips screwdrivers
• Allen/Unbraco wrench
8-2-5-2 Preparations
• Shut down the system and switch off the main breaker.
• Maneuver control console to a suitable position for removing the monitor.
8-2-5-3 Removal procedure
1.) Detach the monitor assy from arm.
- Open monitor cable cover
- Unscrew a screw of the power connector fixture bracket
- Unplug the power plug and DVI connector
- Flip down the monitor
- Unscrew the 2 hexa screw of the monitor hinge
While unscrew the hinge hexa screw from the arm, keep hold the monitor to prevent drop down.
2.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-5-4 Mounting Procedure
Install the new parts in the reverse order of removal

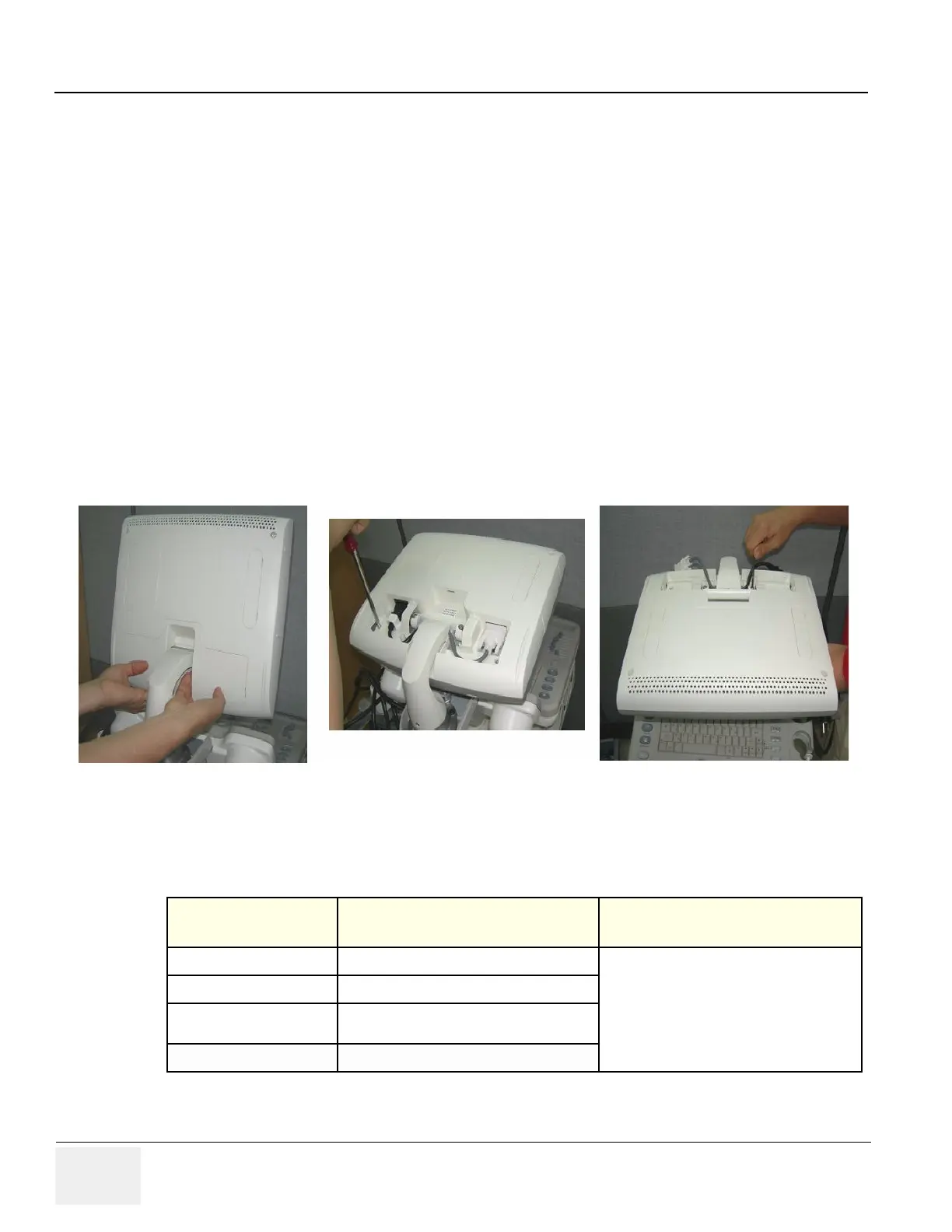

Figure 8-15 Disassemble Monitor from STD arm
Table 8-6 Functional Tests
Service Manual
Section Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-5. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-6-1
15" LCDMON II Assy & LCD Panel with filter
Function Validation Procedure
Section 10-5-2
Functional Checks (See Also Chapter 4)
