DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 5-11 - RFS (Service For Request) 5-53
5-11-2 System Checkout Procedure (cont’d)
All bold fields should be filled
7.) Device Name and CRM No are pre-populated and can not be changed.
8.) Verify that “Send” button is enabled.
9.) Select Continent and Country
10.)Put City, State, and Institution
11.)Select “Product” for the Enterprise.
12.)If Proxy needs to be configured, select “Enable” for the Proxy filed and input IP address and Port
number.
13.)Press “Submit Changes”. “Please Wait” message is displayed while the system is checking out.
Figure 5-53
14.)Wait until following screen displays. (Figure 5-54)
15.)Configuration is complete.
16.)Close the Service Platform.

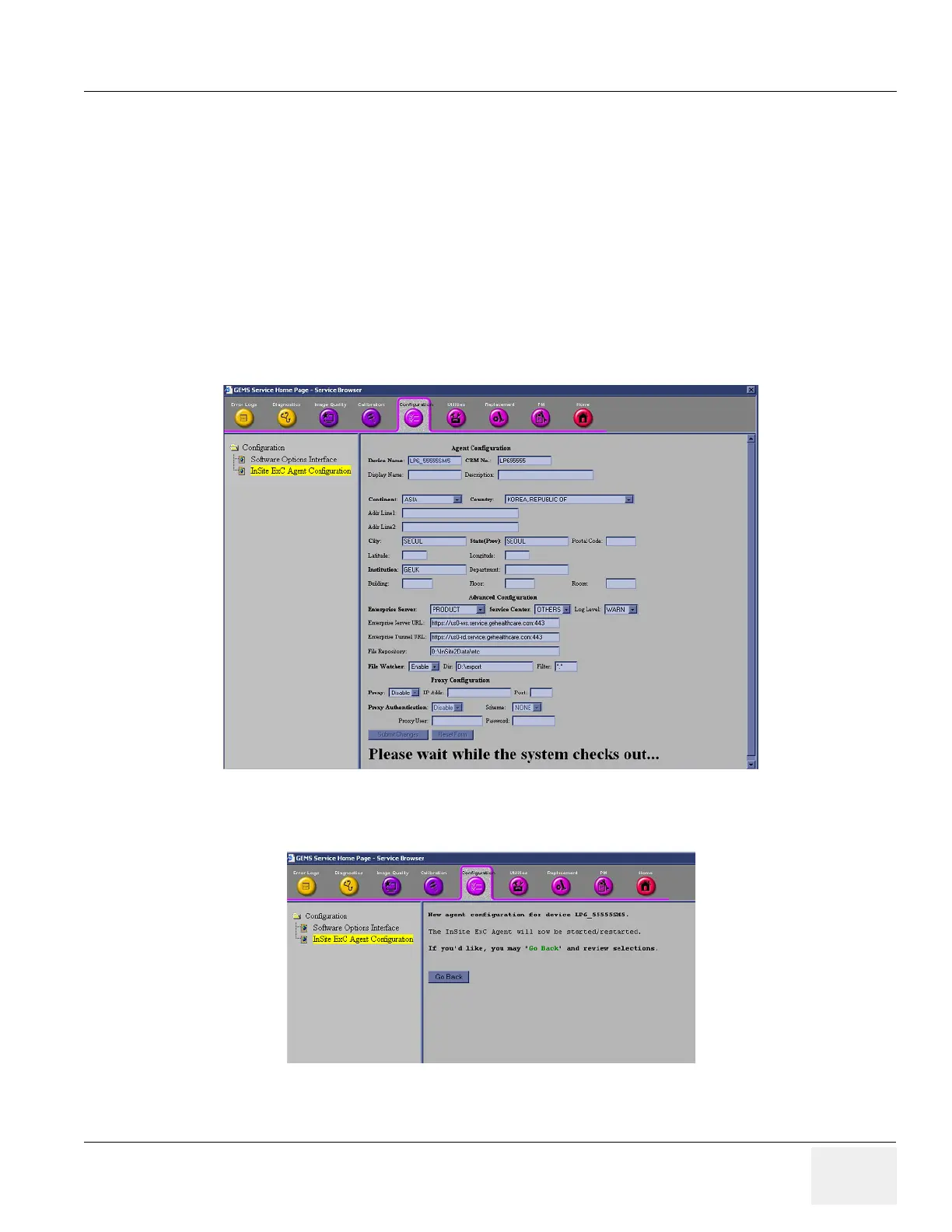

Figure 5-53 Please Wait
Figure 5-54 Configuration done
