GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-209
8-7-14 Printer VCR DVD Fixture Top Installation (MD-800) (cont’d)
4.) Install DVD recorder to the base bracket by screwing 2 screws(2159633, BH M4x8 WHT) on each
side.
5.) Connect the USB cable and power cable from the DVD to the system.
6.) Connect the cables to the system on the rear panel.

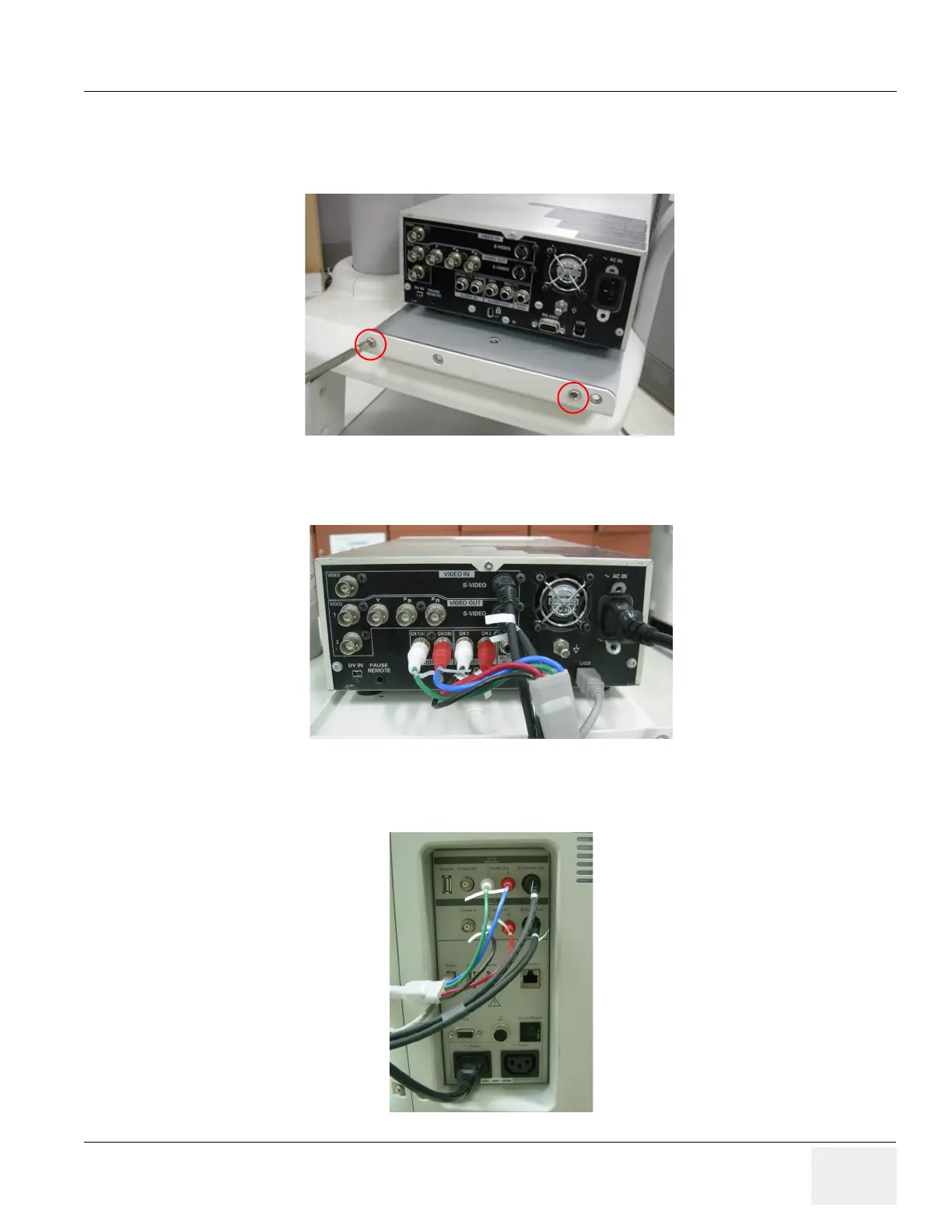

Figure 8-314 Printer VCR DVD Fixture Top installation (LQ MD800)
Figure 8-315 Printer VCR DVD Fixture Top installation (LQ MD800)
Figure 8-316 Printer VCR DVD Fixture Top installation (LQ MD800)
To Next Page
