DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-14 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-3 Removal procedure (cont’d)
3.) Disconnect power cable and DVI cable.
4.) Unscrew 1 screw (2329677, TAP M4X16) to remove the Fold cover.
5.) Unscrew 2 screws (2159634, BH M4x10 WHT) to remove the Cable clamp.

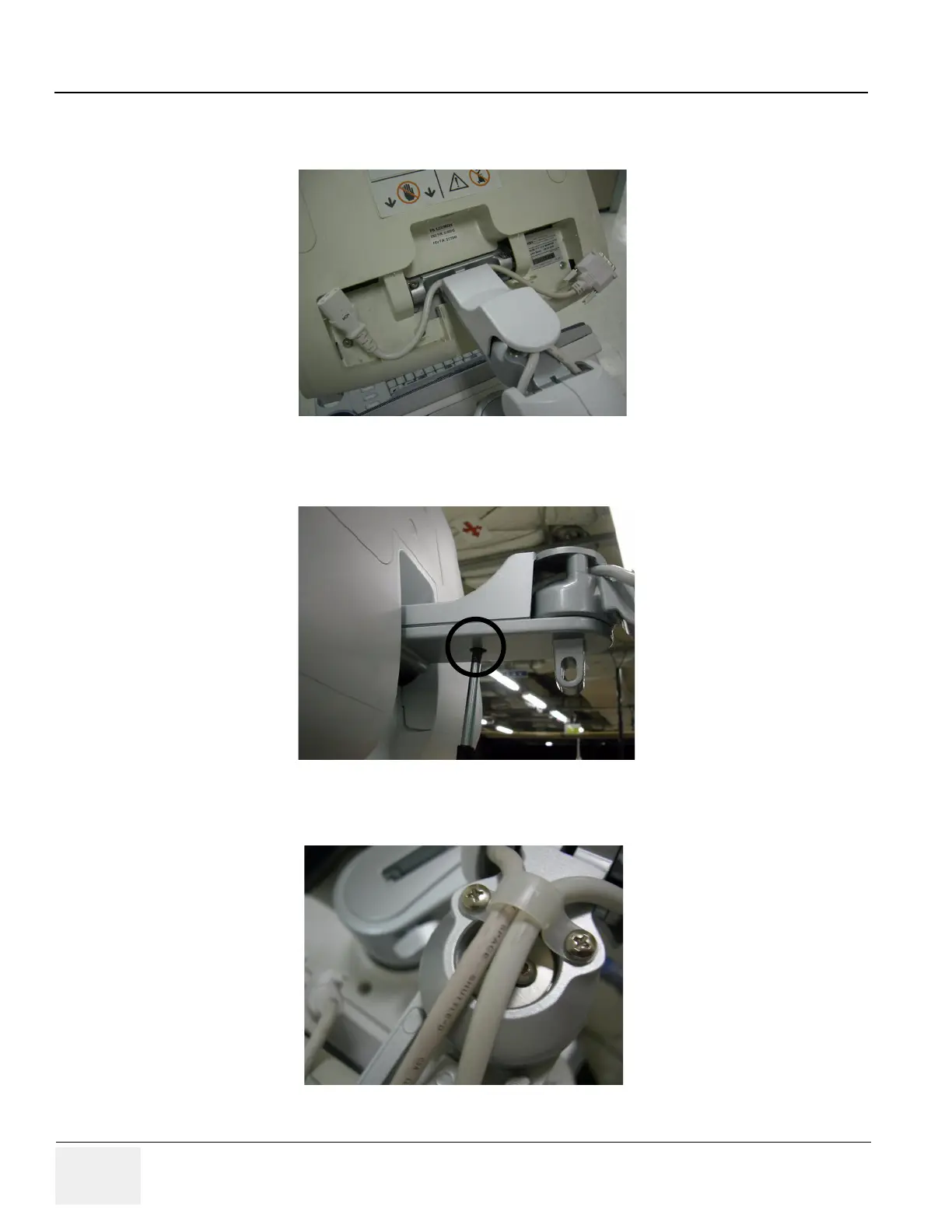

Figure 8-18 Disconnecting power cable and DVI cable
Figure 8-19 Removing the Fold cover
Figure 8-20 Removing the Cable clamp
