GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-20 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-3 Removal procedure (cont’d)
19.)Pull out power cable & DVI cable and remove the oilless bush after separating the neck pipe.

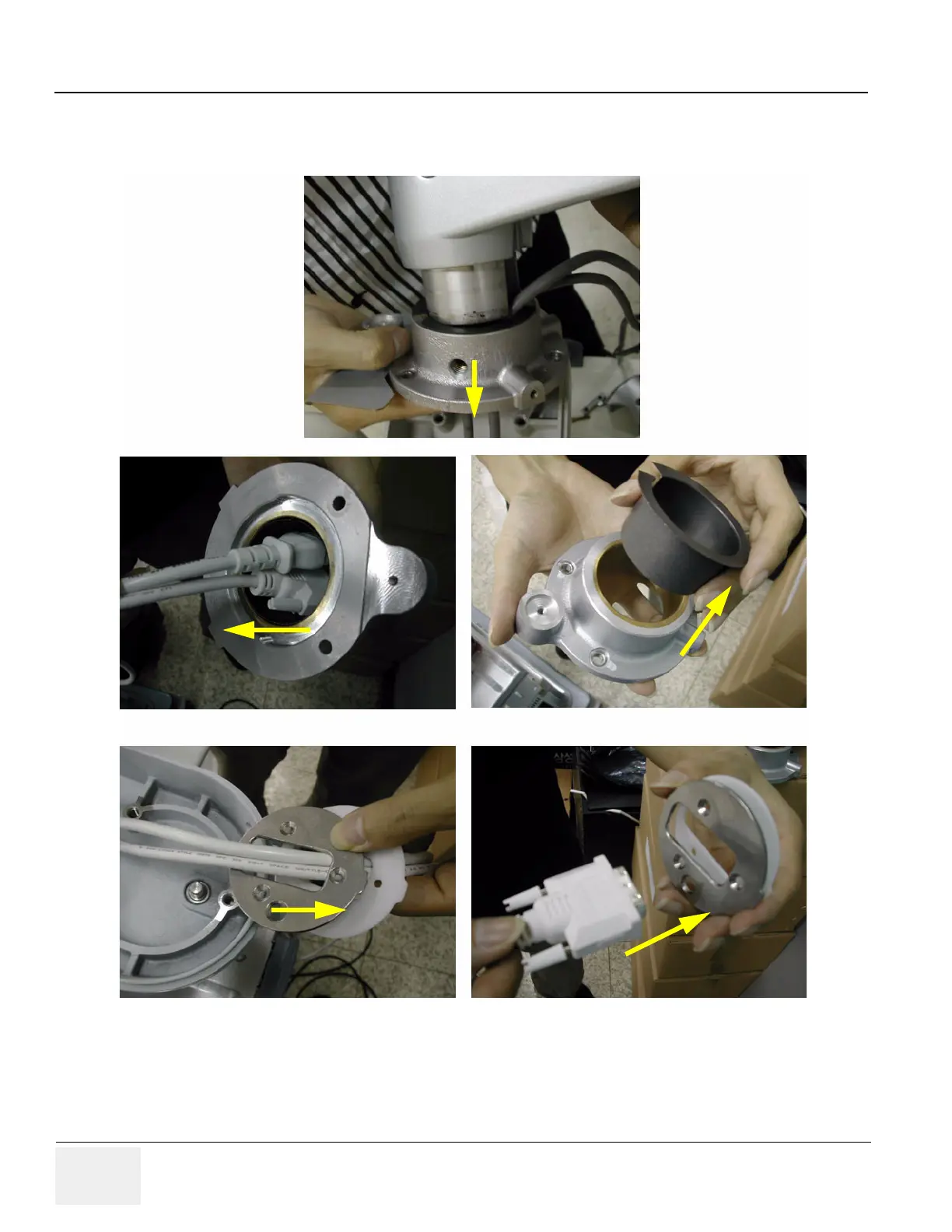

Figure 8-34 Pulling out power cable & DVI cable and removing the stopper
To Next Page
