8-32 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-4 Assembly procedure (cont’d)
21.)Screw 3 screws (2159634, BH M4x10 WHT) after placing the neck front cover and neck Rear cover.
22.)Screw 1 screw (2159625, PH M4X8 W/SP) to assemble the Lock Knob.

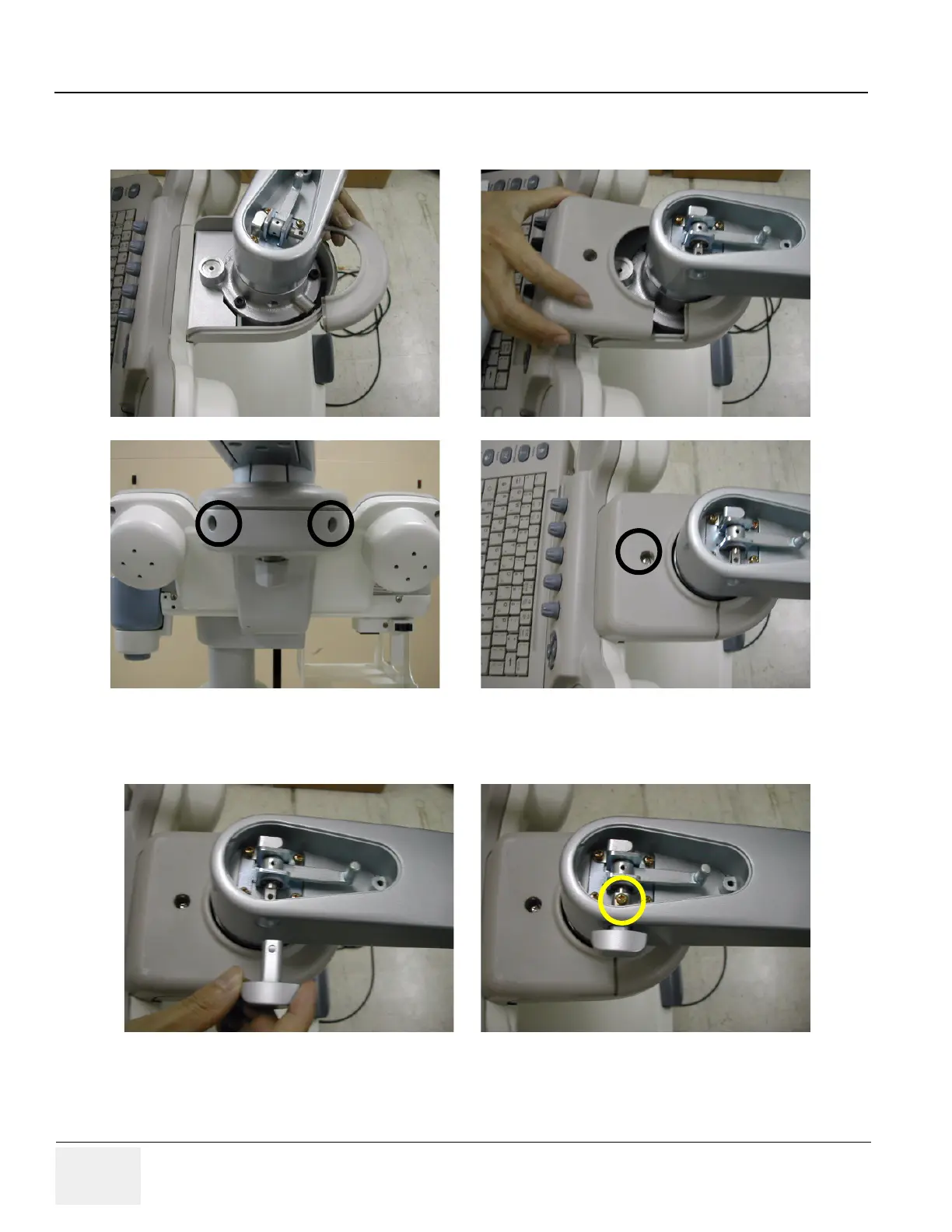

Figure 8-58 Assembling the neck front cover and the neck rear cover
Figure 8-59 Assembling the Lock Knob
