8-36 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-6-4 Assembly procedure (cont’d)
28.)Attach LCD Arm Caution Label, LCD Arm Rotation Label, LCD Lock Caution Label.

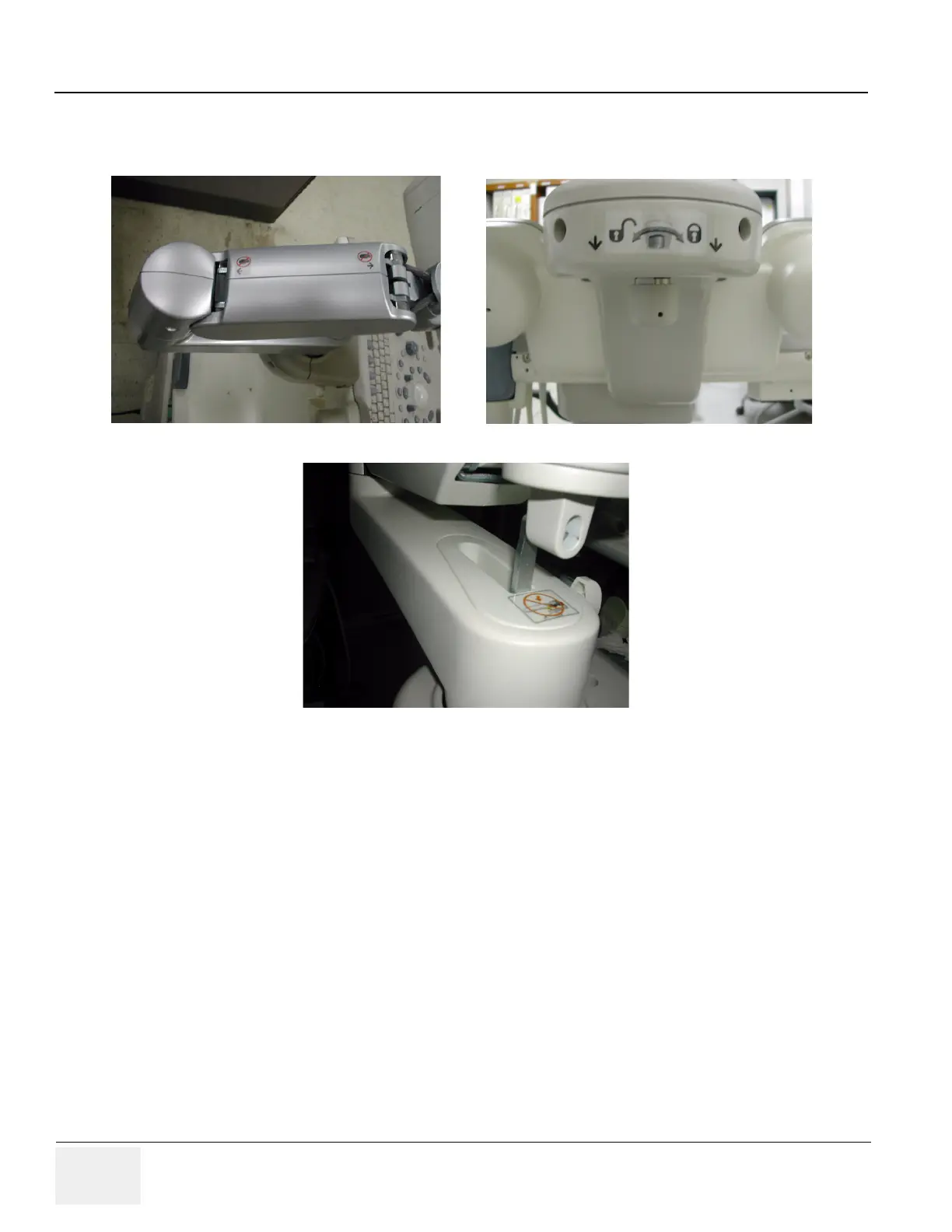

Figure 8-65 Flexible Arm
LCD Arm Caution Label
LCD Arm Rotation Label
LCD Lock Caution Label
