8-38 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-7-3 Removal procedure (cont’d)
3.) Unscrew 2 screws from the rear side of the keyboard.
4.) Lift the top cover of the keyboard and disconnect 4 cables from the keyboard.

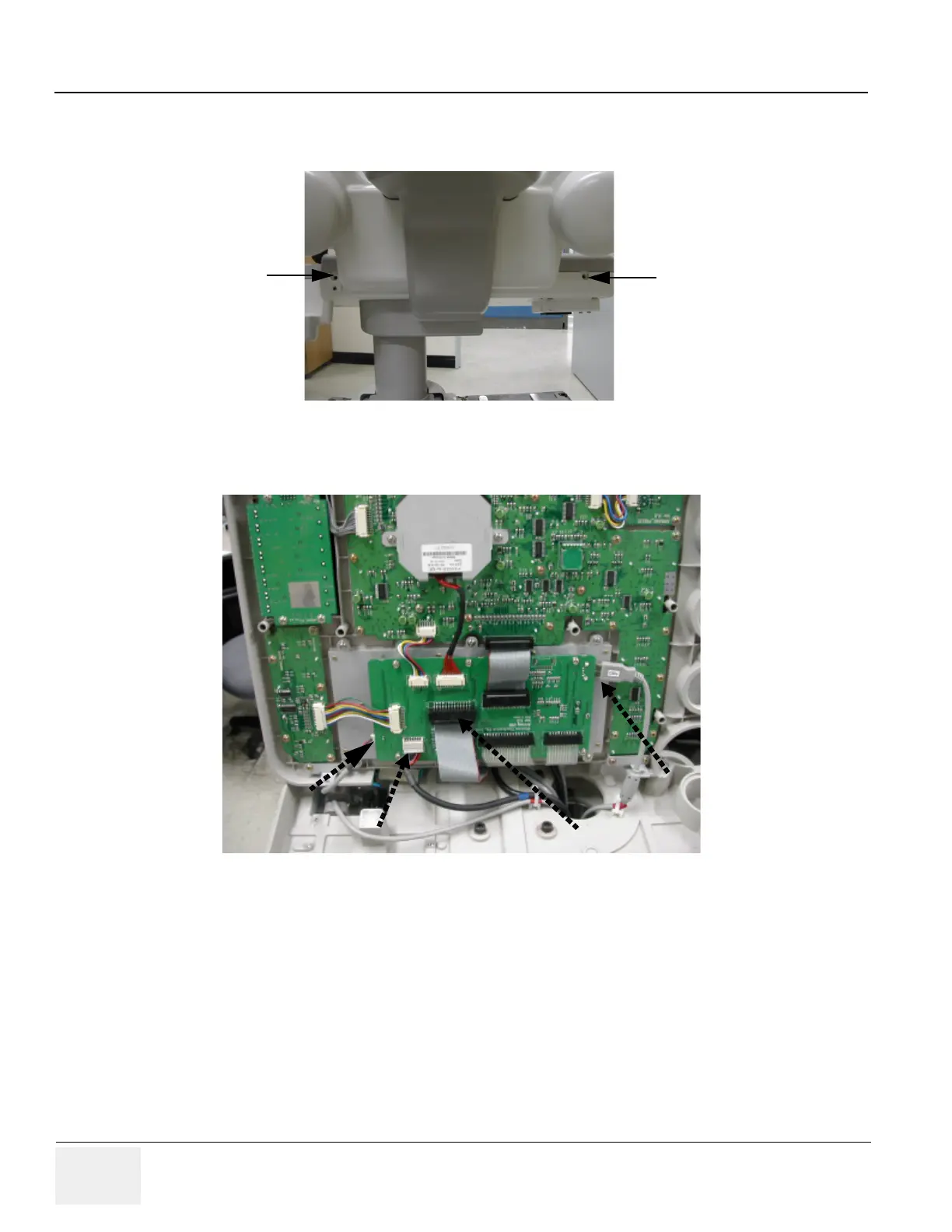

Figure 8-68 Unscrews 2 screws
Figure 8-69 Lifting the top cover & Disconnecting 5 Cables
To Next Page
