GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-48 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-12-3 Removal procedure (cont’d)
4.) Disconnect 1 connector from the PCB.
5.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-12-4 Mounting Procedure
Install the new parts in the reverse order of removal.

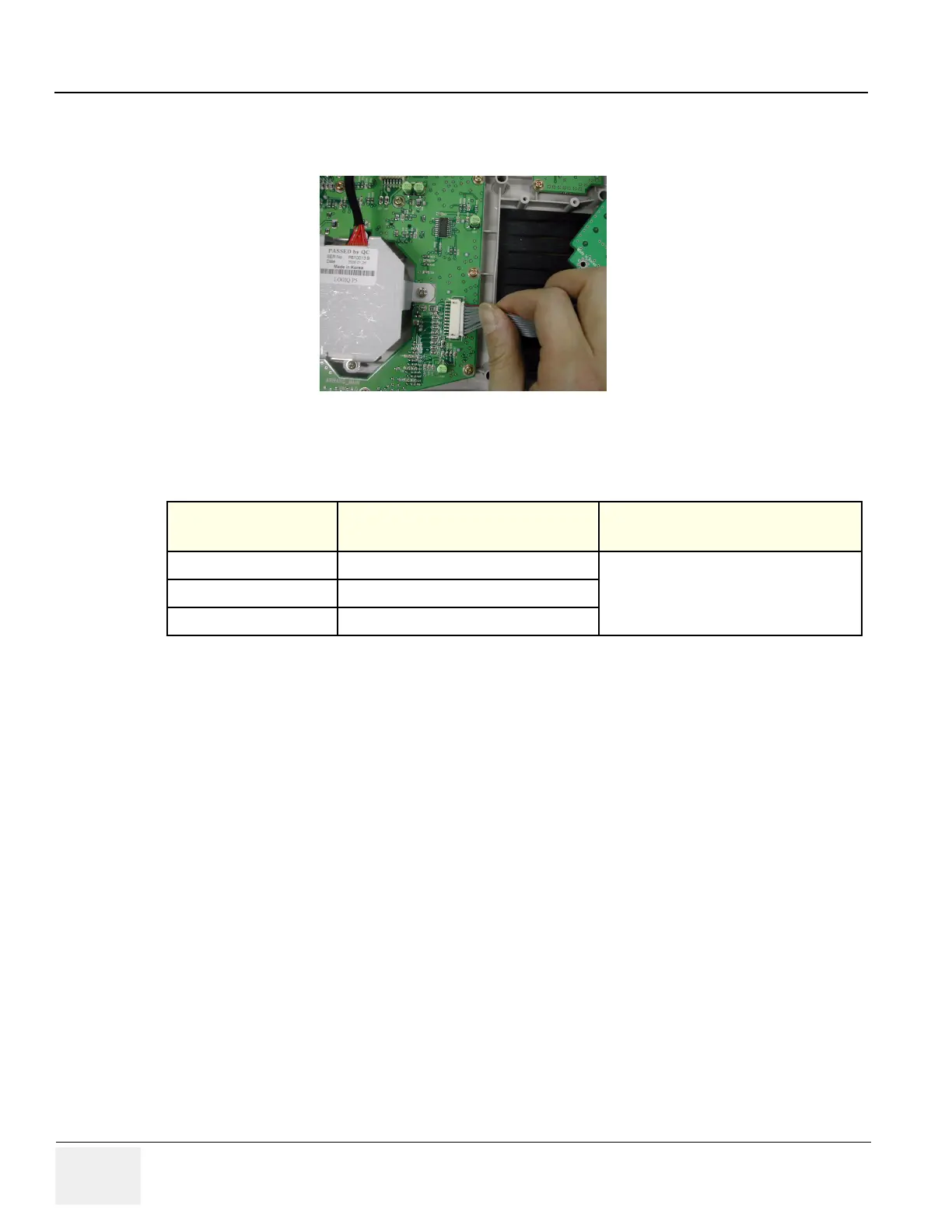

Figure 8-81 TGC Key Connector
Table 8-13 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394141, Rev 1+, Section 8-2-12. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-7-6
TGC key assay / TGC Knob Set validation
