GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-2 - DISASSEMBLY/RE-ASSEMBLY 8-113
8-2-49-4 Mounting Procedure
Install the new parts in the reverse order of removal.
When installing the Transbox assy, the transbox chassis should be inserted into the guide rail which is
under the frame chassis.

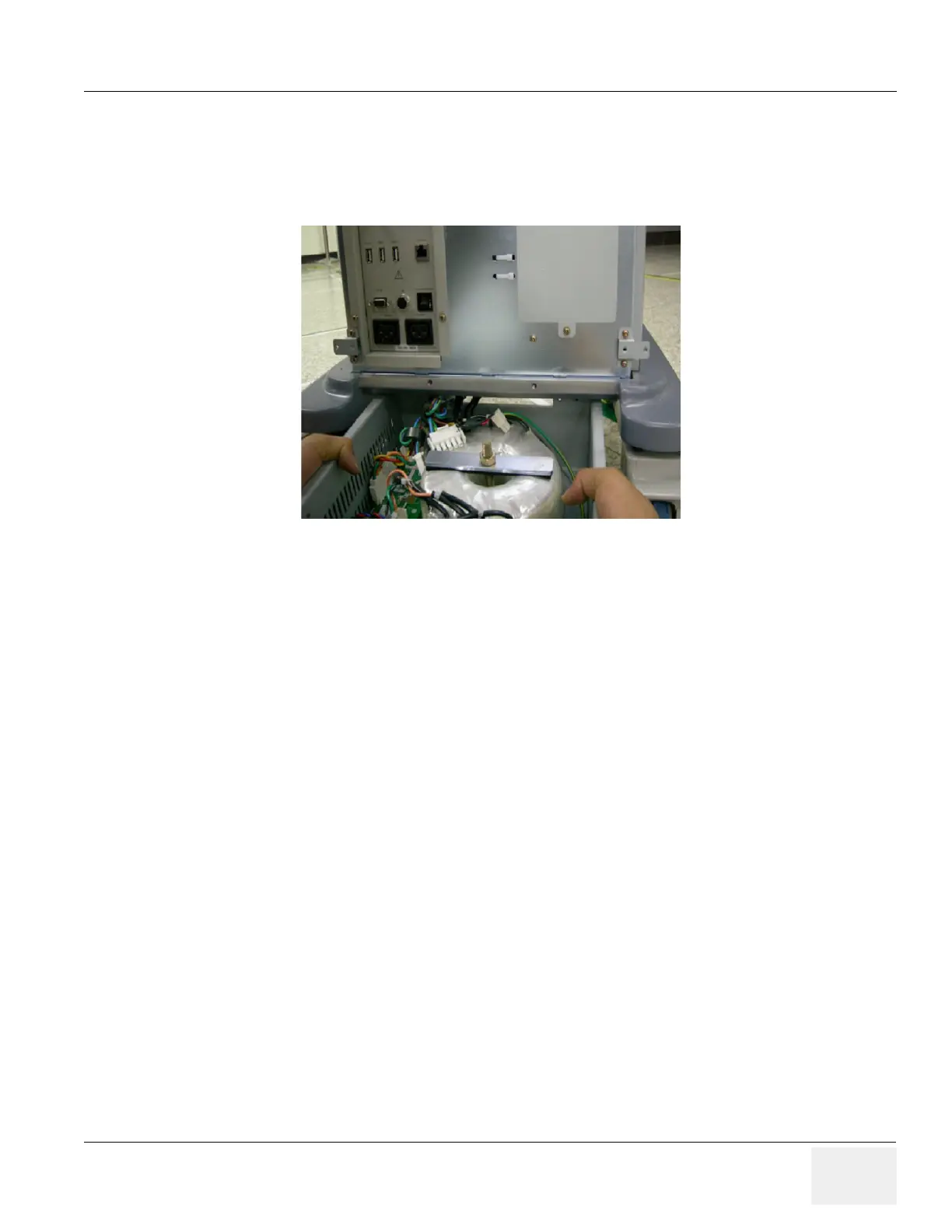

Figure 8-150 Insert the Transbox assy
