GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-193
8-7-9 Color Printer Fixture Middle installation - UP-D25MD Printer (cont’d)
4.) Connect the USB cable and Power cable from the color printer to the system as shown in the figure
below.
5.) Install Mid Color Cable Bracket and screw 4 screws(2159633, BH M4X8) to fix it.
6.) Tie the cables using the tie wrap as illustrated in the figure below.

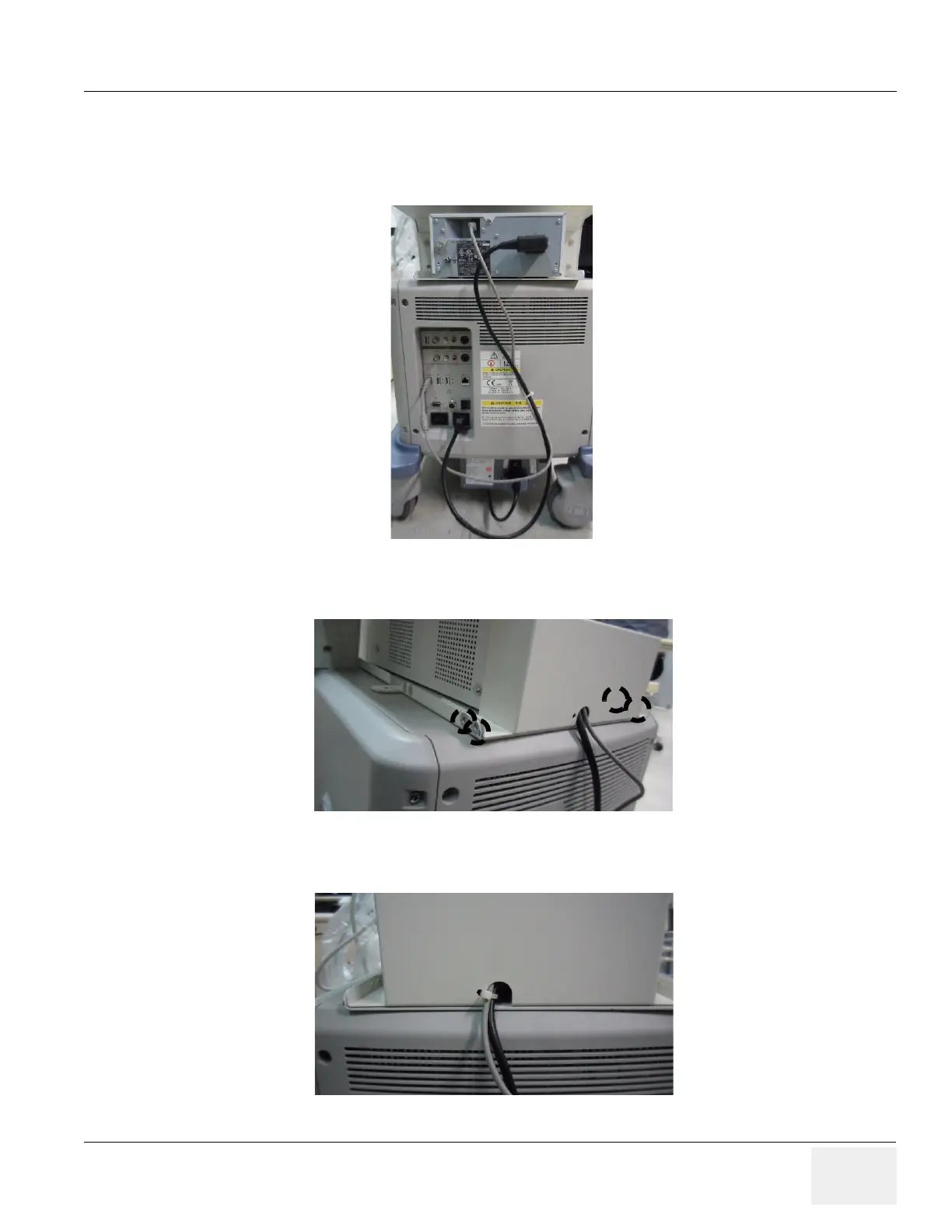

Figure 8-276 Color Printer Fixture Middle installation
Figure 8-277 Color Printer Fixture Middle installation
Figure 8-278 Color Printer Fixture Middle installation
To Next Page
