GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
Section 8-7 - Mechanical Option Installation instruction 8-205
8-7-13-2 Bracket Installation (cont’d)
4.) Screw 2 screws(2159633, BH M4x8 WHT) on each side of the system to fix the VCR recorder with
base bracket to the VCR top bracket.
5.) Connect the cables (Power Cable, USB cable, S-VHS Cable, and Sound cables) from the VCR to
the system.
6.) Connect the cables to the system on the rear panel.

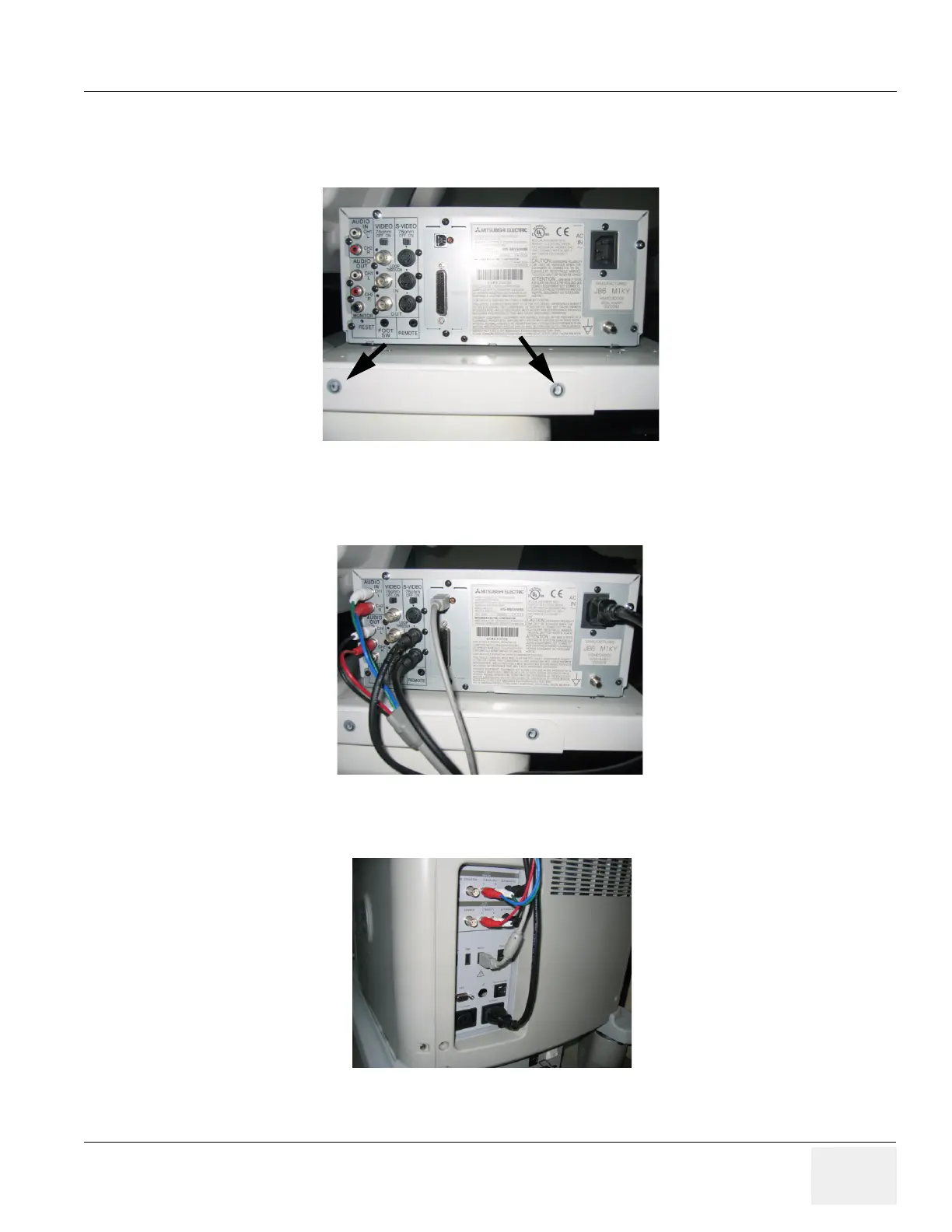

Figure 8-305 Printer VCR DVD Fixture Top installation
Figure 8-306 Printer VCR DVD Fixture Top installation
Figure 8-307 Printer VCR DVD Fixture Top installation
