GE HEALTHCARE
DIRECTION 5394141, REVISION 5 LOGIQ™ P5 SEVICE MANUAL
8-220 Section 8-7 - Mechanical Option Installation instruction
8-7-20 BT11 Drawer Option Installation (cont’d)

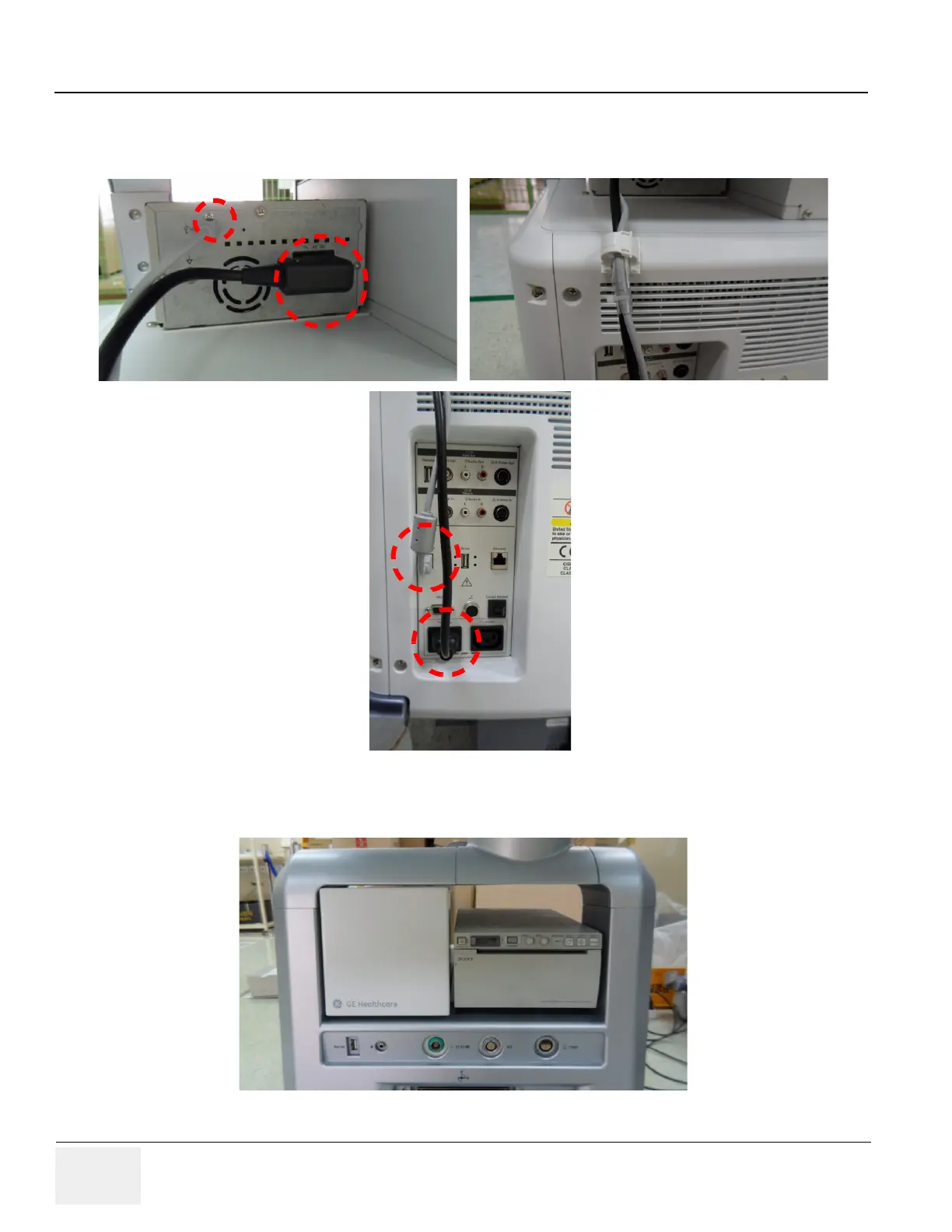

6.) Connect the BW Printer cable and fix the cables with CABLE MOUNT. Refer to the pictures below.
7.) Installation Completion.
Figure 8-336 BT11 Drawer Option Installation
Figure 8-337 BT11 Drawer Option Installation
