GE HEALTHCARE PROPRIETARY TO GE
D
IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 3-10 - Printer Installation 3 - 65
3-10-4 Setting the printer to print reports
To set up the Off-Line Printer to print reports,
1.) Select Utility -> System -> Peripherals.
2.) Select the printer from Default Printer pull-down menu.

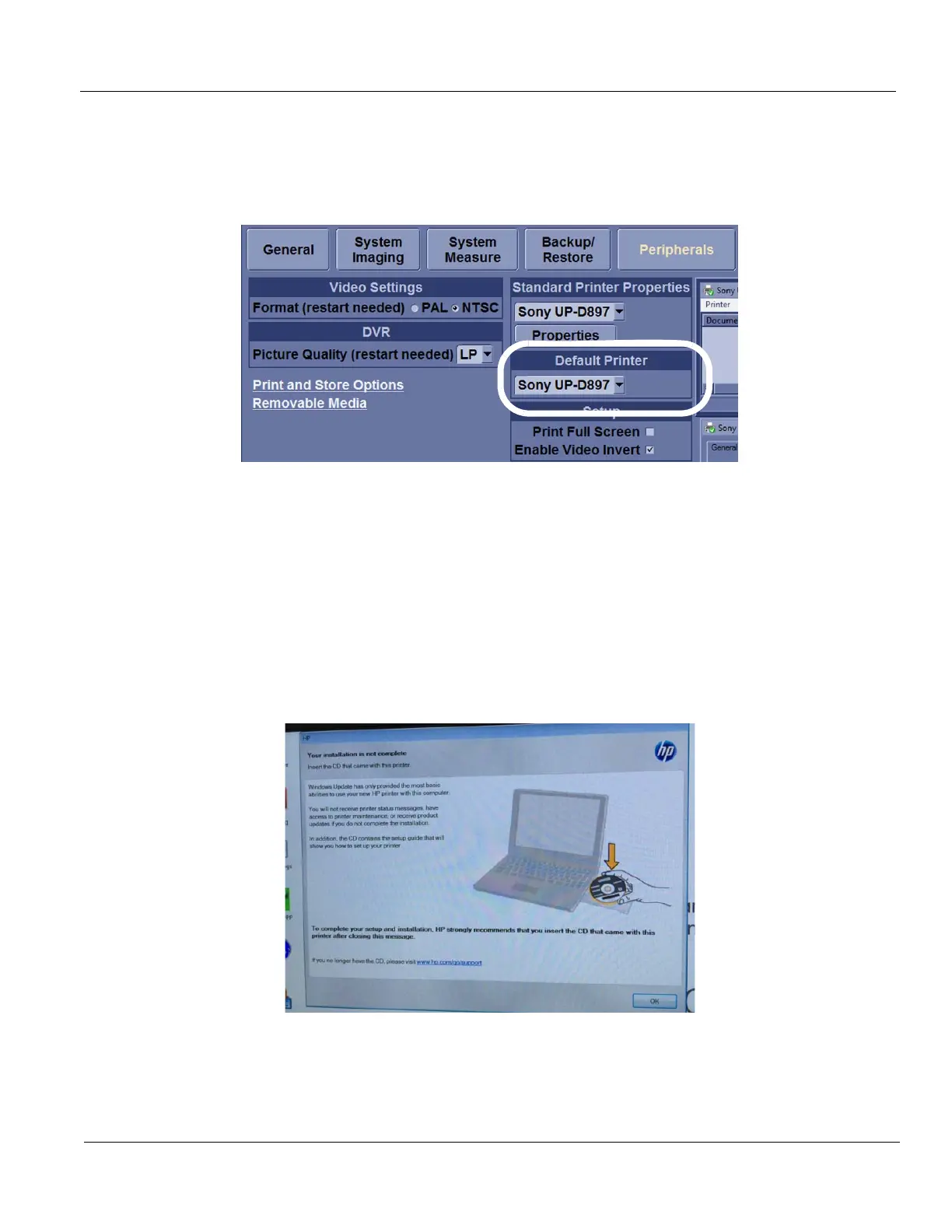

Figure 3-45 Report Printer Setup
3.) Press Save.
4.) Press Print on the Report screen to print the report.
3-10-5 PC printer setup
1.) Turn off the LOGIQ S8.
2.) Connect the PC printer to the LOGIQ S8 (rear USB port).
3.) Turn on the PC printer.
4.) Turn on the LOGIQ S8. The following message appears.
5.) Click OK and shutdown the LOGIQ S8.
6.) Reboot the LOGIQ S8.
