GE H
EALTHCARE
D
IRECTION
5394227, 12
LOGIQ S8/LOGIQ E8 S
ERVICE
M
ANUAL
7 - 70
Section 7-7 - Trou
bleshooting Trees, Instruction
s and Tech Tips
7-7-4

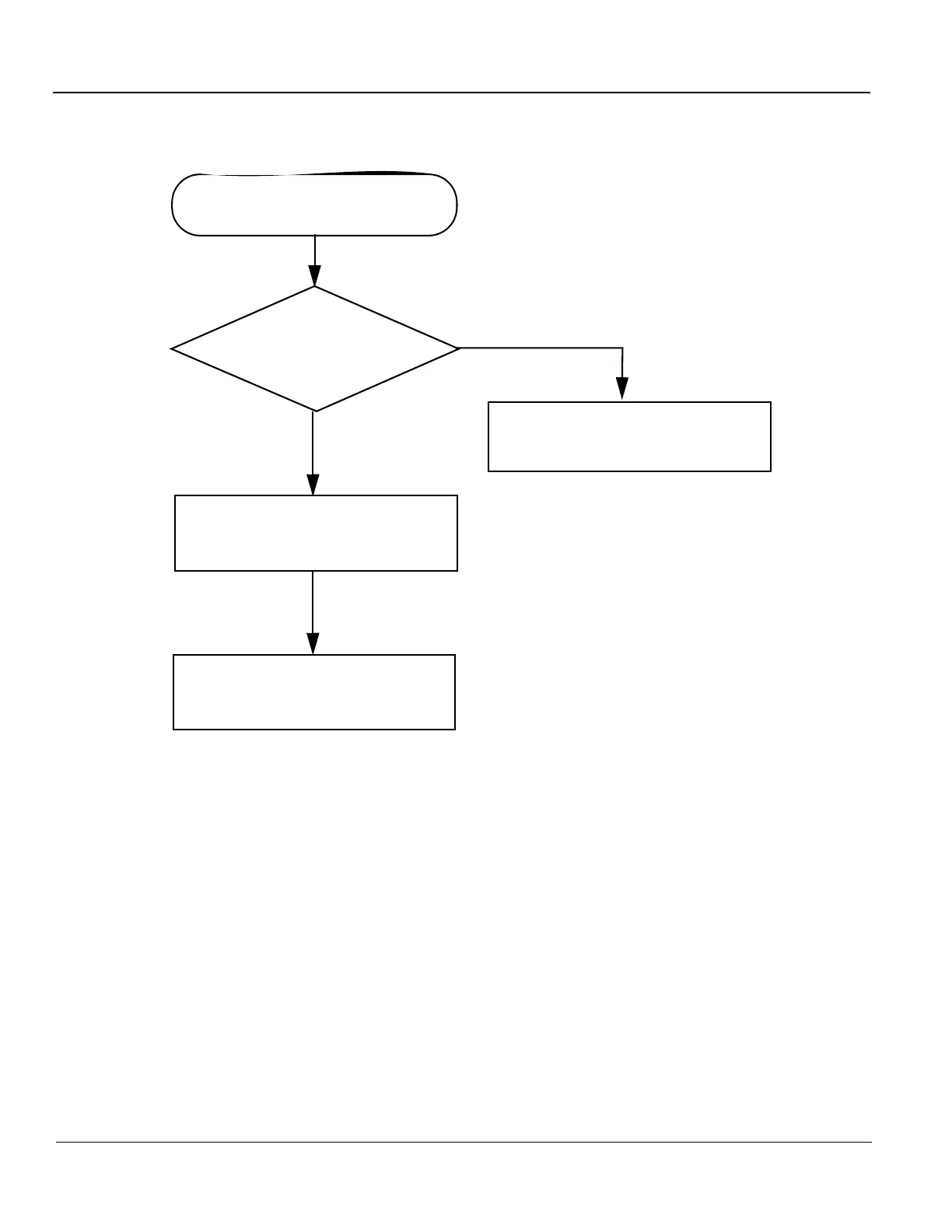

Noise disturbs the Image
Figure 7-63 Noise disturbs the Image - T
roubleshooting
Noise is shown in Image.
YES
NO
Is there any electrical
devices that affect the
scanner?
Keep the scanner away from thos
e
electrical devices.
Use another wall socket.
Check probes.
339
341
Table of Contents
Table of Contents
17
Chapter 1 Introduction
33
Overview
33
Purpose of this Chapter
33
Contents in this Chapter
33
Service Manual Overview
34
Contents in this Service Manual
34
Typical Users of the Service Manual
35
Models Covered by this Manual
36
Product Description
38
Important Conventions
39
Conventions Used in this Manual
39
Standard Hazard Icons
40
Product Icons
42
Safety Considerations
47
Contents in this Section
47
Introduction
47
Human Safety
47
Safety Considerations
48
Mechanical Safety
49
Electrical Safety
51
Auxiliary Devices Safety
52
Battery Safety
54
Labels Locations
55
The Labels on the Cover
55
Rating Plate
58
Dangerous Procedure Warnings
59
Lockout/Tagout (LOTO) Requirements
60
Returning/Shipping System, Probes and Repair Parts
61
For LOGIQ S8 Vet System
61
Electromagnetic Compatibility (EMC) and Electrostatic Discharge (ESD)
62
What Is EMC
62
Compliance
62
Direction 5394227, 12 Logiq S8/Logiq E8 Service Manual
62
Electrostatic Discharge (ESD) Prevention
62
Customer Assistance
63
Contact Information
63
System Manufacturer
64
Authorized EU Representative
64
Direction 5394227, 12 Logiq S8/Logiq E8 Service Manual
65
CHAPTER 2 Site Preparations
65
Overview
65
Purpose of this Chapter
65
Contents in this Chapter
65
General Console Requirements
66
Environmental Requirements
66
Electrical Requirements
67
EMI Limitations
68
Probe Environmental Requirements
70
Time and Manpower Requirements
70
Facility Needs
71
Purchaser Responsibilities
71
Required Facility Needs
72
Privacy and Security
72
Desirable Features
73
Minimal Floor Plan Suggestions
73
Networking Setup Requirements
74
Environmental Dangers
76
Patient Vicinity UL60601-1 (USA)
76
Patient Environment IEC60601-1 (IEC60601-1-1) and ANSI AAMI ES60601-1
77
Chapter 3 System Setup
79
Overview
79
Purpose of this Chapter
79
Contents in this Chapter
79
Setup Reminders
80
Average Setup Time
80
Setup Warnings
81
Receiving and Unpacking the Equipment
83
Receiving and Unpacking Warnings
83
Receiving the LOGIQ S8
84
Transportation Box Label
86
Unpacking the LOGIQ S8
87
Packing Materials - Recycling Information
88
Preparing for Setup
89
Verify Customer Order
89
Physical Inspection
89
EMI Protection
89
Completing the Set up
90
System Specifications
90
Electrical Specifications
91
Connection the I/O Rear Panel
92
Connecting Probes
93
Power On/Off
95
Connect AC (Mains) Power to the LOGIQ S8
96
Power on
97
Login
98
Logoff/Shutdown/Exit
99
Complete Shutdown
100
Sleep Mode (R1 to R4)
101
To Change Your Password
102
Password Policies
103
Disk Encryption
107
System Configuration
110
Purpose of this Section
110
Software Option Installation
113
Optional Peripherals/Peripheral Connection
115
Connecting the Secondary "Patient" LCD Monitor
116
Connecting the Off-Board/On-Board UVC
120
Connecting the Footswitch
124
ECG Connector
125
Connecting the USB Flash Drive and USB External Hard Disk Drive
126
Printer Installation
127
Installing Digital Black & White Printer Sony UP-D897/D898
127
Installing Digital Color Printer Sony UP-D25MD
136
Adding the Printer to the System
142
Setting the Printer to Print Reports
143
PC Printer Setup
143
Connectivity Setup
144
Connectivity Introduction
144
The Dataflow Concept
144
Stand-Alone LOGIQ S8
146
LOGIQ S8 + PC Within a "Sneaker Net
146
Connection between LOGIQ S8 and DICOM Server
146
Wired Ethernet from LOGIQ S8 to a Workstation
147
Connection Using Wireless Option (R2.X.X or Later)
147
Network Icon
148
Configuring Connectivity
150
Overview
150
Contents in this Section
150
Structured Reporting
150
Connectivity Functions
151
Tcpip
152
Device
154
Service
155
Instructions for Setting up Network Storage on LOGIQ S8 R4
157
Section 3-13 Setting up Insite Connection (R1 to R4) 3-13-1 Overview
160
Setting up Insite Connection (R1 to R4)
160
Overview
160
Contents in this Section
160
Prerequisites for Insite Setup
160
Configuration Steps
161
Configuring Insite
161
Configuring Agent Configuration
161
Configuring Advanced Configuration
164
Configuring Request for Service (RFS)
168
Verifying Insite Connection - CSD
169
Verifying Insite Connection - VCO
170
Agent Configuration (R4.2.5X and Later)
171
Overview
171
Verifying Back Office Connection - CSD
171
Verifying Back Office Connection - VOC
172
Connectivity Setup Worksheet
173
B.) Default Gateway
173
Paperwork
175
Product Locator Installation Card
175
User Manual(S)
175
User
175
Section 4-4 Functional Checks
194
Performance Tests
198
B-Mode Checks
199
M-Mode Checks
201
Color Flow Mode Checks
203
PW/CW Doppler Mode Checks
205
Tissue Velocity Imaging (TVI) Checks
207
Cineloop Check
208
SWE (Shear Wave "Shear Elasto") Functional Check
208
Basic Measurements
209
System Integration Checks
211
Probe/Connectors Checks
213
ECG Check
214
Peripheral Checks
215
System Exterior Visual Check
217
4D (Option)
222
Extended Battery (Option)
222
Mechanical Functions Checks
222
Volume Navigation (Option)
222
Fibroscan Module (Option)
223
Chapter 5 Components and Functions (Theory)
227
General Information
228
Power Distribution
237
Power Loss Description
238
Software Overview
239
Software Options
240
Hardware Options
243
Regional and Peripheral Options
251
Air Flow Distribution
252
Product Manuals
253
Section 7-4 Service Desktop (Csd) - R1 to R4 7-4-1 Purpose of this Section
290
Global Service User Interface (GSUI)
291
CSD Top Page
292
Error Logs
293
Diagnostics
294
Calibration
295
Image Quality
295
Configuration
296
Utilities - Common Utilities
297
Replacement
307
Section 7-6 Service Desktop (R4.2.5X and Later)
316
Color Statuses
317
Disruptive Mode
317
Licenses
318
Home
319
Utilities
324
Options
335
Agent Configuration
336
Section 7-7 Troubleshooting Trees, Instructions and Tech Tips
338
System Does Not Boot up
339
Noise Disturbs the Image
340
Trackball - Impaired Sensitivity
341
Printer Malfunction
343
19" Monitor Troubleshooting
344
Option Trouble Shooting
345
Power Assistant Option Trouble Shooting
345
Universal Video Converter Troubleshooting
345
Extended Battery Option Trouble Shooting
346
Mode Button Failure
347
Mode Encoder Works Twice When Pushed Button Once
347
Sticky Buttons
347
PC Printer Installation
348
Fibroscan Module (FSIM) Trouble Shooting
349
Fibroscan Probe
351
Privacy and Security Trouble Shooting
352
Slow Response Rate between the LOGIQ™ S8 and a DICOM (PACS) Server
352
Limitation Message During AFI Analysis
353
When the Touch Panel Does Not Response
353
Noise Troubleshooting
354
Electromagnetic Interference (EMI) Troubleshooting
356
Connectivity Troubleshooting
357
Chapter 9 Care & Maintenance
375
Warnings
376
Why Do Maintenance
376
Maintenance Task Schedule
377
Tools Required
380
System Maintenance
381
Using a Phantom
390
Electrical Safety Tests
391
When There's too Much Leakage Current
409
Ultrasound INSPECTION CERTIFICATE
411
