IRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 3-7 - Power On/Off 3 - 19
3-7-2 Power ON
NOTE: The mains outlet of the system for peripheral auxiliary equipment are commonly switched with
the ON/OFF standby button. So the auxiliary equipment need not to be switched ON/OFF
separately.
1.) Switch ON the Mains Power Circuit Breaker at the rear of the system. The power button turns on a
light as blue.
2.) Press once the power button on the Operator Control Panel to boot the system. The power button
turns on a light as green.

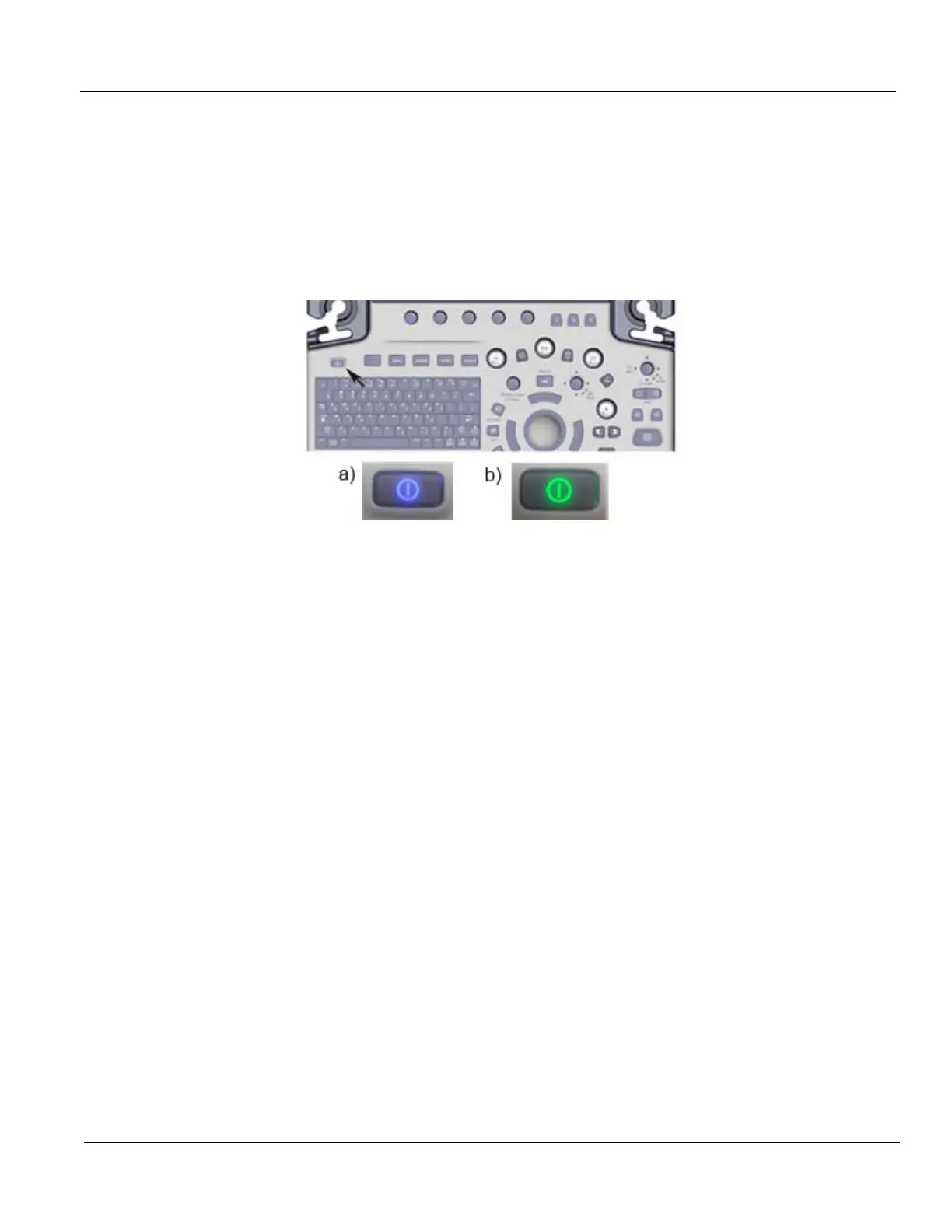

Figure 3-11 Power Button
3.) The System (including the Back-end Processor) starts and the operating system is loaded which
then leads the application software to activate the scanner.
During a normal boot, you may observe
- Power is distributed to Peripherals, Operator Panel (control panel), Monitor, Front-End and
Back-End Processor.
- The Back-End Processor and rest of the scanner starts with the sequence listed in following
steps:
a.) “Boot Screen” is displayed.
b.) Back-End Processor is turned ON and starts to load the software.
c.) The Start Screen is displayed on the monitor.
d.) Start-up progress bars indicating software loading procedures, are displayed on the
monitor.
e.) The software initiates and sets up the Front-End electronics and the rest of the scanner
(incl. the clicking sound of the relays on the PID board).
f.) The Keyboard backlight is lit.
4.) As soon as the software has been loaded, the system enters B-Mode with the probe connected to
port nearest to a user. Total time used for start-up is about 2 minutes. The power button on the
Control Panel and indicator color.
Off/Stand-by
ON (Power Assistant mode)
