GE HEALTHCARE
DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
7 - 24 Section 7-4 - Service Desktop (CSD) - R1 to R4
7-4-6 Diagnostics
The Diagnostic page uses a web-controlled user interface to provide access to common service
components and perform diagnostics.
• Non-Interactive: The tests are performed without the user’s intervention.
• Interactive: The user is required to perform an operation on the ultrasound unit in order for the test
to be completed successfully. This option is not applicable when used remotely.

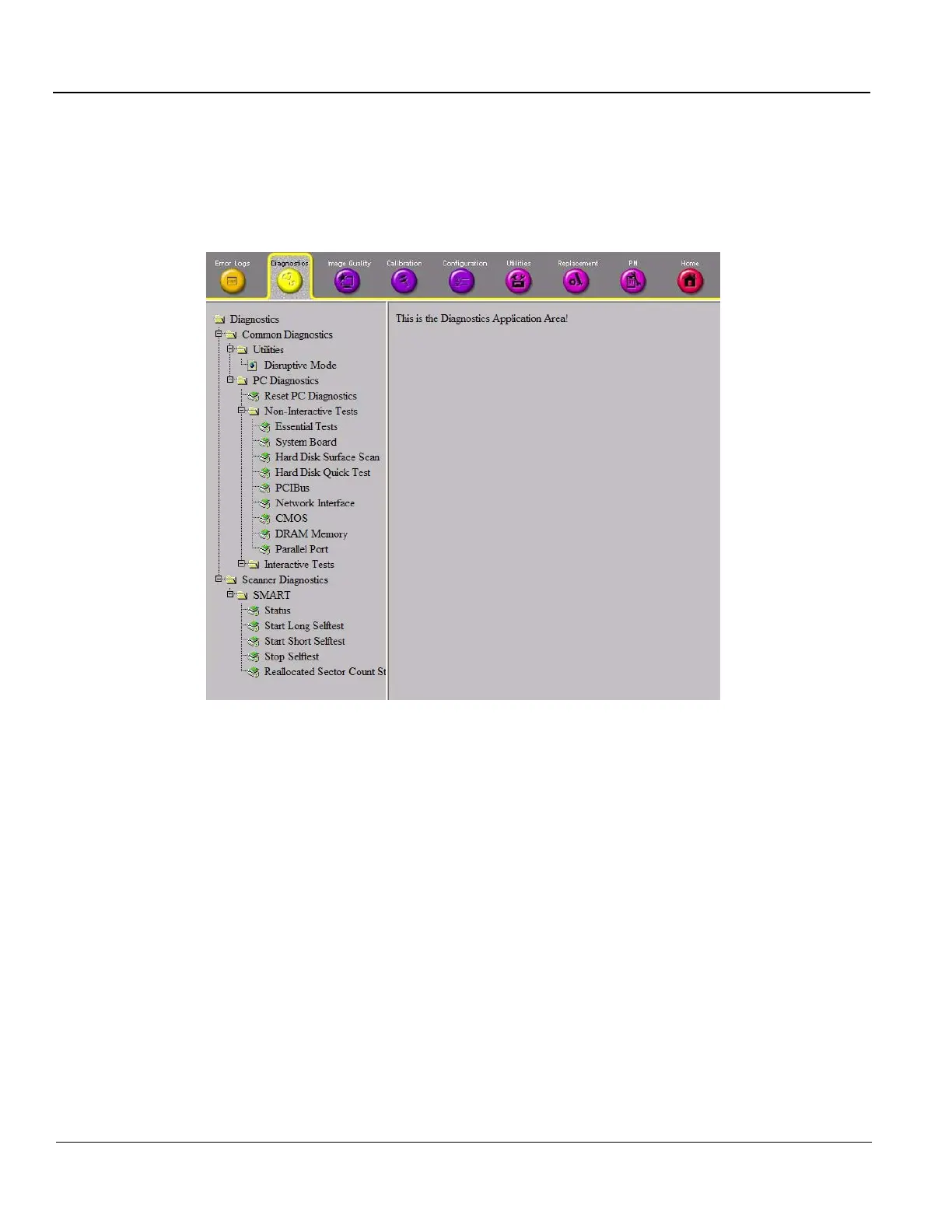

Figure 7-23 Common Service Desktop - Diagnostics
