DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 5-2 - General Information 5 - 3
5-2-1 System Exterior
5-2-1-1 R1, R2 and R3

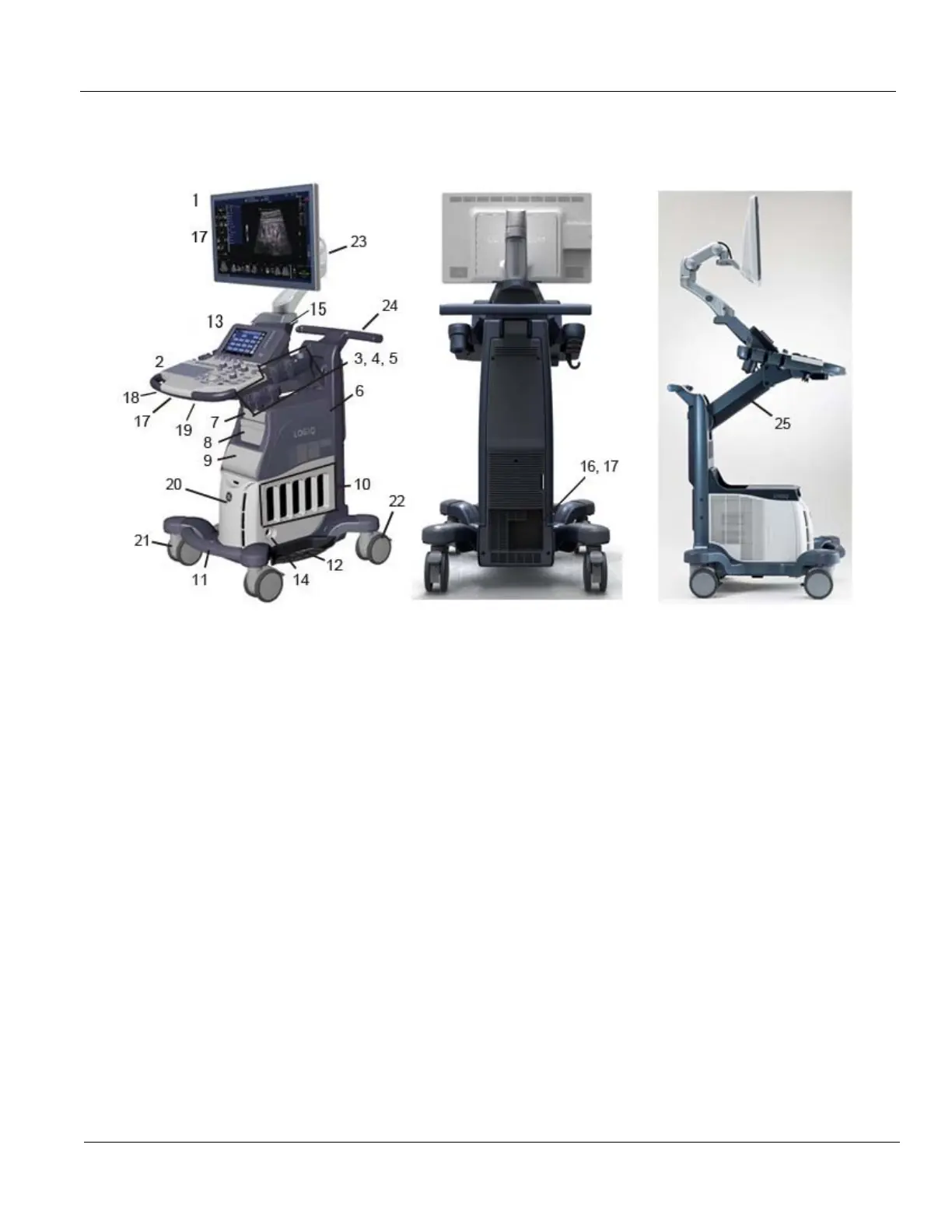

Figure 5-1 System Exterior (High cabinet type example)
1.) Monitor
2.) Control panel
3.) Probe holder
4.) Optional probe holder
5.) Gel warmer
6.) Audio speaker
7.) DVD Drive
8.) B/W Printer or V-Nav
9.) Color printer or Drawer
10.) Probe port - 4 active probe port and 1
parking port (LE8 has the cover)
11.) Foot rest
12.) Side tray (option)
13.) Touch panel
14.) CW pencil probe port
15.) ECG Connector
16.) External I/O panel
17.) USB ports (left side of 23” monitor, right
side of OLED monitor)
18.) Control panel swivel lever
19.) Control panel up/down lever
20.) Cooling fan and dust filter (inside front
cover)
21.) Caster
22.) Swivel lock caster
23.) Articulating monitor arm with lock
24.) Handle
25.) Operator panel elevation arm
