DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
5 - 6 Section 5-2 - General Information
5-2-1-4 Probe connector

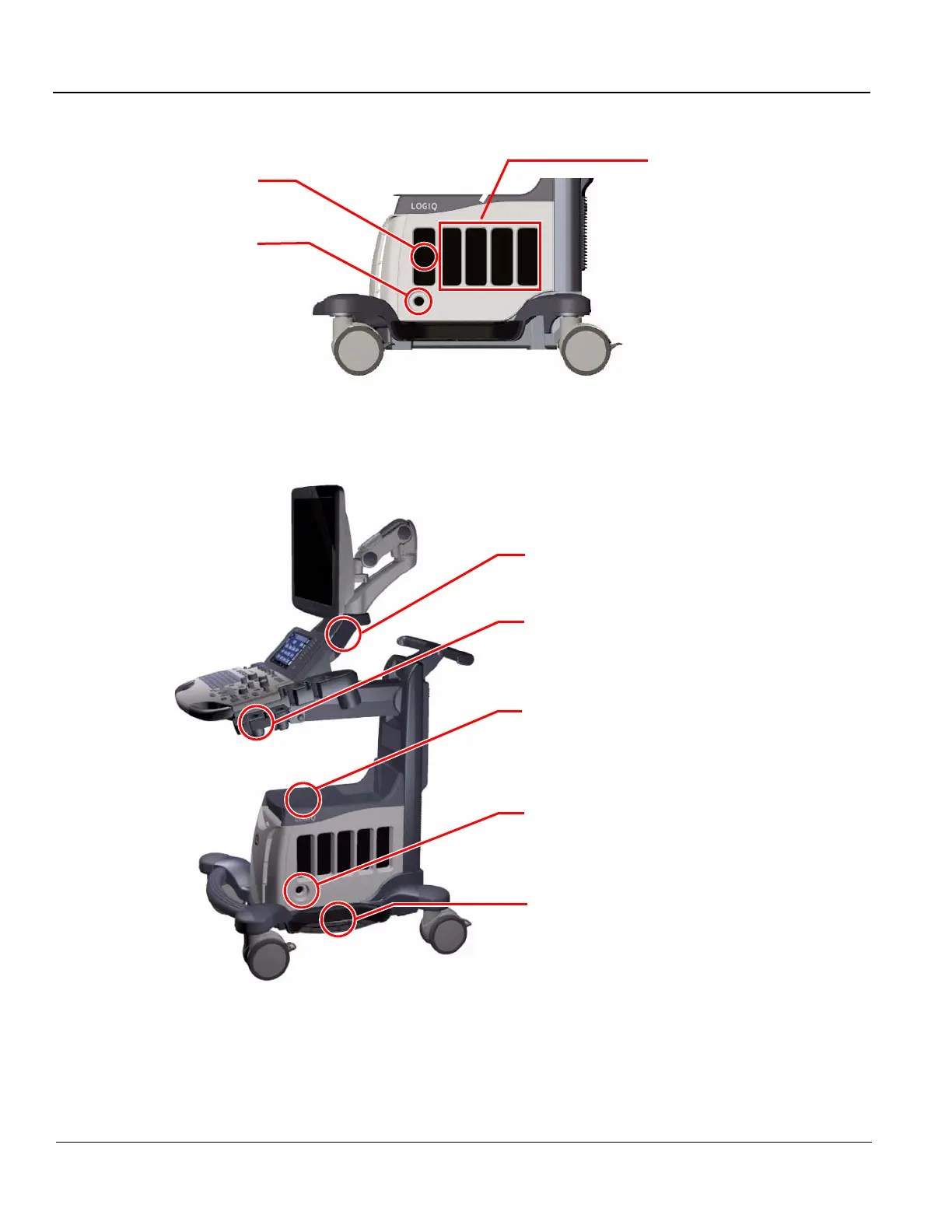

Figure 5-5 Probe connector
5-2-2 System Options
Figure 5-6 System Options
DLP Probe Connector
4 ports
“Parking” DLP
Connector
Single CW Connector
(CWD Option)
*LOGIQ S8 only
Optional Probe Holder
ECG Connector
Cabinet for BW Printer,
Color Printer, V-Nav Unit,
FIbroScan Module, Drawer
Single CW Connector
(CWD Option)
*LOGIQ S8/LOGIQ S8 Vet
Side Tray - for R1, R2 and R3
