GE HEALTHCARE
DIRECTION 5394227, 12 LOGIQ S8/LOGIQ E8 SERVICE MANUAL
Section 6-2 - Monitor Adjustment 6 - 5
6-2-1-2 Function

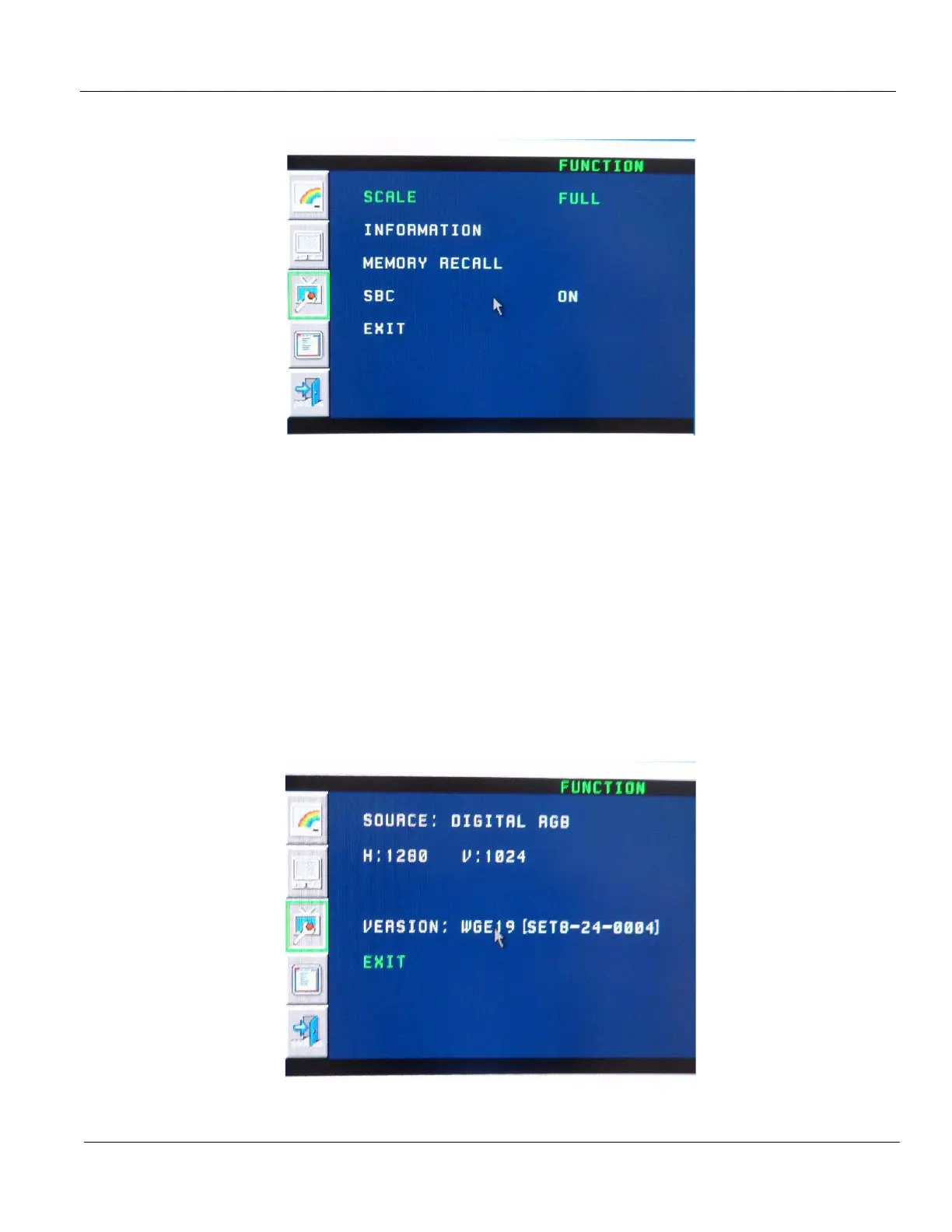

Figure 6-4 Function
6-2-1-2-1 Scale
1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the FUNCTION -> Scale by pressing the < LEFT or RIGHT > button to move the cursor and
the MENU (middle) key.
3.) Select FULL/5:4/NATIVE by pressing the < LEFT or RIGHT > button to decrease/increase the value
and the MENU (middle) key.
6-2-1-2-2 Information
1.) Press the MENU (middle) key of the monitor controls over 10 sec.
2.) Select the FUNCTION -> INFORMATION by pressing the < LEFT or RIGHT > button to move the
cursor and the MENU (middle) key.
Figure 6-5 Information
