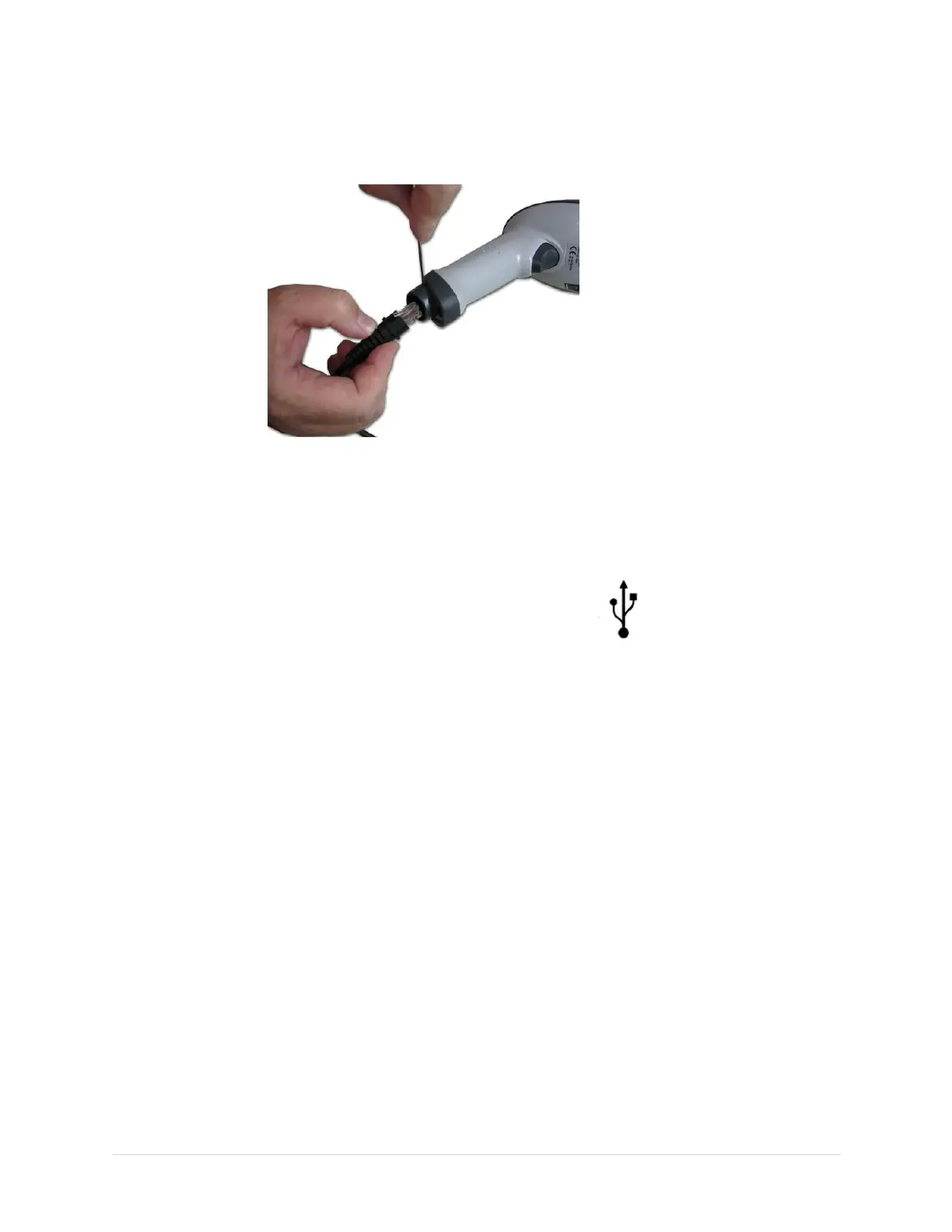

3.Ifyouareonlyreplacingthecable,disconnectthecablefromthebarcode
readerasshowninthefollowingillustration.
a.InsertanAllenwrench(orstraightenedpaperclip)inthesmallholeinthe
baseofthebarcodereader.
b.Whilepushingthetoolintothehole,pullthecabletoremoveitfrom
thebaseofthebarcodereader.
4.Usinganewcable,reversethedisassemblyprocedurestoreassemblethecable.
InserttheUSBconnectorwiththeUSBsymbolfacingdown.
5.Congurethenewbarcodereaderasdescribedintheoperator’smanualfor
yoursystem.
6.Performtheapplicablecheckoutprocedures.
Referto“FunctionalCheckout”onpage99.
