GE MAC 1600

Maintenance
ReplacingQueueMarkSensor
Thequeuemarksensorperformsthepaperqueuingfunctionifyouareusingthe
thermalpaperwithqueuemarks.Usethefollowingproceduretoreplacethequeue
marksensor.
1.Repeatsteps1through5in“RemovingthePrinthead”onpage88.
2.Removethequeuesensorholder(1)fromtheprintheadholder(2)asdescribed
inthefollowingsteps:

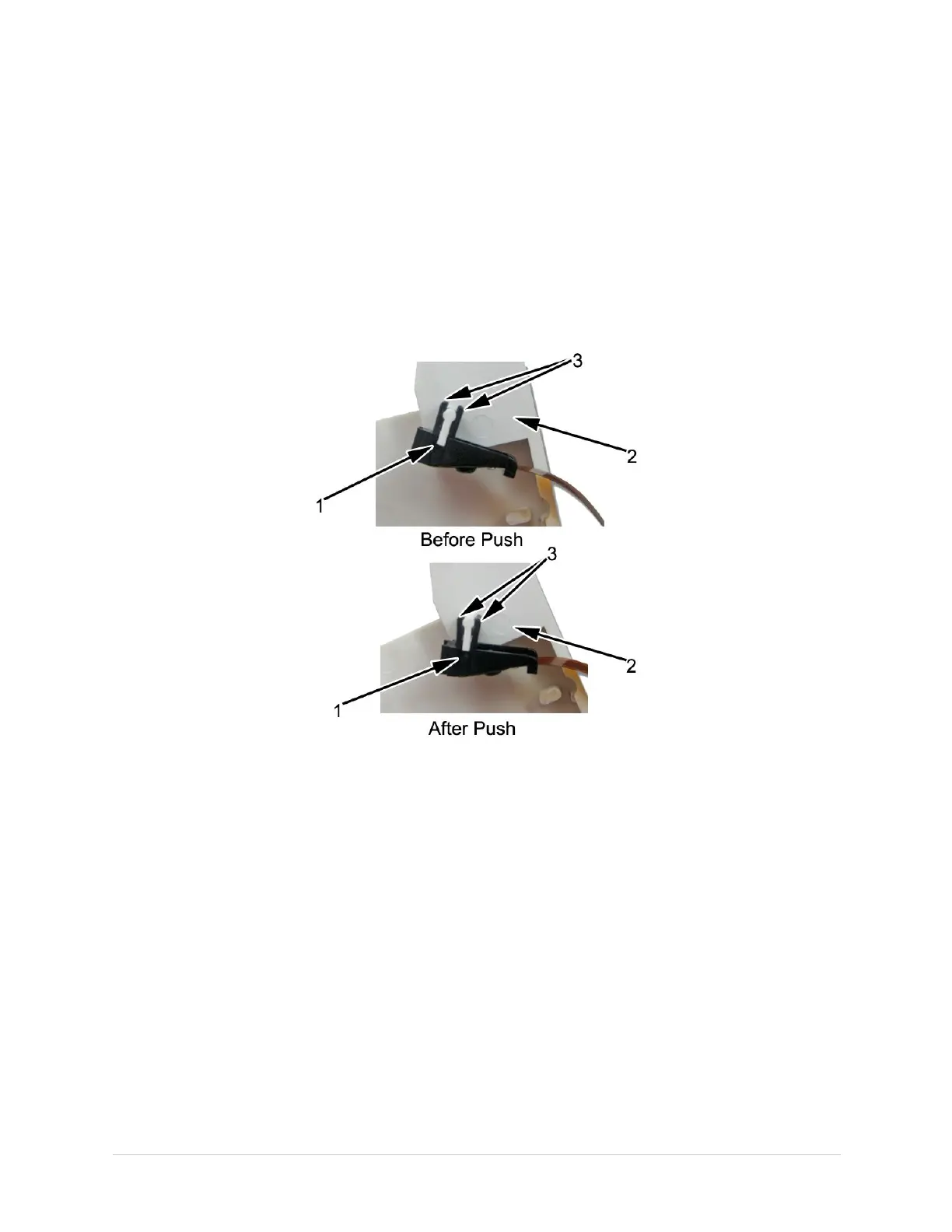

a.Pushonthequeuesensorholder(1)withyourthumbuntilits
lockingtabs(3)moveasshowninthefollowing“Afterpush”illustration.
b.Tocompletetheremovalofthequeuesensor,grabtheplasticbody
ofthesensorandpullittoremoveitfromtheprintheadholder.
3.Reverseallremainingdisassemblystepstocompletethereassembly.
4.Performtheapplicablecheckoutprocedures.
Referto“FunctionalCheckout”onpage99.
ReplacingtheMainboard/ETEModuleAssembly
Thefollowingproceduresdescribehowtoreplacethemainboard/ETEmodule
assembly.
ProcessingECGsinInternalStorage
Beforereplacingthemainboard,ifthesystemhastheinternalstorageoption,transmit
anyECGsremaininginstoragetoyourarchivalsystemand/orprintthemtoensure
youhaveaprintedrecord.
SavingSystemCongurationSettings
Systemcongurationsettingsaresavedonthemainboard.Beforereplacingthe
mainboard,itisveryimportanttosavearecordofthesystemcongurationsettings.
94MAC™16002028451-183E
