Maintenance
5.Repeattheprevioustwostepsfortherightprintheadholder.
6.Disconnectthetwocables.
ReassemblingthePrinthead
Usethefollowingproceduretoreassembletheprintheadintheprinter.

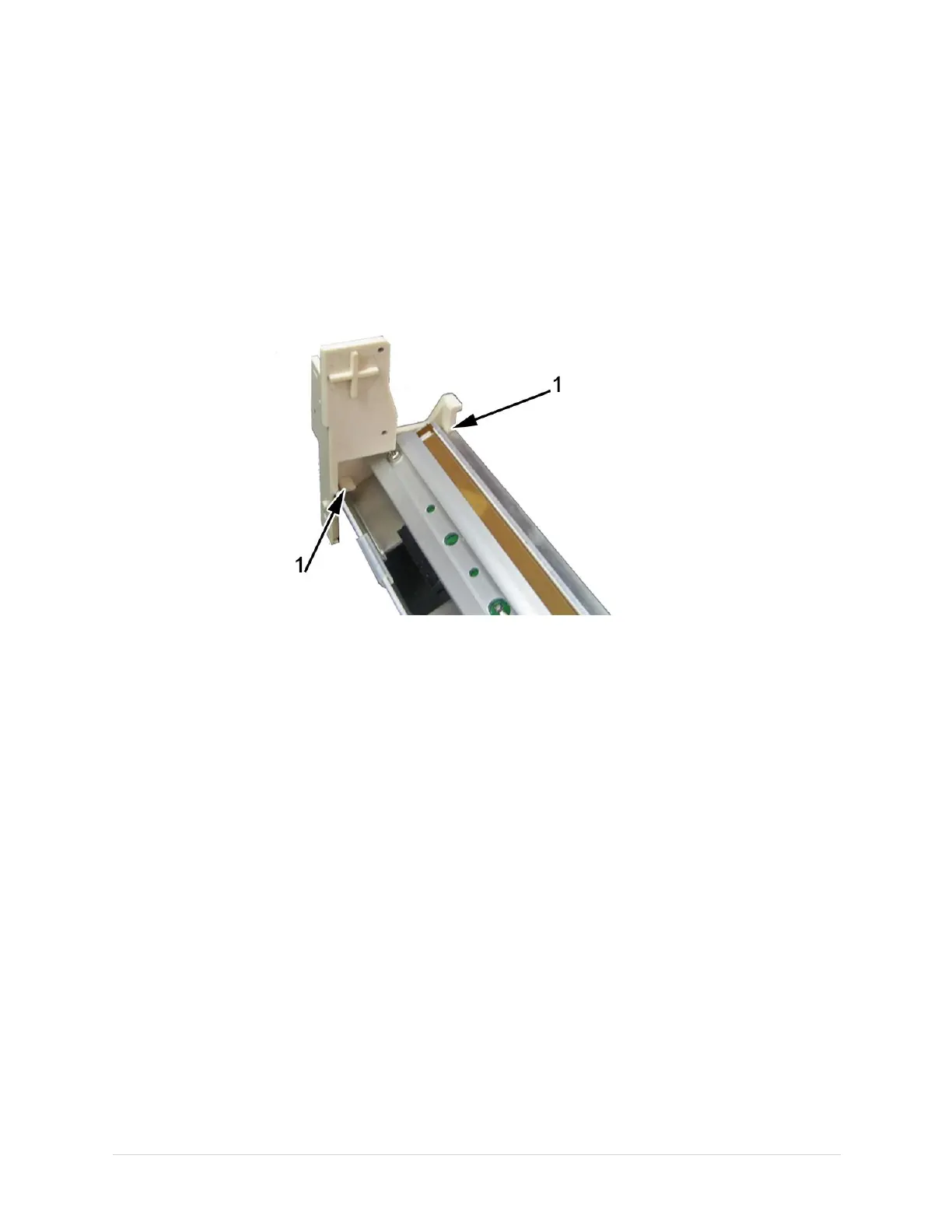

1.Inserttheprintheadassemblyintotherightprintheadholderbyslidingitunder
thetwotabs(1)showninthefollowingillustration.
2.Standtheassemblyontherightplasticprintheadholder(thesidewithnoqueue
sensor)andreassembletheleftprintheadholderbyperformingthefollowing
threestepssimultaneously:
a.Pushinonpressurebarwithyourthumb(1).
b.Pushdownontheplasticprintheadholderwithyourindexnger(2)
toalignthescrewholes.
c.Replacethescrew(3)thatholdsthepressurebartotheleftprinthead
holder.
2028451-183EMAC™160089
