Maintenance

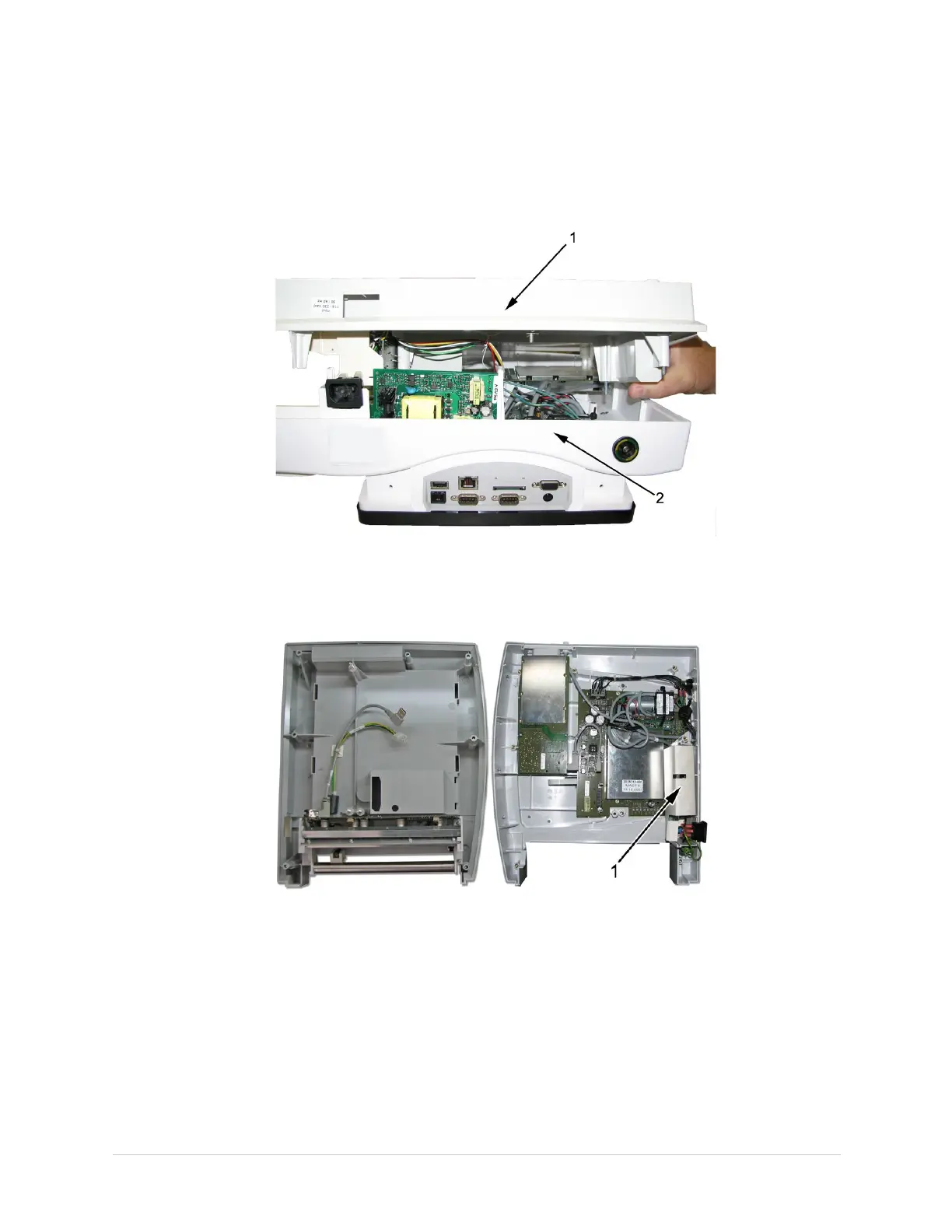

6.Liftthebackofthebaseplastic(1)fromthemiddleplastic(2),asshowninthe
followingillustration,untilyoucanaccessthetwocablesthatconnectthese
twoassemblies.
7.Disconnectthetwocablesfromthemainboard.
8.Setthebaseplasticassemblynexttothemiddleplasticassemblyasshownin
thefollowingillustrationandidentifythepowersupplyassembly(1).
9.Usingasmallneedle-nosepliers,disconnectpinkgroundconnectorfrom
ACoutlet.
10.Liftthepowersupplyassembly(Ainthepreviousgure)fromtherails.
11.Removethepowersupplyshield.
12.Disconnectthewhiteconnectorfromthepowersupplycircuitboardbypinching
thewhitetabwhilepullingtheconnector.
13.DisconnectthegroundingcablefromthebackoftheACpowerconnector.
14.Removethepowersupplyassembly.
