Maintenance
ReplacingthePrinterAssembly
Usethisproceduretoreplacetheprinterassembly.

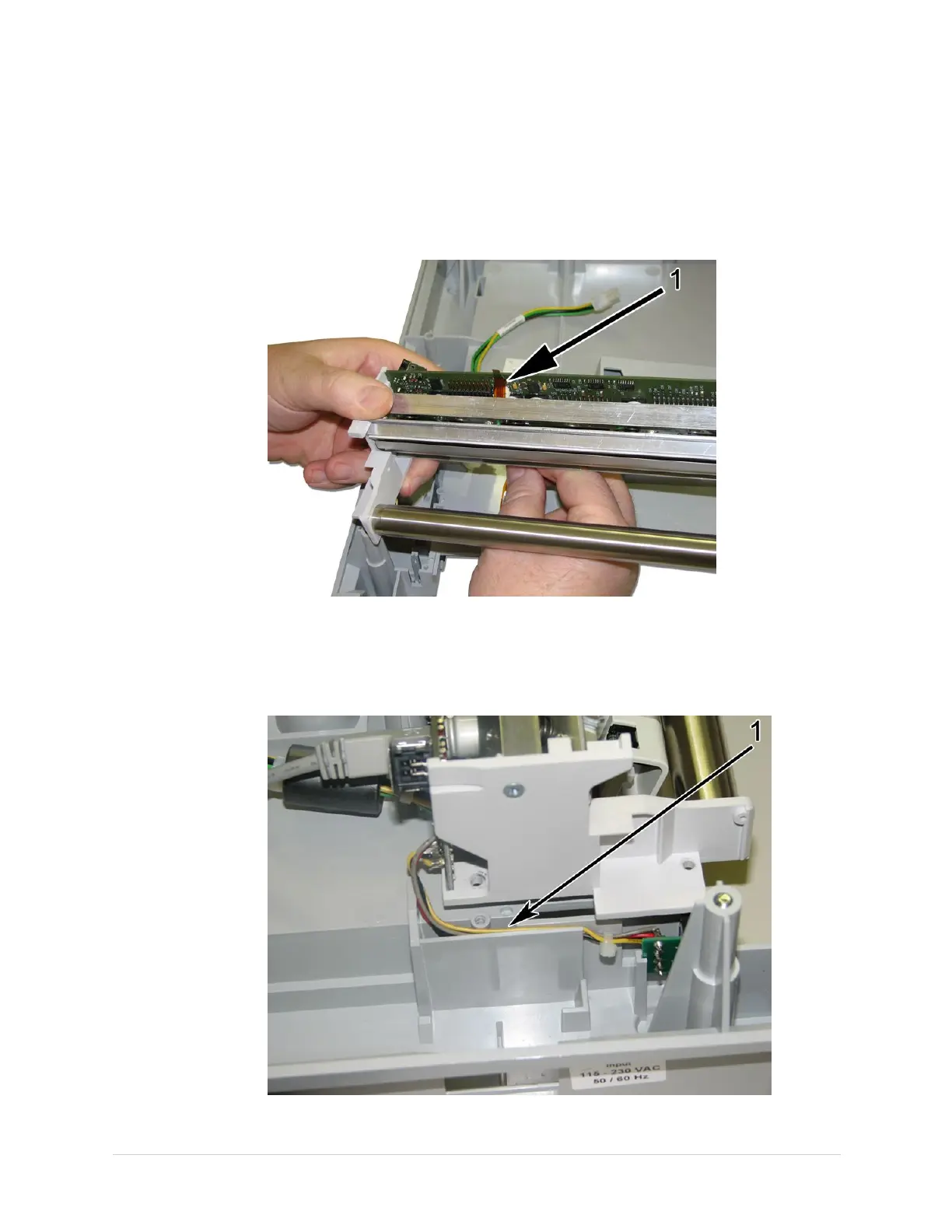

1.Whileholdingthereplacementprinterassemblyasshowninthefollowing
illustration,routetheribboncable(1)betweentheprinterboardandthe
printhead.
2.Lowertheprinterassemblyinposition.
Placetheprintermotorconnectorintoitsguiderailswhileroutingthefourwires
inthechannel(1)asshowninthefollowingillustration.Ifthesewiresarenot
properlyroutedinthechannel,theywillbepincheduponreassembly.
3.Slidetheprinterassemblytoitsnalmountingposition.
2028451-183EMAC™160083
