GE MAC 2000 - Printer Door

Maintenance
PrinterDoor
Thefollowingproceduresdescribehowtoremoveandreplacetheprinterdoor.
RemovingthePrinterDoor
Usethefollowingproceduretoremovetheprinterdoor.
1.Beforebeginninganysteps,followtheinstructionsin“PreparingtheSystemfor
FRUReplacement”onpage73.
2.Removethetopcoverassembly,ifitishasnotbeenremovedalready.
See“RemovingtheTopCoverAssembly”onpage75formoreinformation.
3.Detachthechassis.
See“DetachingtheChassis”onpage82forinstructions.
4.Removetheprintermoduleassembly.
See“RemovingthePrinterModuleAssembly”onpage94forinstructions.
5.Gentlyturnthedeviceoversothebottomcoverisfacingyou.

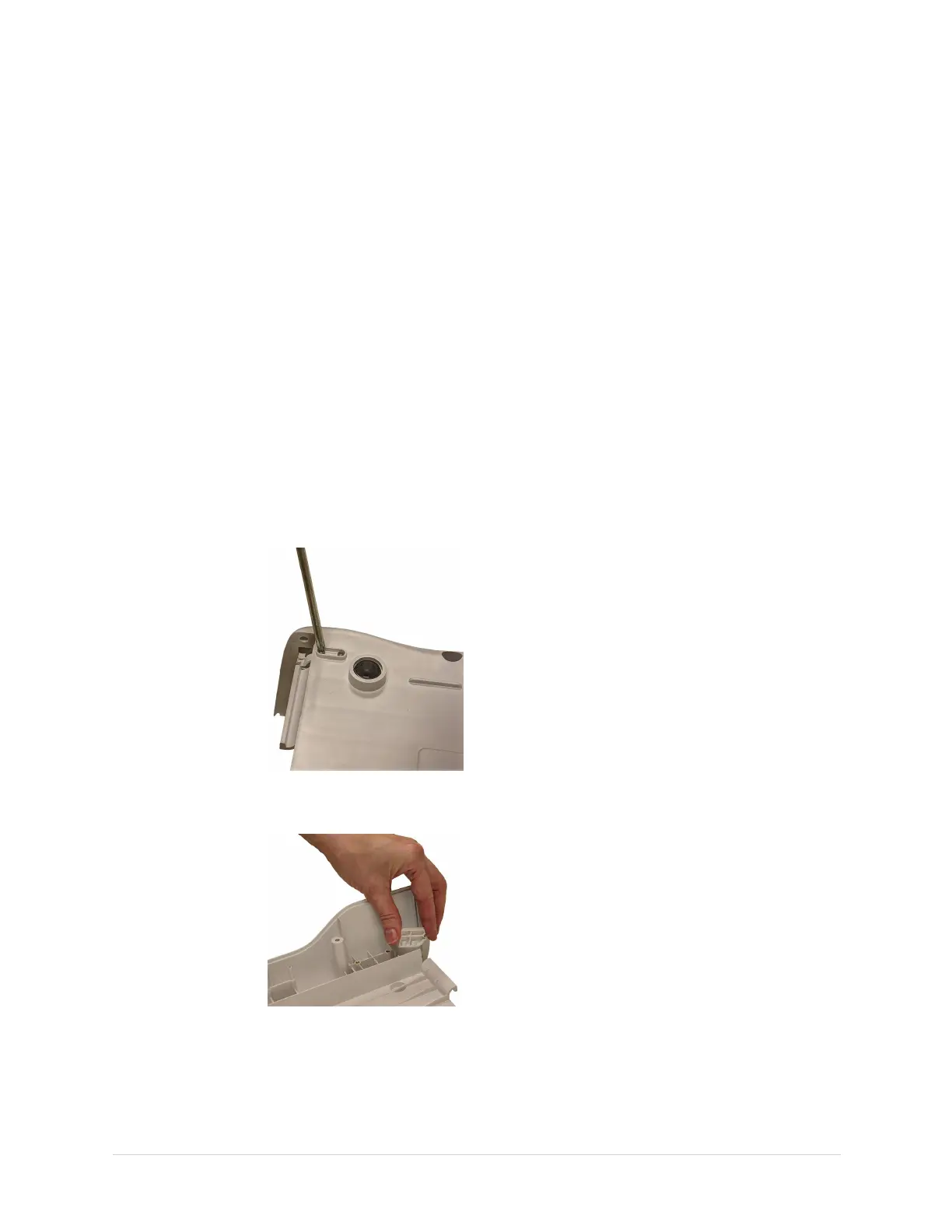

6.Removethefourscrewssecuringtheprinterdoortothebottomcover,asshown
inthefollowingphotograph.
7.Turnthebottomcoveroverandremovethedampersontheeithersideofthe
printerdoor,asshowninthefollowingphotograph.
