Maintenance
RefertoChapter10,StressTesting,intheMAC™2000ECGAnalysisSystem
Operator’sManualformoreinformation.
DiagnosticChecks
7.
Conductthedisplaytestandverifythetestwaspassedsuccessfully.
See“TestingtheDisplay”onpage47formoreinformation.
8.
Conductthekeypadtestandverifythetestwaspassedsuccessfully.
See“TestingtheKeypad”onpage50formoreinformation.
9.
Conductthewritertestandverifythetestwaspassedsuccessfully.
See“TestingtheWriter”onpage52formoreinformation.
10.
Conducttheacquisitionmoduletestandverifythetestwaspassedsuccessfully.
See“TestingtheAcquisitionModule”onpage51formoreinformation.
11.
Testthepatientleadwiresandverifythetestwaspassedsuccessfully.
See“TestingthePatientLeadwires”onpage59formoreinformation.
12.
Checkthebatterystatusandverifythebatteryissufcientlycharged.
See“CheckingtheBatteryStatus”onpage51formoreinformation.
13.
ConducttheLANtestandverifythetestwaspassedsuccessfully.
See“TestingtheLANOption”onpage56formoreinformation.
14.
Conductthemodemtestandverifythetestwaspassedsuccessfully.
See“TestingtheInternalModem”onpage57formoreinformation.
ElectricalSafetyChecks
15.
Conductacurrentleakagetestandverifythetestresultsmeetrequirements.

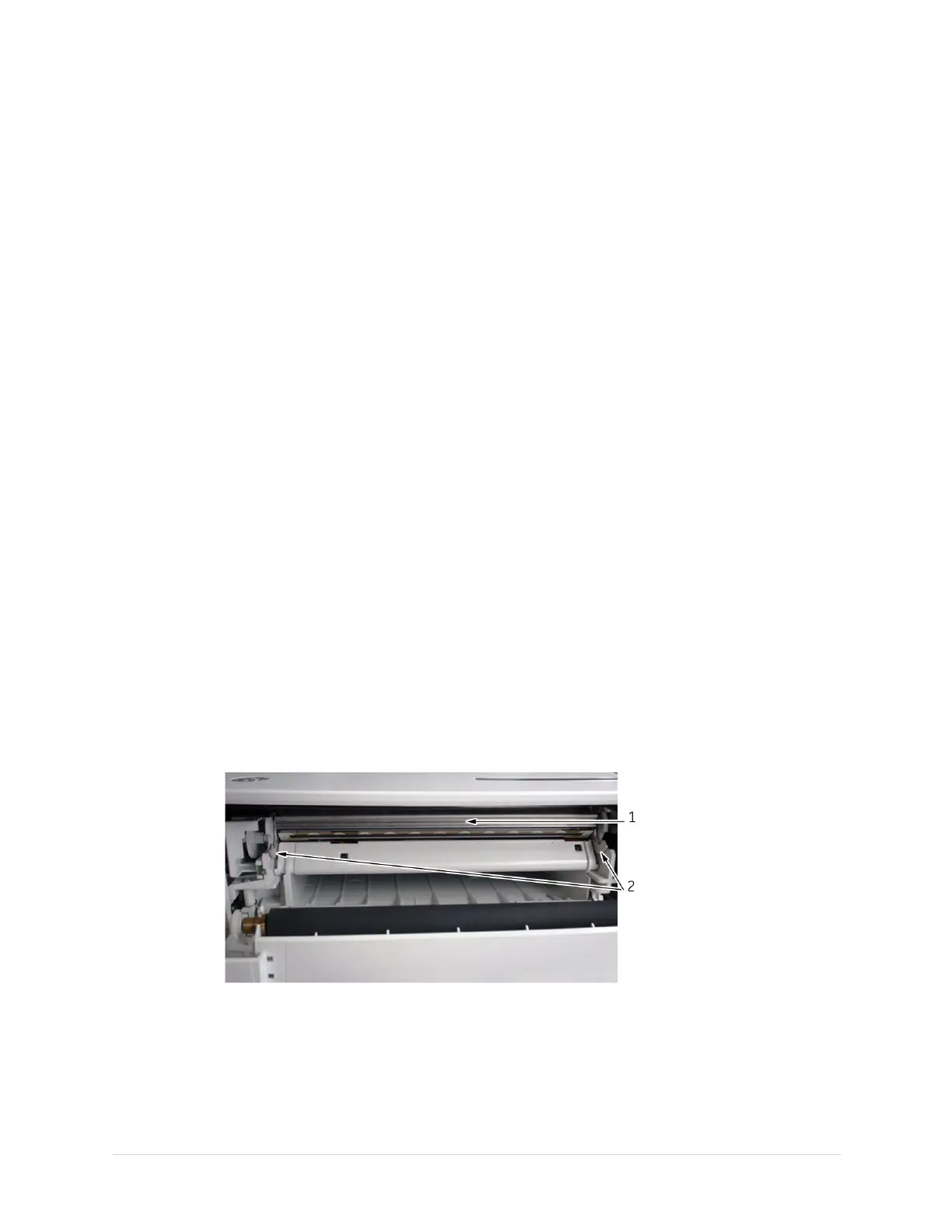

Thegroundpointiseithertheprintheadholdermetalplate(1)ortheprinterroller
holder(2).Youcanaccessthesegroundpointswithoutdisassemblingthedevice.To
accesseithergroundpoint,opentheprinterdoor.
132
MAC™2000ECGAnalysisSystem
2053535-003C
