GE MAC 2000 - Page 87

Maintenance
5.Liftthepowersupply/KISSpumpbasefromthechassis.

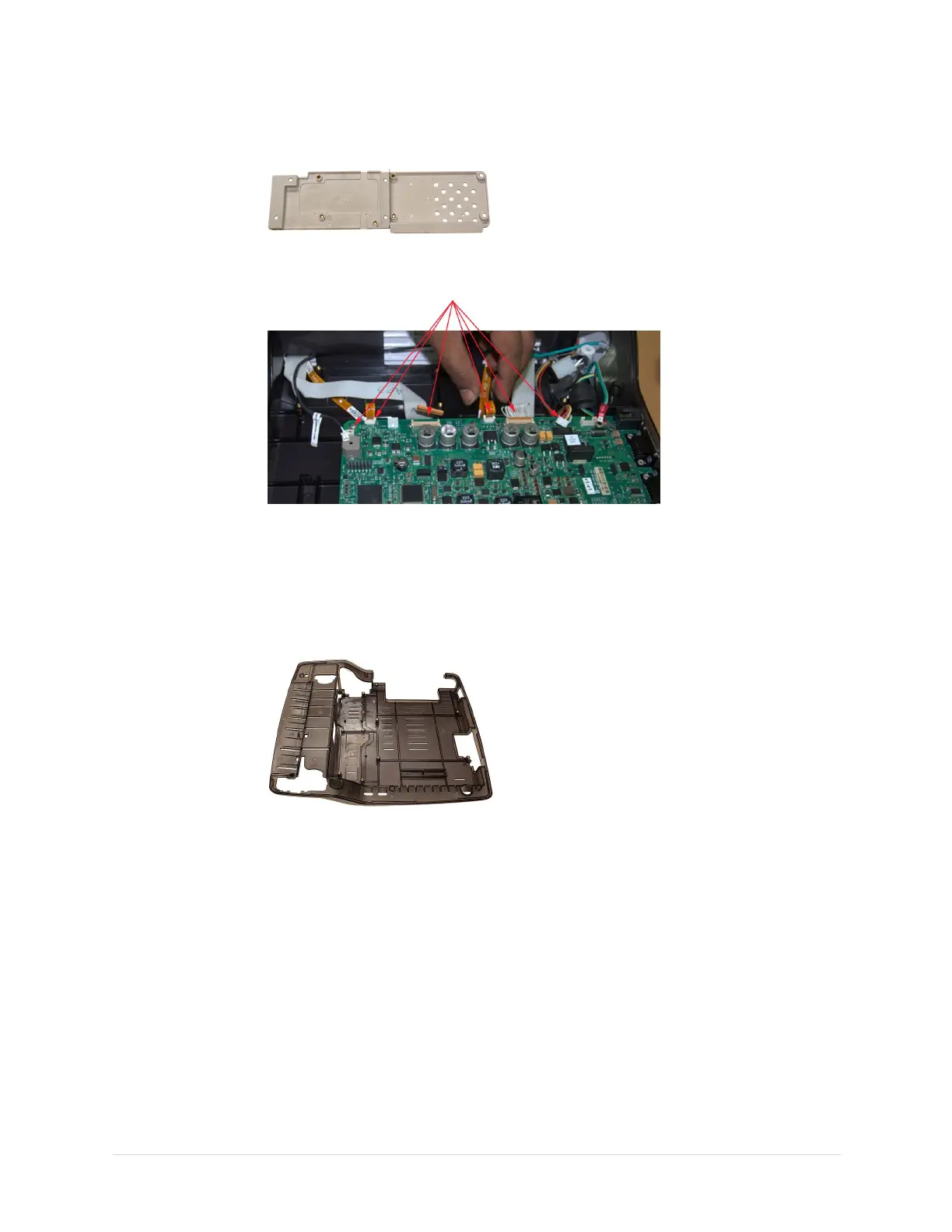

6.Disconnectthecablesandharnesses,identiedinthefollowingphotograph,
fromthePWA.
7.RemovethePWA.
See“PWA”onpage120formoreinformation.
8.Liftthechassisfromthebottomcover,carefullythreadingthecablesthrough
theslotsinthechassis.
Youhavenowremovedthechassisfromthebottomcover.
ReplacingtheChassis
UsethefollowingproceduretoreplacethechassisFRU.
1.Lowerthechassisontothebottomcover,carefullythreadingthecablesthrough
theslotsinthechassis.
2.ReattachthePWA.
See“PWA”onpage120formoreinformation.
2053535-003C
MAC™2000ECGAnalysisSystem
87
