Maintenance
3.Removetheprintermotorandgearassembly.
See“RemovingthePrinterMotorandGearAssembly”onpage95forinstructions.

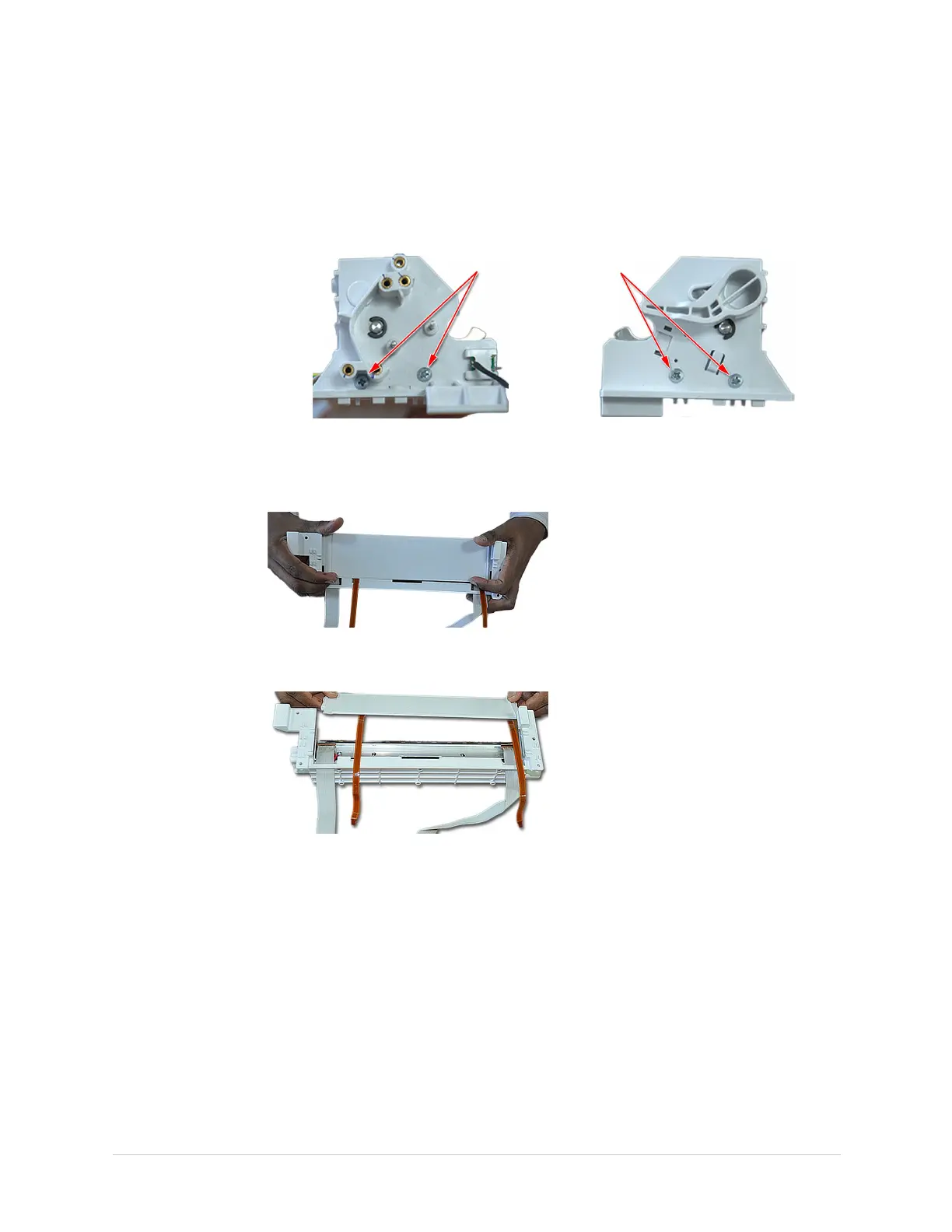

4.Removethetwofastenersoneachendoftheprintermoduleassembly,as
showninthefollowingphotographs.
5.Holdingeachendoftheprintermoduleassembly,gentlypushouttheend
piecesanduseyourmiddlengerstoslidethecrossbartowardyou,asshown
inthefollowingphotograph.
6.Afteritclearstheendpieces,removethecrossbarwiththetwopapersensors,
asshowninthefollowingphotograph.
ReplacingthePaperSensor
Usethefollowingproceduretoreplacethepapersensorontheprintermodule
assembly.
1.Positionthenewcrossbarwiththetwopapersensorsovertheprintermodule
assembly,asshowninthefollowingphotograph.
98
MAC™2000ECGAnalysisSystem
2053535-003C
